STMicroelectronics X-Nucleo-IHM Motor Controller for STM32 Nucleo Boards

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
106-5405
Mfr. Part No.:
X-NUCLEO-IHM09M1
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Power Management Function

Motor Controller

For Use With

STM32 Nucleo Boards

Kit Classification

Evaluation Board

Kit Name

X-Nucleo-IHM

COO (Country of Origin):
IT

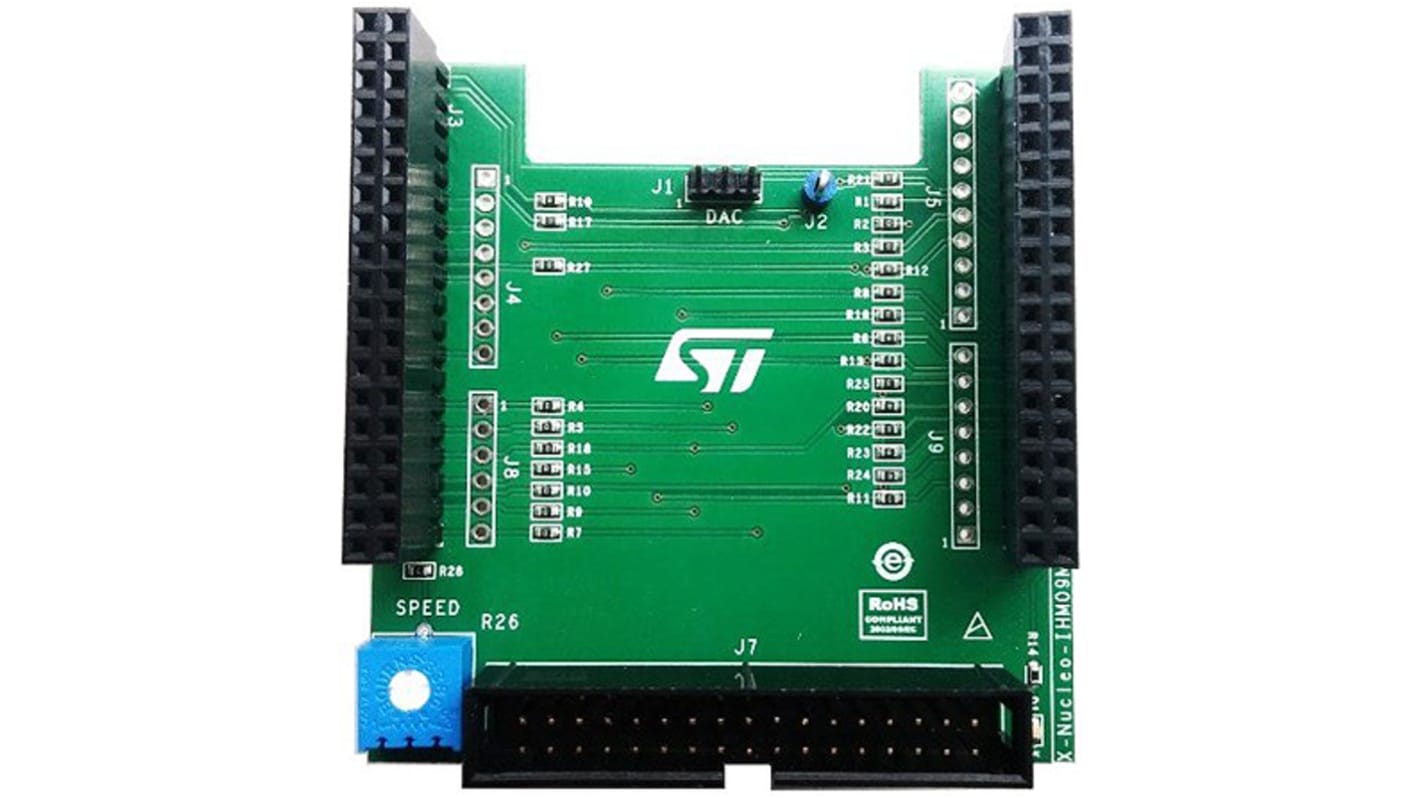

X-NUCLEO-IHM09M1 Motor Control Connector Expansion Board


The X-NUCLEO-IHM09M1 is a motor control connector expansion board for STM32 Nucleo development boards with a microcontroller. You can evaluate a three phase motor control by connecting an STM32 Nucleo board with this expansion board, through the ST morpho and motor control connector.

Motor control connector (34-pins) compatible with major STMicroelectronics motor control power boards
STM32 Nucleo boards interface support with the ST morpho connectors
Compatible with six-step and FOC motor control firmware library by ST
Debug connector for DAC, GPIO
Fully populated board conception with test points
LED for fault condition or status indication
Potentiometer available


Motor Controllers & Drivers, STMicroelectronics
