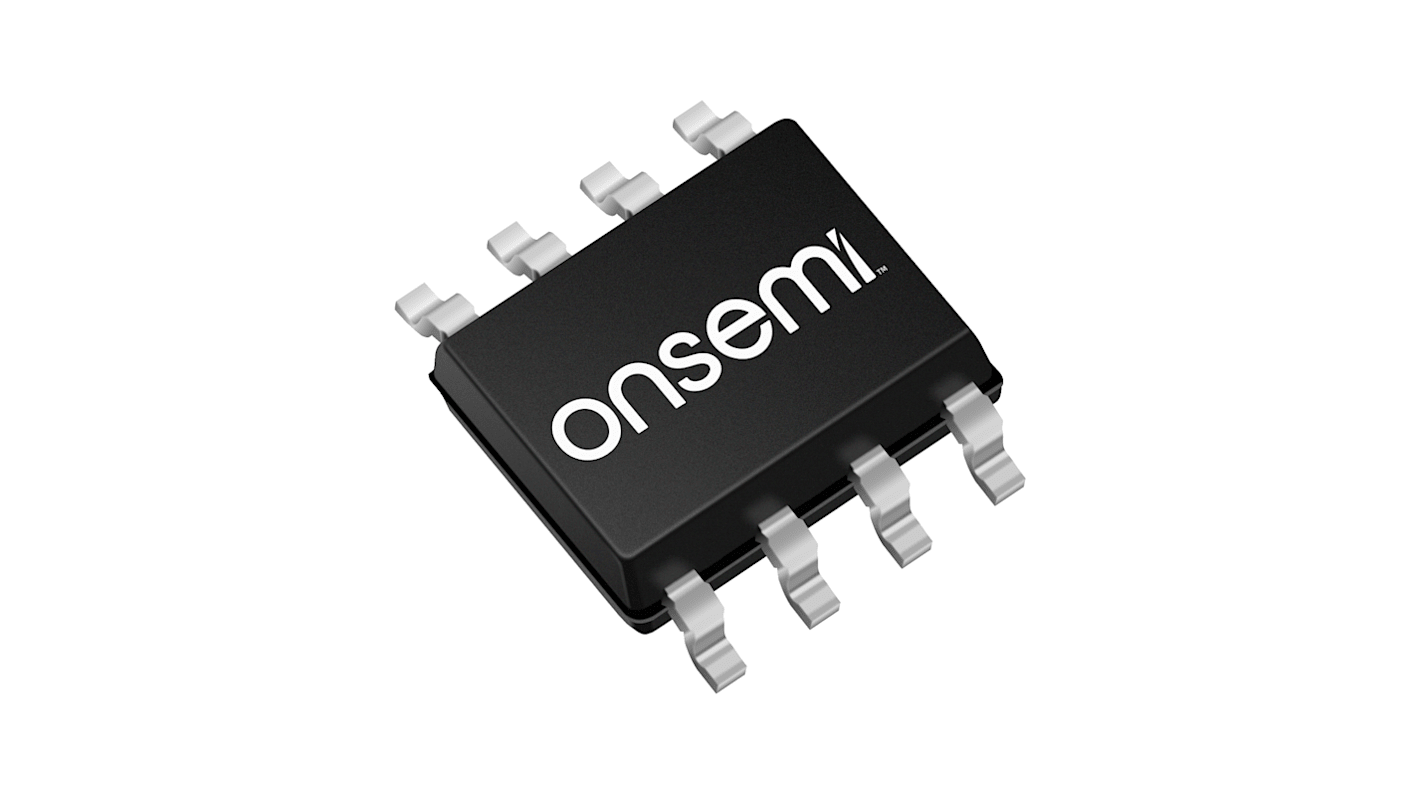

onsemi, Power Factor Controller IC 8-Pin, SOIC-8 11.25 V
- RS Stock No.:
- 254-7617
- Mfr. Part No.:
- NCP1623CDR2G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 reel of 2500 units)*
£867.50
(exc. VAT)
£1,040.00
(inc. VAT)
Add 2500 units to get free delivery
Temporarily out of stock
- Shipping from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 - 2500 | £0.347 | £867.50 |
| 5000 - 5000 | £0.34 | £850.00 |
| 7500 + | £0.333 | £832.50 |
*price indicative
- RS Stock No.:
- 254-7617
- Mfr. Part No.:
- NCP1623CDR2G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Power Factor Controller IC | |
| Start-up Supply Current | 50μA | |
| Sub Type | Power Factor Controller IC | |
| Maximum Source Current | 26.25μA | |
| Maximum Sink Current | 0.45μA | |
| Mount Type | Surface | |
| Package Type | SOIC-8 | |
| Minimum Supply Voltage | 9.75V | |
| Pin Count | 8 | |
| Maximum Supply Voltage | 11.25V | |
| Minimum Operating Temperature | -40°C | |
| Width | 4 mm | |
| Length | 5mm | |
| Height | 1.75mm | |
| Standards/Approvals | JEDEC | |
| Series | NCP1623 | |
| Maximum Operating Temperature | 125°C | |
| Automotive Standard | AEC-Q2, AEC-Q3, AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Power Factor Controller IC | ||
Start-up Supply Current 50μA | ||
Sub Type Power Factor Controller IC | ||
Maximum Source Current 26.25μA | ||
Maximum Sink Current 0.45μA | ||
Mount Type Surface | ||
Package Type SOIC-8 | ||
Minimum Supply Voltage 9.75V | ||
Pin Count 8 | ||
Maximum Supply Voltage 11.25V | ||
Minimum Operating Temperature -40°C | ||
Width 4 mm | ||
Length 5mm | ||
Height 1.75mm | ||
Standards/Approvals JEDEC | ||
Series NCP1623 | ||
Maximum Operating Temperature 125°C | ||
Automotive Standard AEC-Q2, AEC-Q3, AEC-Q100 | ||
The ON Semiconductor NCP series of a controller designed to drive PFC boost stages which is based on an innovative valley synchronized frequency fold back method, it operates in critical conduction mode until the power drops below a threshold level. The PFC controller enters discontinuous conduction mode with increased dead-time as the load further decay. It maximizes the efficiency at both nominal and light loads.
Maximizes the efficiency at both nominal and light loads
Power factor correction
Zero current detection via drain sensing
