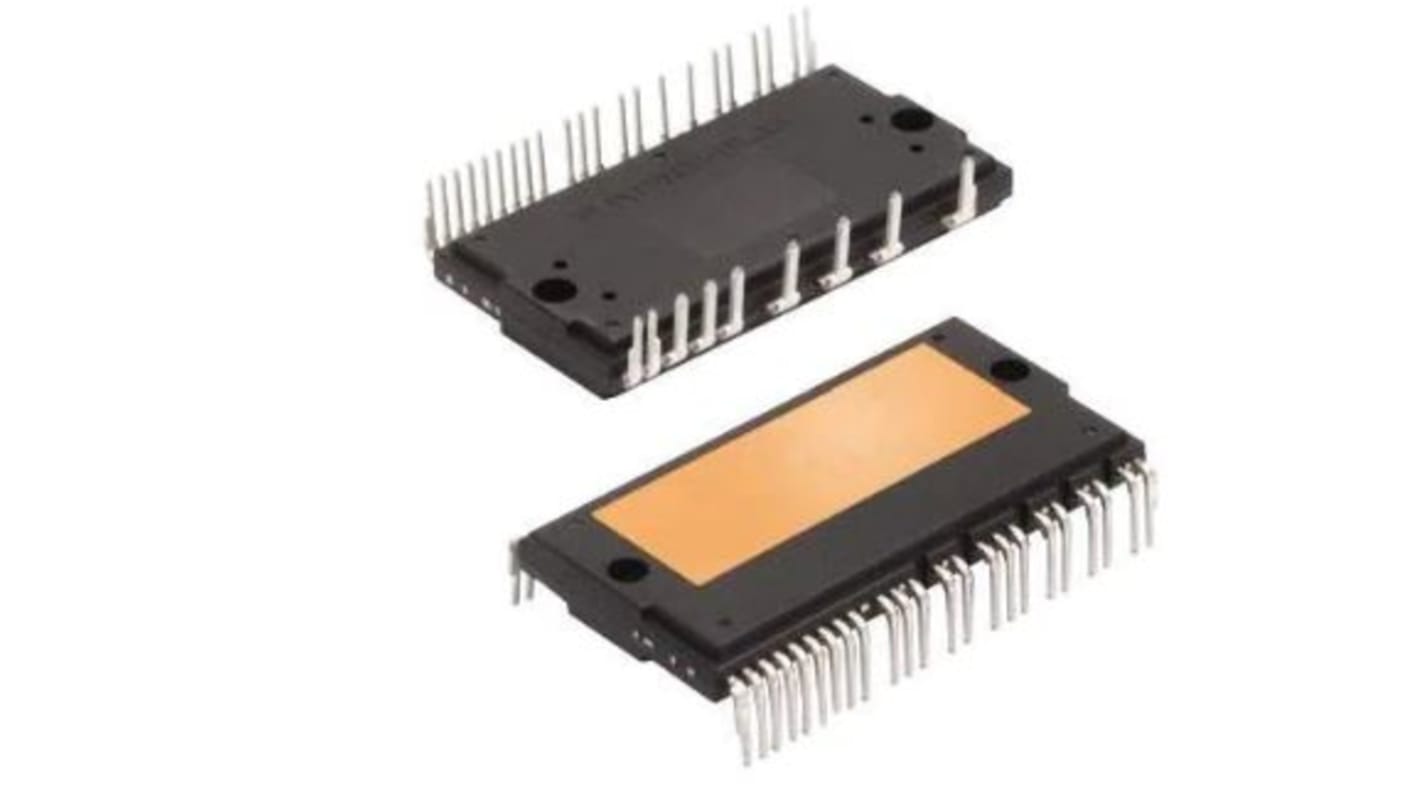

onsemi, Power Factor Pre-Regulator Circuit IC 20 kHz 32-Pin, S32EA 253 Vrms
- RS Stock No.:
- 181-1882
- Mfr. Part No.:
- FPAM30LH60
- Brand:
- onsemi
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 181-1882
- Mfr. Part No.:
- FPAM30LH60
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Power Factor Pre-Regulator Circuit IC | |
| Sub Type | Power Factor Pre-Regulator Circuit | |
| Maximum Sink Current | 1mA | |
| Switching Frequency | 20kHz | |
| Supply Current | 2.65mA | |
| Zero Power Detection | No | |
| Mount Type | Through Hole | |
| Package Type | S32EA | |
| Minimum Supply Voltage | 187Vrms | |
| Pin Count | 32 | |
| Maximum Supply Voltage | 253Vrms | |
| Minimum Operating Temperature | -40°C | |
| Width | 31.5 mm | |
| Series | FPAM30LH | |
| Height | 7.3mm | |
| Standards/Approvals | No | |
| Length | 60.5mm | |
| Maximum Operating Temperature | 125°C | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Power Factor Pre-Regulator Circuit IC | ||
Sub Type Power Factor Pre-Regulator Circuit | ||
Maximum Sink Current 1mA | ||
Switching Frequency 20kHz | ||
Supply Current 2.65mA | ||
Zero Power Detection No | ||
Mount Type Through Hole | ||
Package Type S32EA | ||
Minimum Supply Voltage 187Vrms | ||
Pin Count 32 | ||
Maximum Supply Voltage 253Vrms | ||
Minimum Operating Temperature -40°C | ||
Width 31.5 mm | ||
Series FPAM30LH | ||
Height 7.3mm | ||
Standards/Approvals No | ||
Length 60.5mm | ||
Maximum Operating Temperature 125°C | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The FPAM30LH60 is a PFC SPM® 2 module providing a fully-featured, high-performance Interleaved PFC (Power Factor Correction) input power stage for consumer, medical, and industrial applications. These modules integrate optimized gate drive of the built-in IGBTs to minimize EMI and losses, while also providing multiple on-module protection features including under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting. These modules also feature a fullwave rectifier and high-performance output diodes for additional space savings and mounting convenience.
600 V - 30 A 2-Phase Interleaved PFC with Integral Gate Driver and Protection
Very Low Thermal Resistance Using Al2O3 DBC Substrate
Full-Wave Bridge Rectifier and High-Performance Output Diode
Optimized for 20kHz Switching Frequency
Built-in NTC Thermistor for Temperature Monitoring
Isolation Rating: 2500 Vrms/min
Motion Control - Home Appliance/Industrial Motor
