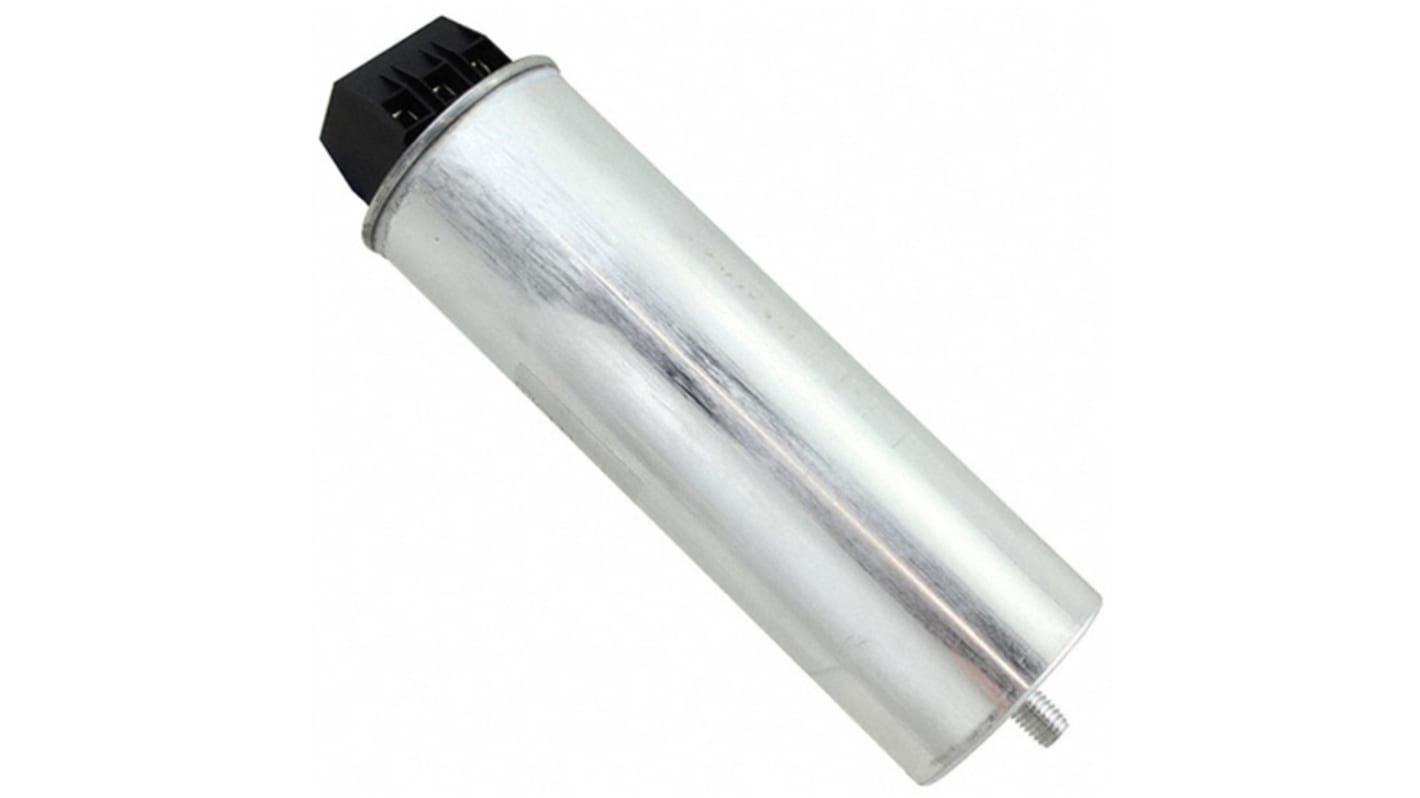

KEMET Power Factor Correction Capacitor (PFC) 3 x 83μF 15kvar 3
- RS Stock No.:
- 136-5119
- Mfr. Part No.:
- C9TS6MD5830AARX
- Brand:
- KEMET
Bulk discount available
Subtotal (1 box of 9 units)*
£551.43
(exc. VAT)
£661.68
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 18 unit(s) shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 9 - 9 | £61.27 | £551.43 |
| 18 + | £56.981 | £512.83 |
*price indicative
- RS Stock No.:
- 136-5119
- Mfr. Part No.:
- C9TS6MD5830AARX
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Number of Phases | 3 | |
| Tolerance Minus | -5% | |
| Width | 85mm | |
| kvar 50Hz | 15kvar | |
| Capacitance | 3 x 83µF | |
| Dielectric Material | Polypropylene | |
| Maximum Operating Temperature | +55°C | |
| Voltage | 440V ac | |
| Minimum Operating Temperature | -25°C | |
| Series | C9T | |
| Mounting Type | Stud Mount | |
| Height | 230mm | |
| Terminal Type | Screw Clamp | |
| Tolerance Plus | +10% | |
Select all | ||
|---|---|---|
Brand KEMET | ||
Number of Phases 3 | ||
Tolerance Minus -5% | ||
Width 85mm | ||
kvar 50Hz 15kvar | ||
Capacitance 3 x 83µF | ||
Dielectric Material Polypropylene | ||
Maximum Operating Temperature +55°C | ||
Voltage 440V ac | ||
Minimum Operating Temperature -25°C | ||
Series C9T | ||
Mounting Type Stud Mount | ||
Height 230mm | ||
Terminal Type Screw Clamp | ||
Tolerance Plus +10% | ||
- COO (Country of Origin):
- BG
KEMET C9T Series PFC Capacitors
KEMET C9T aluminum can capacitors are 3 phase capacitors for power factor correction (PFC). KEMET C9T 415/440 V ac rated voltage capacitors feature polypropylene metallised film and include an overpressure safety device. C9T PFC capacitors are also available with delta connections. These KEMET capacitors offer high capacitance density and a long lifetime. 27.4 μF to 154μF capacitance value, 415 VAC or 440 VAC voltage rating, 9 to 45A rated current.
Features
Polypropylene metallised film with cylindrical aluminium can type
Overpressure safety device
High capacitance density
Available with delta connections
Overpressure safety device
High capacitance density
Available with delta connections
Applications
Power Factor Correction
