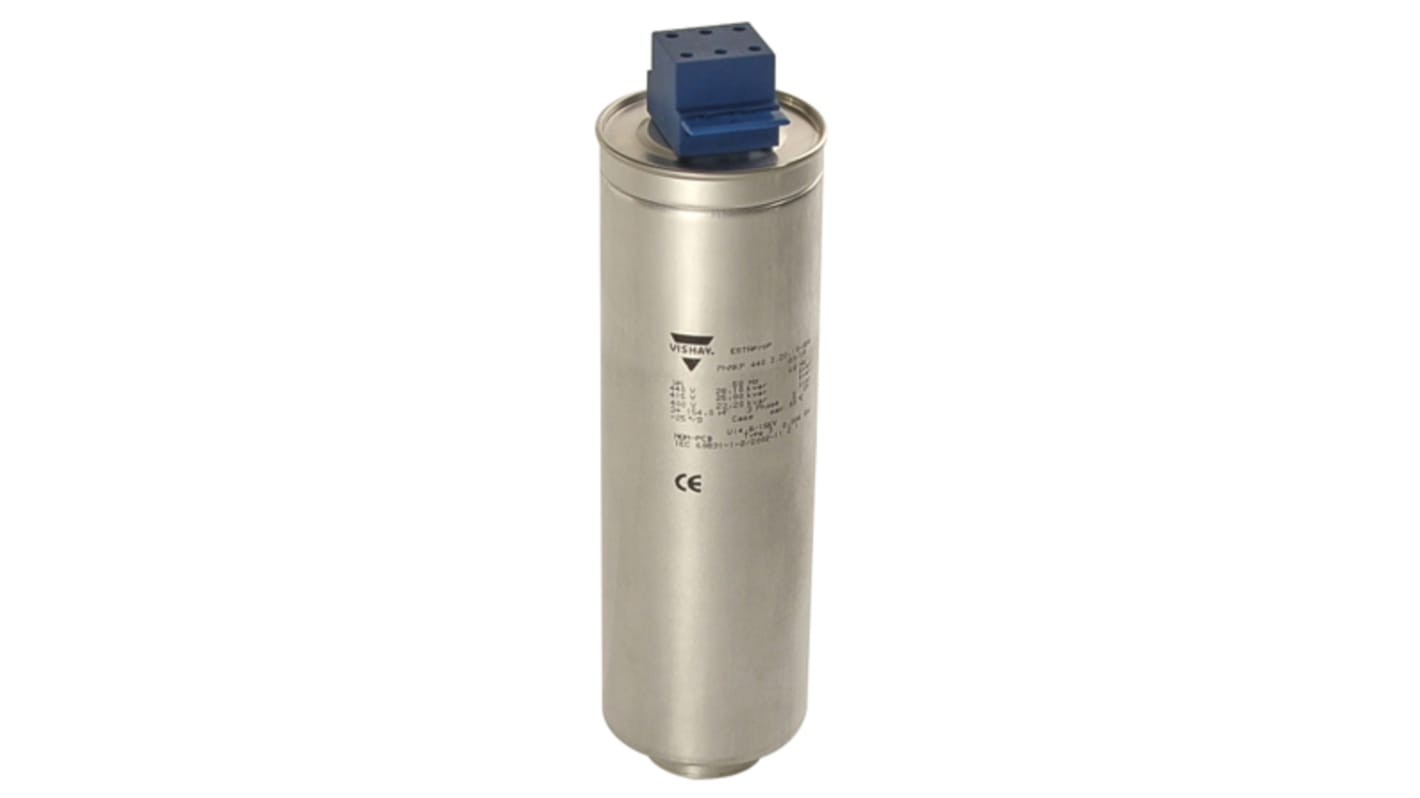

Vishay Power Factor Correction Capacitor (PFC) 3 x 154μF 28.1kvar 21.4kvar 3
- RS Stock No.:
- 135-3616
- Mfr. Part No.:
- PhMKP440.3.28,10-S84
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Box of 4)
£135.67
(exc. VAT)
£162.80
(inc. VAT)
- RS Stock No.:
- 135-3616
- Mfr. Part No.:
- PhMKP440.3.28,10-S84
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Maximum Operating Temperature | +65°C | |
| Dielectric Material | Polypropylene | |
| Voltage | 525V ac | |
| Capacitance | 3 x 154µF | |
| kvar 50Hz | 28.1kvar | |
| Series | phMKP | |
| Mounting Type | Screw Mount | |
| Height | 265mm | |
| Number of Phases | 3 | |
| Tolerance Minus | -5% | |
| Width | 84.4mm | |
| kvar 60Hz | 21.4kvar | |
| Weight | 1.7kg | |
| Terminal Type | Screw | |
| Tolerance Plus | +5% | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Maximum Operating Temperature +65°C | ||
Dielectric Material Polypropylene | ||
Voltage 525V ac | ||
Capacitance 3 x 154µF | ||
kvar 50Hz 28.1kvar | ||
Series phMKP | ||
Mounting Type Screw Mount | ||
Height 265mm | ||
Number of Phases 3 | ||
Tolerance Minus -5% | ||
Width 84.4mm | ||
kvar 60Hz 21.4kvar | ||
Weight 1.7kg | ||
Terminal Type Screw | ||
Tolerance Plus +5% | ||
- COO (Country of Origin):
- CZ
Vishay PhMKP Series
The Vishay ESTA PhMKP series of power factor correction capacitors in cylindrical aluminium casing provide high kVAR / voltage combinations for use in low-voltage systems. The Vishay ESTA PhMKP capacitors are suitable for use in both standard PFC applications and in heavy-duty applications such as wind turbines.
The Vishay ESTA PhMKP capacitors are metallized polypropylene film capacitors with self-healing properties. The current carrying metal layer of an MKP capacitor is vaporised onto one side of the polypropylene film. Three winding elements are encapsulated in one aluminium casing and connected to form a true 3-phase capacitor.
The Vishay ESTA PhMKP capacitors are metallized polypropylene film capacitors with self-healing properties. The current carrying metal layer of an MKP capacitor is vaporised onto one side of the polypropylene film. Three winding elements are encapsulated in one aluminium casing and connected to form a true 3-phase capacitor.
Features
Self-healing
Over pressure tear off fuse
Excellent heat dissipation
Over pressure tear off fuse
Excellent heat dissipation
