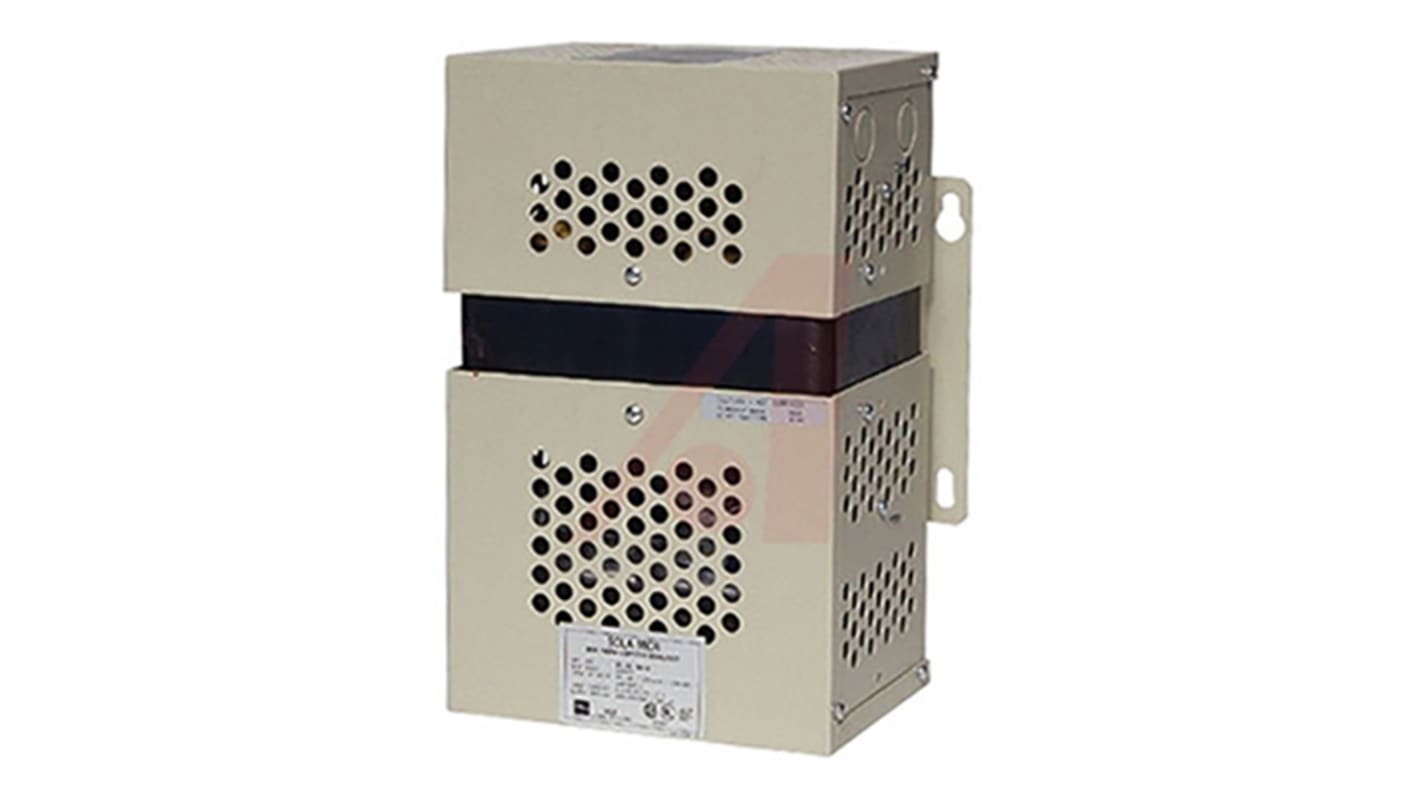

SolaHD Power Conditioner 120V Harmonic Filtering, Over Load, 60VA Wire Lead, Panel Mount

  • RS Stock No. 890-8583
  • Mfr. Part No. 23-13-060-2
  • Brand SolaHD
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

SolaHD Constant Voltage Transformers - CVS Series

CVS Series of ferroresonant transformer technology from SolaHD. The CVS series are voltage regulation devices for industrial applications where precise voltage regulation is required. The transformer is ideal for applications where even a small change in voltage level can lead to unscheduled downtime, mis-operation, incorrect data or scrapped production. CSV Series filter devices filter harmonics, protecting facility wiring and sensitive electrical loads from over-heating. Typical applications include: Industrial automation and control equipment PLCs, analytical laboratory and factory automating equipment, photo processing equipment, sound/recording systems, photographic enlargers and broadcast equipment.

Superior voltage regulation of ±1%
Surge protection tested to ANSI/IEEE C62.41, Class A & B waveform
Harmonic filtering
Hardwired
Acts as a step-up/step-down transformer
Galvanic isolation provides exceptional circuit protection
No maintenance required
Listed - UL 1012 - CSA C22.2 No. 66
RoHS Compliant

Specifications
Attribute Value
Input Voltage 120V
Output Voltage 120V
Output Power 60VA
Number of Outlets 1
Mounting Type Panel Mount
Maximum Operating Frequency 60Hz
Maximum Temperature +50°C
Minimum Temperature -20°C
Overall Dimensions 101.6 x 127 x 177.8mm
Overall Width 127mm
Overall Depth 177.8mm
Protection Type Harmonic Filtering, Over Load
Electrical Phase 1
Terminal Contact Type Wire Lead
Standards Met CULus Listed, RoHS Compliant
Overall Length 101.6mm
