RS PRO 10 mm² 3 Core Armoured Cable Polyvinyl Chloride PVC
- RS Stock No.:
- 777-0494
- Brand:
- RS PRO

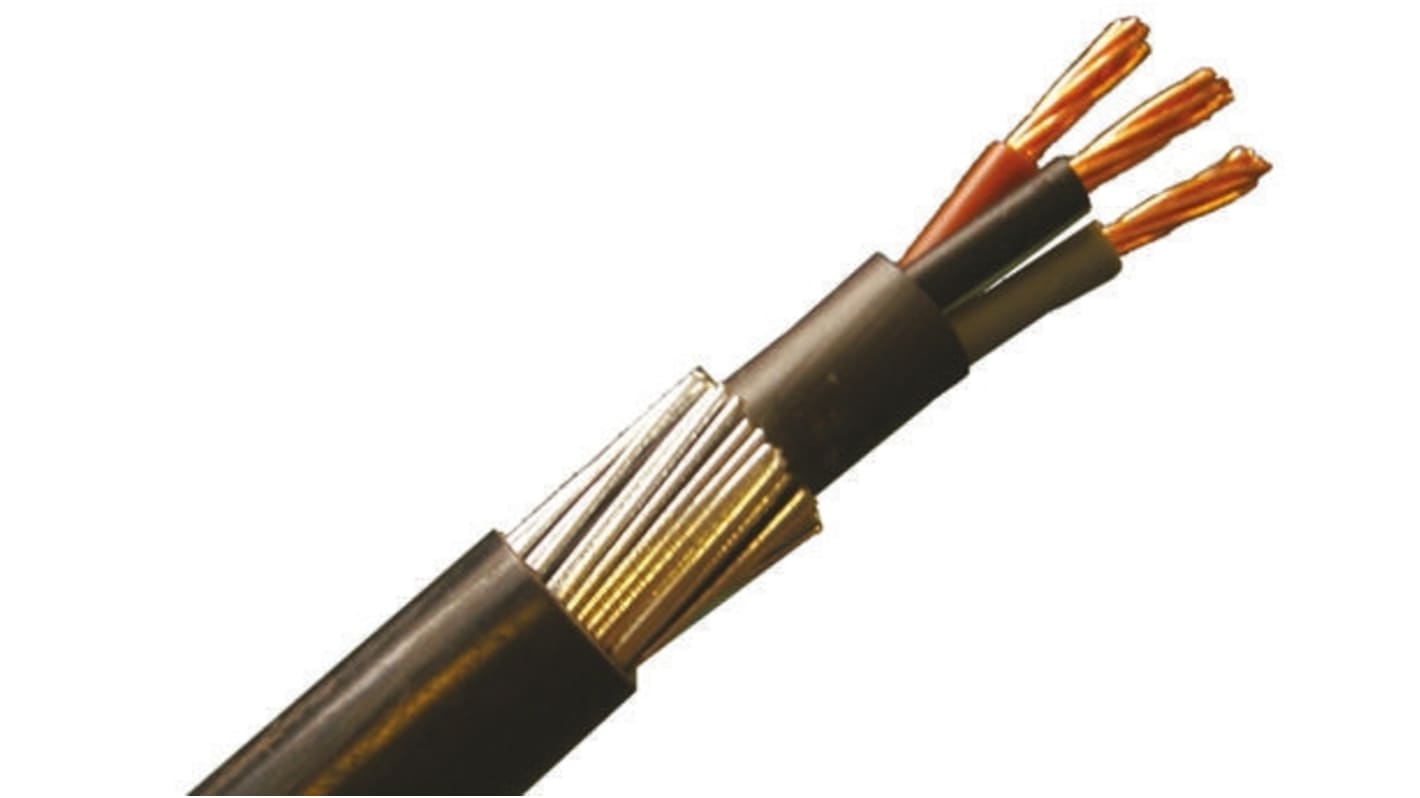

Image representative of range
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50 Metre(s)
£776.47
(exc. VAT)
£931.76
(inc. VAT)
- RS Stock No.:
- 777-0494
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 10 mm² | |
| Number of Cores | 3 | |
| Current Rating | 78 A | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Outer Diameter | 18.9mm | |
| Voltage Rating | 1 kV, 600 V | |
| Conductor Strand Type | Stranded | |
| Conductor Resistance | 1.83 Ω/km | |
| Insulation Material | PEX | |
| Conductor Material | Annealed Copper | |
| Standards Met | Euroclass Eca | |
| Cable Shape | Multicore | |
| Maximum Operating Temperature | +90°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 10 mm² | ||
Number of Cores 3 | ||
Current Rating 78 A | ||
Sheath Material Polyvinyl Chloride PVC | ||
Outer Diameter 18.9mm | ||
Voltage Rating 1 kV, 600 V | ||
Conductor Strand Type Stranded | ||
Conductor Resistance 1.83 Ω/km | ||
Insulation Material PEX | ||
Conductor Material Annealed Copper | ||
Standards Met Euroclass Eca | ||
Cable Shape Multicore | ||
Maximum Operating Temperature +90°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
