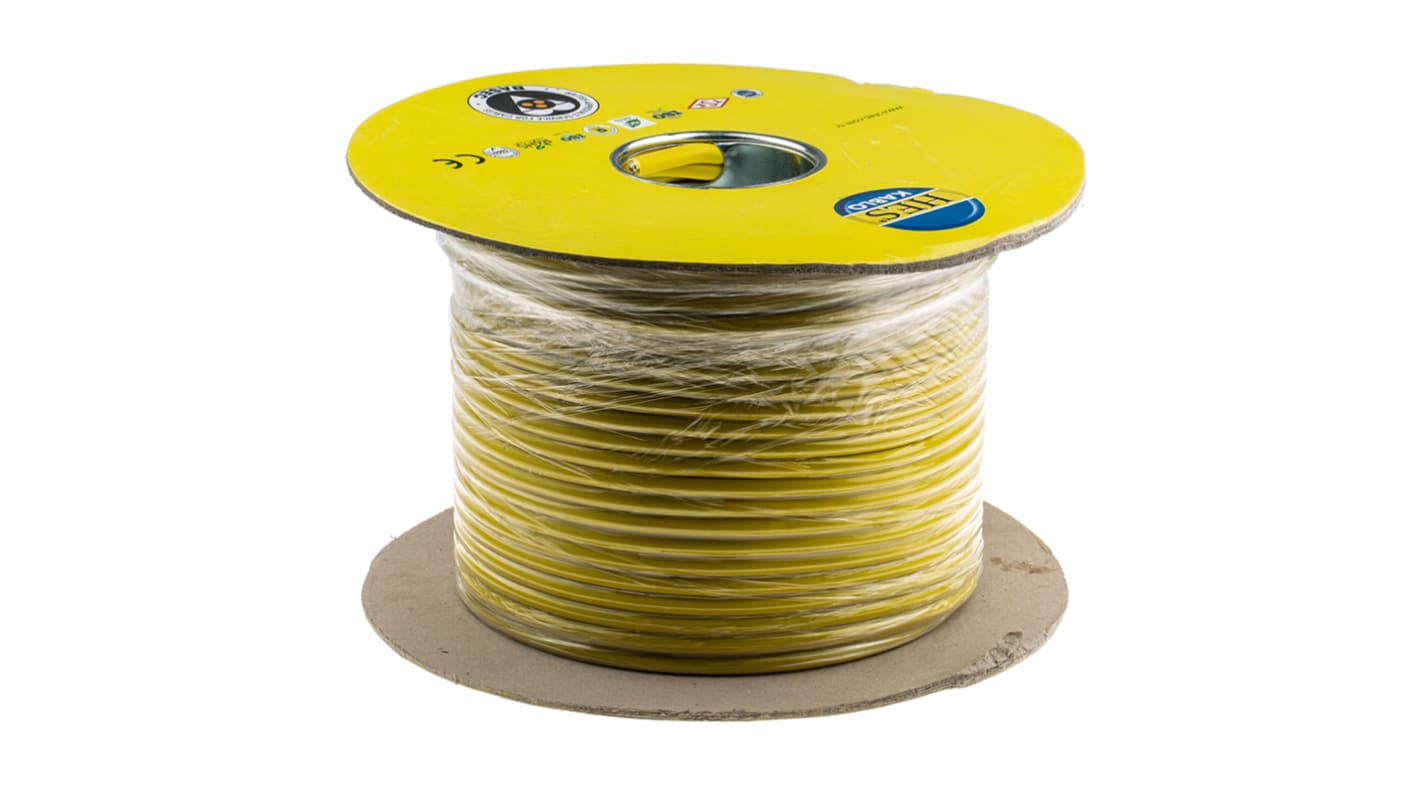

RS PRO 1.5 mm² 3 Core Power Cable, Yellow Polyvinyl Chloride PVC, 100m
- RS Stock No.:
- 776-1976
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£164.26
(exc. VAT)
£197.11
(inc. VAT)
- RS Stock No.:
- 776-1976
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 1.5 mm² | |
| Number of Cores | 3 | |
| Sheath Colour | Yellow | |
| Length | 100m | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Outer Diameter | 8.2mm | |
| Voltage Rating | 300 V, 500 V | |
| Conductor Strand Type | Stranded | |
| Maximum Operating Temperature | +70°C | |
| Conductor Material | Copper | |
| Minimum Operating Temperature | -20°C | |
| Insulation Material | Arctic Grade PVC | |
| Standards Met | Euroclass Eca | |
| American Wire Gauge | 15 AWG | |
| Conductor Resistance | 13.3 W/km | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 1.5 mm² | ||
Number of Cores 3 | ||
Sheath Colour Yellow | ||
Length 100m | ||
Sheath Material Polyvinyl Chloride PVC | ||
Outer Diameter 8.2mm | ||
Voltage Rating 300 V, 500 V | ||
Conductor Strand Type Stranded | ||
Maximum Operating Temperature +70°C | ||
Conductor Material Copper | ||
Minimum Operating Temperature -20°C | ||
Insulation Material Arctic Grade PVC | ||
Standards Met Euroclass Eca | ||
American Wire Gauge 15 AWG | ||
Conductor Resistance 13.3 W/km | ||
- COO (Country of Origin):
- CN
Arctic Grade Cable
Features and Benefits
3 core 300/500V
Cores: Blue/brown/green-yellow
Complies fully with the requirements of BS6500
Temperature Range: -20°C to 70°C
Note
The number of strands used in the construction of the cores is nominal and may vary.
