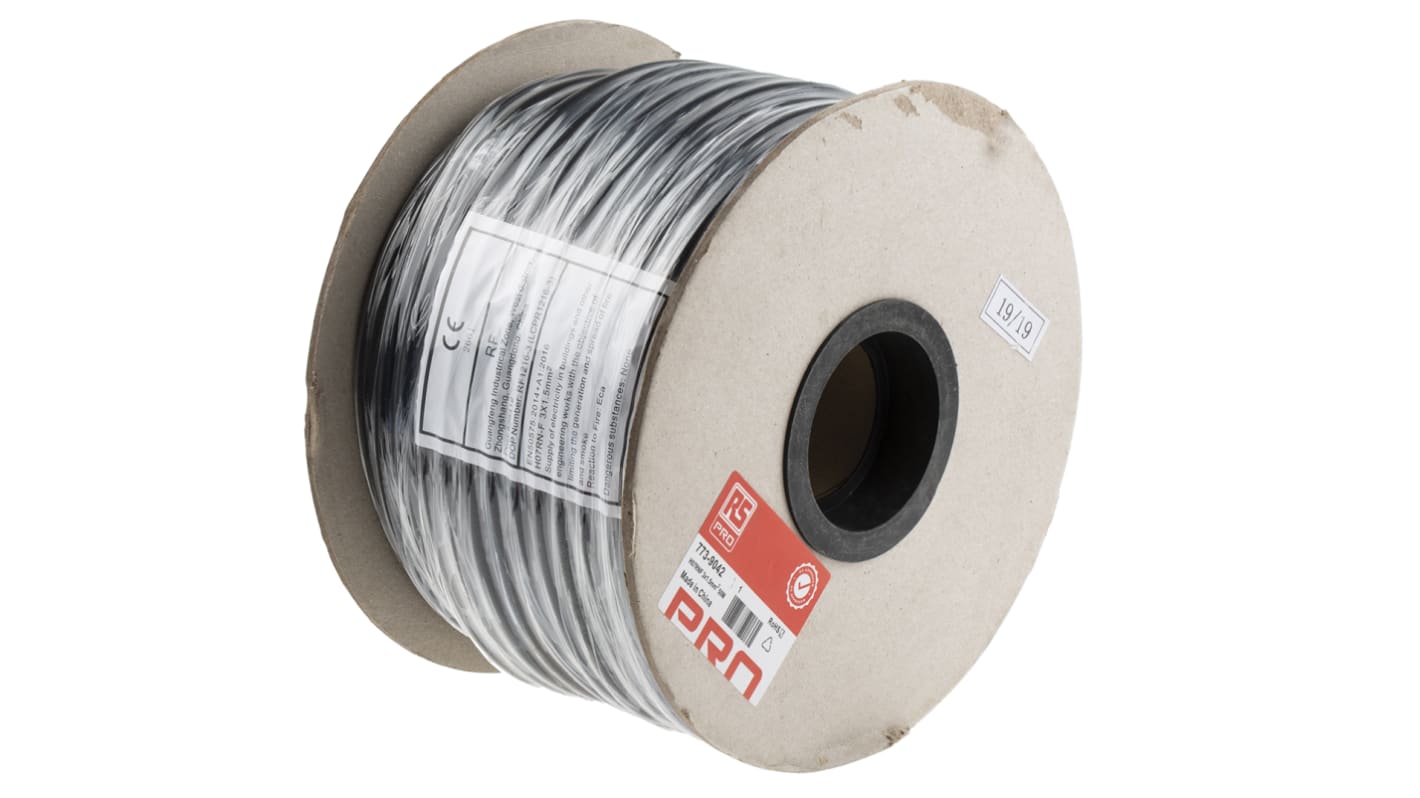

RS PRO 1.5 mm² 3 Core Power Cable, H07RN-F, Black CPE, 50m
- RS Stock No.:
- 773-9042
- Distrelec Article No.:
- 303-91-204
- Brand:
- RS PRO
Subtotal (1 reel of 50 metres)*
£123.04
(exc. VAT)
£147.65
(inc. VAT)
FREE delivery for orders over £50.00
- Plus 335 unit(s) shipping from 22 October 2025
- Plus 47 unit(s) shipping from 22 October 2025
- Plus 108 unit(s) shipping from 09 March 2026
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £123.04 | £2.461 |
*price indicative
- RS Stock No.:
- 773-9042
- Distrelec Article No.:
- 303-91-204
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Cross Sectional Area | 1.5 mm² | |
Number of Cores | 3 | |
Sheath Colour | Black | |
Length | 50m | |
Current Rating | 18 A | |
Sheath Material | CPE | |
CPR Certification | Eca | |
Outer Diameter | 10.1mm | |
Voltage Rating | 450 V, 750 V | |
European Harmonised Code | H07RN-F | |
Conductor Strand Type | Stranded | |
Number of Strands | 30 | |
Minimum Operating Temperature | -25°C | |
Standards Met | VDE 0285-525-2-21 | |
Conductor Resistance | 13.3 Ω/km | |
American Wire Gauge | 15 AWG | |
Fire Behaviour | Flame Retardant | |
Insulation Material | EPR | |
Core Strands | 30/0.24 mm | |
Size of Strands | 0.24 mm | |
Maximum Operating Temperature | +60°C | |
Conductor Material | Copper | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Cross Sectional Area 1.5 mm² | ||
Number of Cores 3 | ||
Sheath Colour Black | ||
Length 50m | ||
Current Rating 18 A | ||
Sheath Material CPE | ||
CPR Certification Eca | ||
Outer Diameter 10.1mm | ||
Voltage Rating 450 V, 750 V | ||
European Harmonised Code H07RN-F | ||
Conductor Strand Type Stranded | ||
Number of Strands 30 | ||
Minimum Operating Temperature -25°C | ||
Standards Met VDE 0285-525-2-21 | ||
Conductor Resistance 13.3 Ω/km | ||
American Wire Gauge 15 AWG | ||
Fire Behaviour Flame Retardant | ||
Insulation Material EPR | ||
Core Strands 30/0.24 mm | ||
Size of Strands 0.24 mm | ||
Maximum Operating Temperature +60°C | ||
Conductor Material Copper | ||
- COO (Country of Origin):
- CN
RS PRO H07RN-F Harmonised Rubber Insulated Mains Cable
What is Mains Cable?
Cable Construction
What Does H07RN-F Mean?
H07RN-F is the code for this harmonised cable which breaks down into the following:
H = Harmonised
07 = 450 / 750 voltage rating
R = Natural or synthetic rubber insulation
N = Chloroprene or polychloroprene rubber sheath
F = Flexible copper conductors
Benefits of Rubber Insulated Mains Cable
Durable and long lasting
High resistance to abrasion
Good weathering stability
Good tensile strength
Flame resistant and and self extinguishing
Resistance to oils and other chemicals
Where are These Cables Used?
Transportable motors
Generators
Heating plates
Boilers
Lighting
Household appliances
Industrial equipment
Power and control applications
Distribution and power networks
Standards
RS PRO H07RN-F Harmonised Flexible EPR Insulated Mains Cable
We are proudly introducing our own branded RS PRO H07RN-F Harmonised Flexible EPR Insulated Mains Cable characterising of high dielectric strength and above-average ozone and weathering resistance. The conductor material used is bare stranded copper, providing the highest electrical conductivity of all non-precious metals.
The copper's natural Power Cable makes it easy to work with thanks to the ability to bend or twist without breaking the material. The material is safe during installation, which will find appreciation by electricians while installing copper wire. Another advantage is that no special tools are needed, meaning less time to absorb your day.
There are no surprises as to where the Electrical Mains Cable supply serves. This flexible Cable has a voltage rating of 450 V up to 750 V making it perfect solutions for use in medium-duty domestic and light industrial appliances.
The EPR Mains Power Cable has a medium thermal range in the region of -25°C up to +60°C. The sheath is one of the few polymers that come both as thermoplastic and thermoset jacket. This combination is making the CPE jacket resistant to weather /sun and flame, letting you make the use of the Cable almost everywhere.
The core of 3 wiring systems serves as Mains Cable power supplying electricity using a wall socket or an extension lead, which will then be plugged into a mains supply.
The copper conductor meets Eroclass Eca network Cable standards, giving you access to construction site projects where safety is vital.
Features and Benefits
- Meets Eca copper network Cable regulations, which is essential for any construction sites
- The core of 3 comes with EPR insulation parameters (high dielectric strength, excellent ozone and weathering resistance)
- The CPE sheath material is giving protection against heat or oil
- Copper provides flexibility and straight-forward installation process thanks to the natural ability to bend and twist and does not require any special tools during installation
- The Mains Power Cable minimum operating temperature oscillates around -25°C whereas the maximum operating temperature is up to +60°C
Applications
- Construction sites (public or private electrical line or wiring in power installation)
- Domestic use (sheds, garden office)
- Industrial sites (warehouse, back office)
- Electrical operating tools
- Construction lighting and machines
Frequently asked questions
In simple term, a Mains Cable, also known as Power Cord or Line Cord is an electric cable that temporarily connects an appliance to the mains electricity supply either by wall socket or extension cord.
