RS PRO High Temperature 0.75 mm² 3 Core Power Cable, White Silicone, 25m

View all Power Cable
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO High Temperature 0.75 mm² 3 Core Power Cable, White Silicone, 25m
RS Stock No.
210-1249

1 Reel of 25 Metre(s)

£39.05

(exc. VAT)

£46.86

(inc. VAT)

RS Stock No.:
744-0994
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

0.75 mm²

Number of Cores

3

Sheath Colour

White

Length

25m

Cable Type

High Temperature

Current Rating

6.5 A

Sheath Material

Silicone

Outer Diameter

7mm

Voltage Rating

450 V

Conductor Strand Type

Stranded

Conductor Resistance

26.7 Ω/km

American Wire Gauge

18 AWG

Standards Met

IEC EN 60228 Class 5, RoHS Compliant

Insulation Material

Silicone Rubber

Conductor Material

Copper

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+180°C

Core Strands

24/0.2 mm

Size of Strands

0.2 mm

Number of Strands

24

COO (Country of Origin):
CN

RS Pro High Temperature Silcone Insulated Mains Cable


From RS Pro a high quality 3 core flexible mains power cable with a silicone rubber sheath designed for use in high-temperature applications.

What is Mains Cable?


Mains power cable connects an appliance to a mains electricity supply through the use of a wall socket or an extension lead which will then be plugged into a mains supply

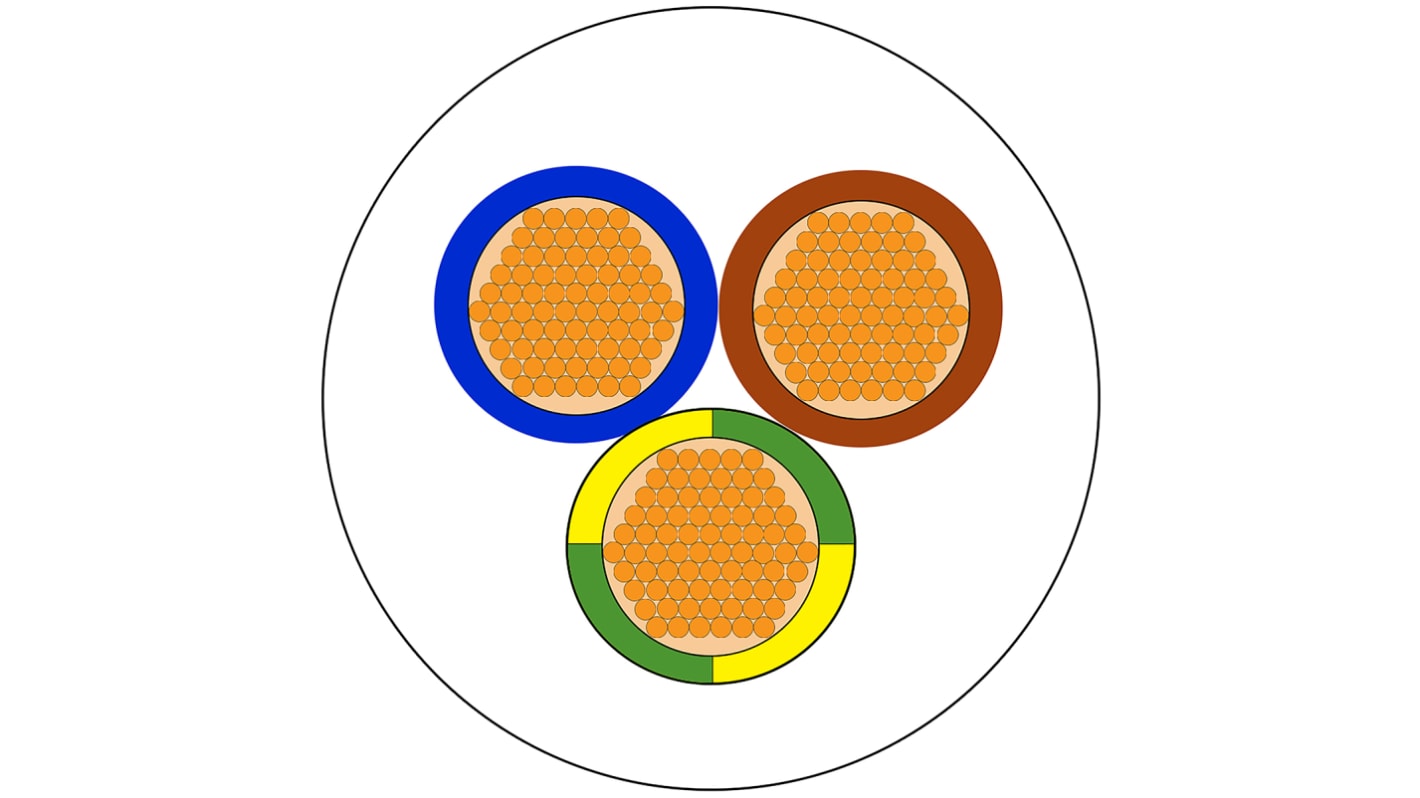

Cable Construction


This flexible cable consists of 3 cores made up of annealed tinned copper conductors or wires. Each individual core is surrounded by colour coded silicone rubber insulation for easy identification of the wire, earth, neutral and live. All 3 cores are then surrounded by a final layer of silicone rubber insulation called the sheath. This cable is made in conformance to standards class 5 as per IEC60228

Benefits of Silicone Insulated Mains Cable


Silicone insulation has an outstanding thermal range which allows this mains cable to be used in applications that require a resistance to high temperatures. Silicone rubber is also very soft so flexibility can be maintained at low temperatures and where temperatures fluctuate rapidly without the cable becoming brittle and cracking. The key features and benefits of this silicone insulated power cable can be summarised below;

Wide operating temperature range of -40 to +180°C Excellent flexibility. Silicone insulated cable can withstand higher flexing cycles than other plastic insulation types Silicone insulation prevents cables from becoming brittle and weak in fluctuating temperatures Good oil and solvent resistance Resistant to various harsh chemical substances High performance in adverse environments such as humidity and harsh UV rays. Can last for years without disintegrating Robust and able to withstand daily wear and tear Excellent electrical insulating properties

Where are These Cables Used?


Silicone insulated mains cables, with their unique properties, are ideal for use in a wide range of industrial wiring applications especially those that require high-temperature resistance or operate in harsh and demanding environments. These applications and industries include the following;

Industrial heating appliances Metallurgy industry including steel works, casting works, hot rolling mills, coking plants and foundries Glass and ceramic production lines Cement factories Ship and aircraft building Electric motors

Note

The number of strands used in the construction of the cores is nominal and may vary.
