Lapp ÖLFLEX 1 mm² 2 Core Power Cable, Brown/Red Silicone, 50m

View all Power Cable

Subtotal (1 reel of 50 metres)*

£127.18

(exc. VAT)

£152.62

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship
  • Plus 2 unit(s) ready to ship from another location
  • Plus 2 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£127.18£2.544

*price indicative

RS Stock No.:
714-2296
Distrelec Article No.:
301-80-441
Mfr. Part No.:
0046007
Brand:
Lapp
Find similar products by selecting one or more attributes.
Select all

Brand

Lapp

Cross Sectional Area

1 mm²

Number of Cores

2

Sheath Colour

Brown/Red

Length

50m

CPR Certification

Eca

Sheath Material

Silicone

Outer Diameter

6.6mm

Voltage Rating

500 V

American Wire Gauge

17 AWG

Minimum Operating Temperature

-50°C

Standards Met

CE

Fire Behaviour

Flame Retardant, Halogen Free

Insulation Material

Silicone

Series

ÖLFLEX

Maximum Operating Temperature

+180°C

Conductor Material

Tinned Copper

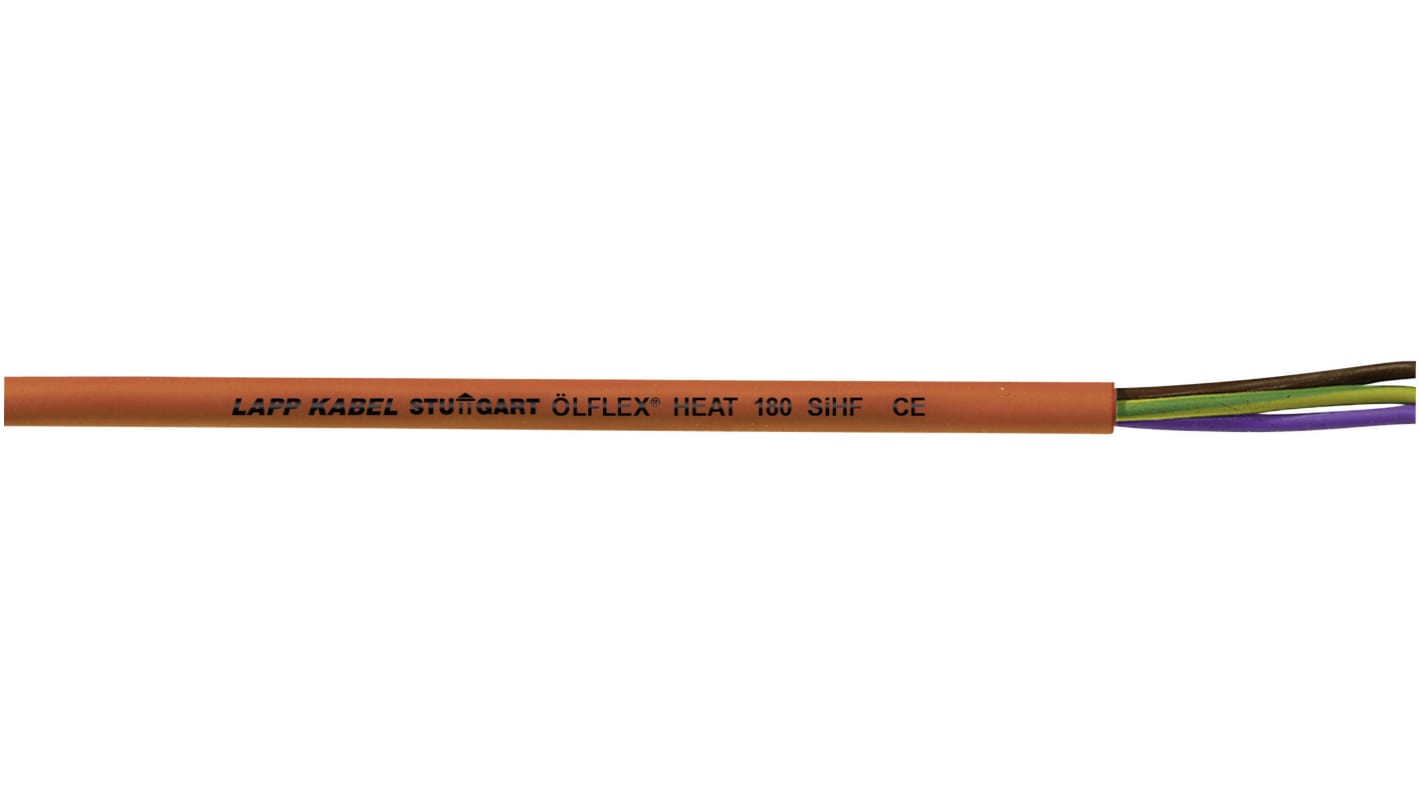

Olflex® Heat 180 SiHF Silicone Cable


From Lapp, the Olflex Heat 180 SiHF is a power and control cable designed for applications where a wide operating temperature is required. This cable features a silicon based core insulation and sheath, and can operate in areas with high ambient temperatures where conventional cables will embrittle after a short time.

This high temperature cable is also halogen-free, and emits no corrosive gases while burning, meaning it is ideal for conditions where the protection of human life and property is paramount.

The Olflex silicon power cable is a versatile solution to cable management in challenging environments.

Features and Benefits

• Flame retardant to IEC 60332-1-2
• Halogen free to IEC 60754-1
• Reduced smoke density
• Operating temperature range of -50 °C to +180 °C
• Resistant against a multitude of oils, alcohols, vegetable and animal fats and chemical media

Applications

Though the Olflex Heat 180 SiHF cable is suitable for multiple purposes, its increased temperature resistance means it is ideal for applications such as;

• Steel Works
• Industrial Furnaces
• Bakery Equipment
• Solarium Construction
• Lighting

Accessories

Lapp Olflex power and control cables should be used with accessories that match their capabilities, and as such Lapp provide a range of reliable and easy-to-install cable glands, such as the Skintop SHV-M FKM Series.

• 664-4410 is an IP68 M12 Skintop Cable Gland Kit for 3.8 to 4.8 mm Cable Diameters
• 664-4417 is an IP68 M16 Skintop Cable Gland Kit for 5.8 to 6.8 mm Cable Diameters
• 664-4426 is an IP68 M20 Skintop Cable Gland Kit for 5.8 to 6.8 mm Cable Diameters
• 664-4429 is an IP68 M20 Skintop Cable Gland Kit for 6.8 to 8.8 mm Cable Diameters
• 664-4423 is an IP68 M20 Skintop Cable Gland Kit for 8.5 to 10.8 mm Cable Diameters
