Lapp ÖLFLEX 1 mm² 4 Core Power Cable, Brown/Red Silicone, 50m
- RS Stock No.:
- 714-2293
- Mfr. Part No.:
- 00460093
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£201.33
(exc. VAT)
£241.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £201.33 | £4.027 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50 Metre(s)
£255.98
(exc. VAT)
£307.18
(inc. VAT)
- RS Stock No.:
- 714-2293
- Mfr. Part No.:
- 00460093
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Cross Sectional Area | 1 mm² | |
| Number of Cores | 4 | |
| Sheath Colour | Brown/Red | |
| Length | 50m | |
| Sheath Material | Silicone | |
| Outer Diameter | 7.9mm | |
| CPR Certification | Eca | |
| Voltage Rating | 500 V | |
| Conductor Material | Tinned Copper | |
| Series | ÖLFLEX | |
| Standards Met | CE | |
| Fire Behaviour | Flame Retardant, Halogen Free | |
| Minimum Operating Temperature | -50°C | |
| American Wire Gauge | 17 AWG | |
| Insulation Material | Silicone | |
| Maximum Operating Temperature | +180°C | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Cross Sectional Area 1 mm² | ||
Number of Cores 4 | ||
Sheath Colour Brown/Red | ||
Length 50m | ||
Sheath Material Silicone | ||
Outer Diameter 7.9mm | ||
CPR Certification Eca | ||
Voltage Rating 500 V | ||
Conductor Material Tinned Copper | ||
Series ÖLFLEX | ||
Standards Met CE | ||
Fire Behaviour Flame Retardant, Halogen Free | ||
Minimum Operating Temperature -50°C | ||
American Wire Gauge 17 AWG | ||
Insulation Material Silicone | ||
Maximum Operating Temperature +180°C | ||

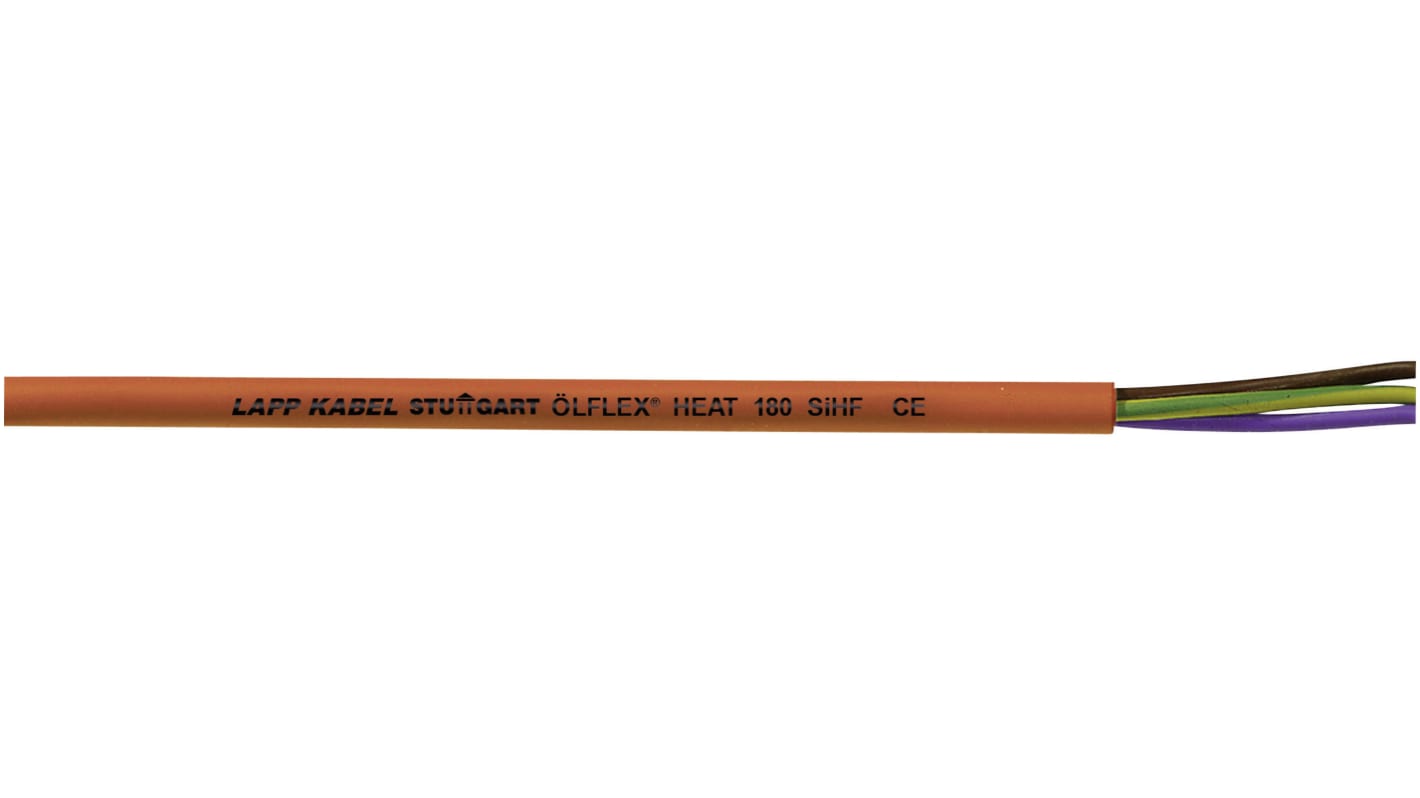

Olflex® Heat 180 SiHF Silicone Cable
From Lapp, the Olflex Heat 180 SiHF is a power and control cable designed for applications where a wide operating temperature is required. This cable features a silicon based core insulation and sheath, and can operate in areas with high ambient temperatures where conventional cables will embrittle after a short time.
This high temperature cable is also halogen-free, and emits no corrosive gases while burning, meaning it is ideal for conditions where the protection of human life and property is paramount.
The Olflex silicon power cable is a versatile solution to cable management in challenging environments.
Features and Benefits
• Flame retardant to IEC 60332-1-2
• Halogen free to IEC 60754-1
• Reduced smoke density
• Operating temperature range of -50 °C to +180 °C
• Resistant against a multitude of oils, alcohols, vegetable and animal fats and chemical media
Applications
Though the Olflex Heat 180 SiHF cable is suitable for multiple purposes, its increased temperature resistance means it is ideal for applications such as;
• Steel Works
• Industrial Furnaces
• Bakery Equipment
• Solarium Construction
• Lighting
Accessories
Lapp Olflex power and control cables should be used with accessories that match their capabilities, and as such Lapp provide a range of reliable and easy-to-install cable glands, such as the Skintop SHV-M FKM Series.
• 664-4410 is an IP68 M12 Skintop Cable Gland Kit for 3.8 to 4.8 mm Cable Diameters
• 664-4417 is an IP68 M16 Skintop Cable Gland Kit for 5.8 to 6.8 mm Cable Diameters
• 664-4426 is an IP68 M20 Skintop Cable Gland Kit for 5.8 to 6.8 mm Cable Diameters
• 664-4429 is an IP68 M20 Skintop Cable Gland Kit for 6.8 to 8.8 mm Cable Diameters
• 664-4423 is an IP68 M20 Skintop Cable Gland Kit for 8.5 to 10.8 mm Cable Diameters
This high temperature cable is also halogen-free, and emits no corrosive gases while burning, meaning it is ideal for conditions where the protection of human life and property is paramount.
The Olflex silicon power cable is a versatile solution to cable management in challenging environments.
Features and Benefits
• Flame retardant to IEC 60332-1-2
• Halogen free to IEC 60754-1
• Reduced smoke density
• Operating temperature range of -50 °C to +180 °C
• Resistant against a multitude of oils, alcohols, vegetable and animal fats and chemical media
Applications
Though the Olflex Heat 180 SiHF cable is suitable for multiple purposes, its increased temperature resistance means it is ideal for applications such as;
• Steel Works
• Industrial Furnaces
• Bakery Equipment
• Solarium Construction
• Lighting
Accessories
Lapp Olflex power and control cables should be used with accessories that match their capabilities, and as such Lapp provide a range of reliable and easy-to-install cable glands, such as the Skintop SHV-M FKM Series.
• 664-4410 is an IP68 M12 Skintop Cable Gland Kit for 3.8 to 4.8 mm Cable Diameters
• 664-4417 is an IP68 M16 Skintop Cable Gland Kit for 5.8 to 6.8 mm Cable Diameters
• 664-4426 is an IP68 M20 Skintop Cable Gland Kit for 5.8 to 6.8 mm Cable Diameters
• 664-4429 is an IP68 M20 Skintop Cable Gland Kit for 6.8 to 8.8 mm Cable Diameters
• 664-4423 is an IP68 M20 Skintop Cable Gland Kit for 8.5 to 10.8 mm Cable Diameters
