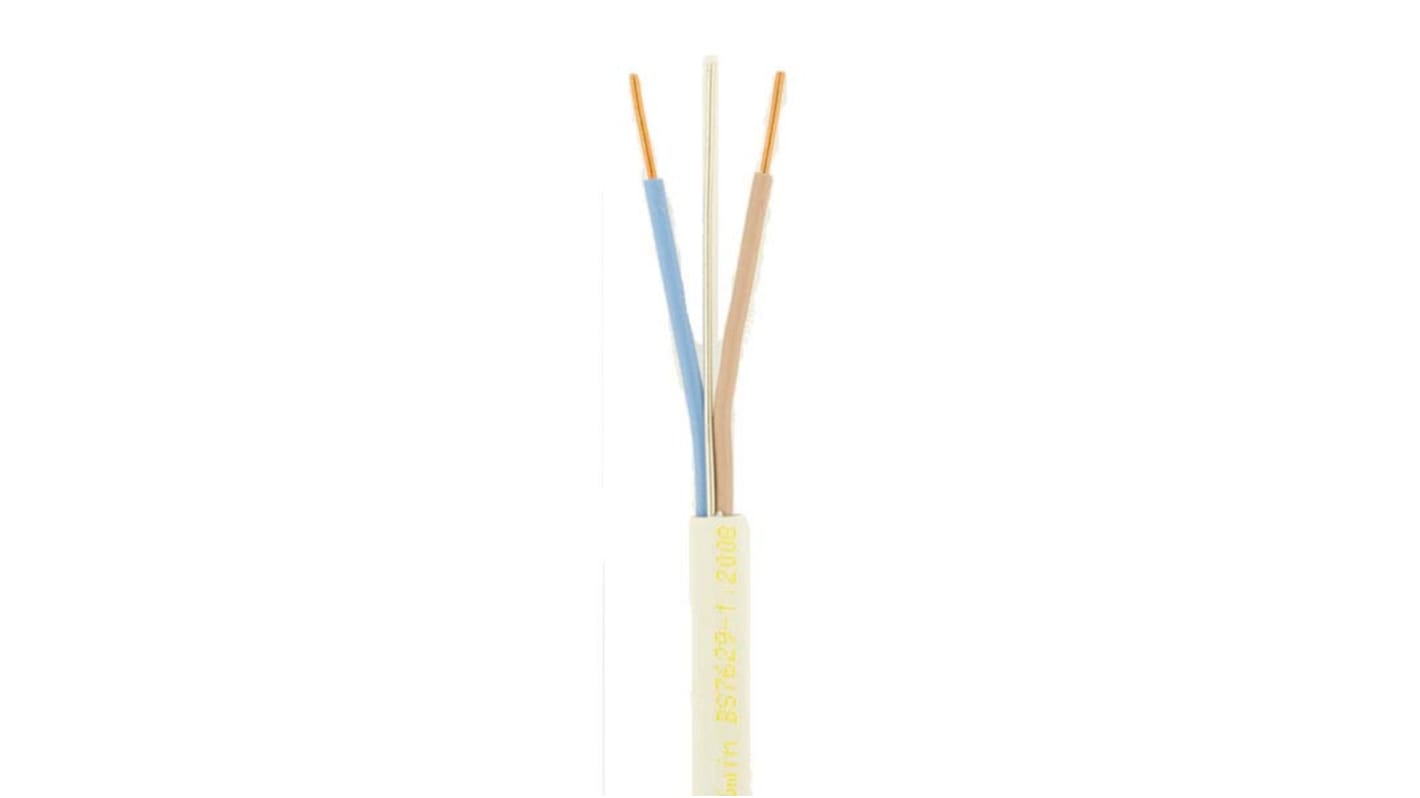

RS PRO Fire Performance LSZH 2.5 mm² 2 Core Power Cable, White, 100m

View all Power Cable
Discontinued
RS Stock No.:
705-1308
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

2.5 mm²

Number of Cores

2

Sheath Colour

White

Length

100m

Cable Type

Fire Performance LSZH

Current Rating

27 A

Outer Diameter

9.5mm

Voltage Rating

500 V

Conductor Strand Type

Solid

American Wire Gauge

13 AWG

Conductor Resistance

7.41 Ω/km

Insulation Material

Silicone

Core Strands

2.5/9 mm

Size of Strands

9 mm

Minimum Operating Temperature

-40°C

Standards Met

BASEC

Maximum Operating Temperature

+90°C

Conductor Material

Copper

COO (Country of Origin):
GB

Fire Performance Cable


Fast and easy to prepare for termination, no troublesome multiple sheaths, foils or wraps to strip. Superb working flexibility and stays where you put it, reducing time and costs. Ideal for emergency lighting. Also suitable for automatic lift doors, air conditioning and computer control where low smoke, fume and zero halogen cable is required.

Features and Benefits


Red and white sheaths available

Aluminium / co-polymer foil screen

12 twists per metre for data protection

Approved by LPCB and BASEC to meet with BS5839-1:2002 + A2 : 2008 Clause 26.2d, BS EN 50200:2006 + Annex E 30 Minutes & BS EN 50200: 2006 Class PH120

Fire resistant

Operating temperature range -40° to +90°C

Low smoke zero halogen

Product Application Information


Ideal for long cable runs and analogue addessable fire systems.
