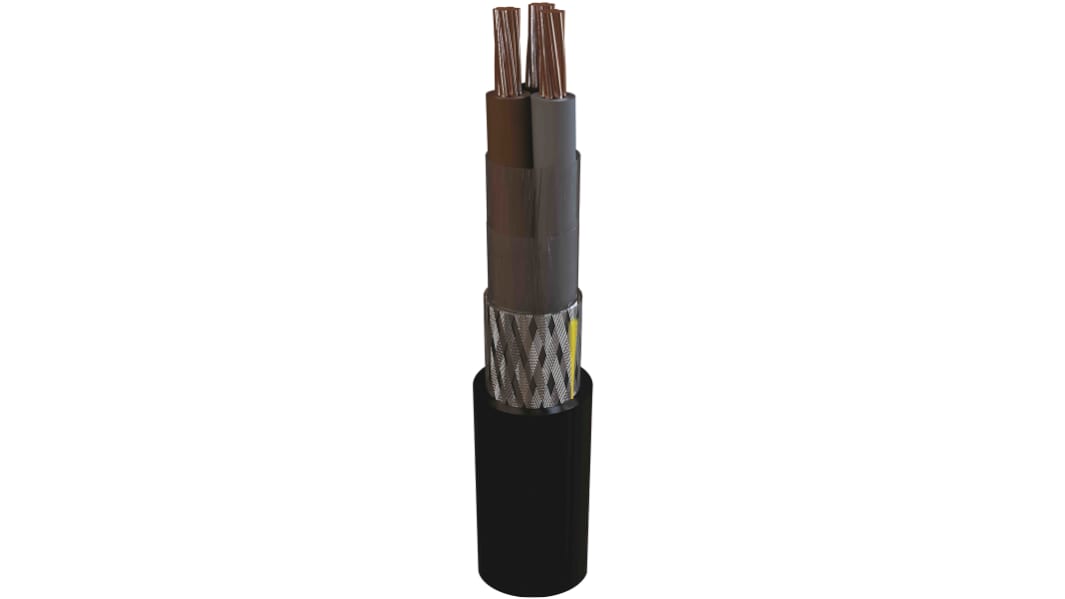

AXINDUS MarineLine YZp 0 1.5 mm² 5 Core Power Cable, Black, 100m
- RS Stock No.:
- 201-0609
- Mfr. Part No.:
- 16114
- Brand:
- AXINDUS
Stock information currently inaccessible
- RS Stock No.:
- 201-0609
- Mfr. Part No.:
- 16114
- Brand:
- AXINDUS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | AXINDUS | |
| Cross Sectional Area | 1.5 mm² | |
| Number of Cores | 5 | |
| Sheath Colour | Black | |
| Length | 100m | |
| Armoured | Yes | |
| Outer Diameter | 10.7mm | |
| Voltage Rating | 600 , 1000 V | |
| Fire Behaviour | Flame Retardant, Halogen Free | |
| American Wire Gauge | 15 AWG | |
| Standards Met | IEC 60092-350/-360/-353 | |
| Conductor Material | Copper | |
| Series | MarineLine YZp 0 | |
| Select all | ||
|---|---|---|
Brand AXINDUS | ||
Cross Sectional Area 1.5 mm² | ||
Number of Cores 5 | ||
Sheath Colour Black | ||
Length 100m | ||
Armoured Yes | ||
Outer Diameter 10.7mm | ||
Voltage Rating 600 , 1000 V | ||
Fire Behaviour Flame Retardant, Halogen Free | ||
American Wire Gauge 15 AWG | ||
Standards Met IEC 60092-350/-360/-353 | ||
Conductor Material Copper | ||
Series MarineLine YZp 0 | ||
- COO (Country of Origin):
- NL
The CAE Multimedia Connect lightweight, armoured, reduced diameter low voltage power cables for power and lighting applications in all ship areas.
Class 2 conductors
Lightweight, reduced diameter
Halogen free and low smoke, flame retardant
Tinned copper wire braid armouring
Excellent abrasion resistance
Lightweight, reduced diameter
Halogen free and low smoke, flame retardant
Tinned copper wire braid armouring
Excellent abrasion resistance
