RS PRO High Temperature 0.75 mm² 2 Core Power Cable, Brown/Red Silicone, 50m
- RS Stock No.:
- 136-8184
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 136-8184
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.75 mm² | |
| Number of Cores | 2 | |
| Sheath Colour | Brown/Red | |
| Length | 50m | |
| Cable Type | High Temperature | |
| Outer Diameter | 6.3mm | |
| Sheath Material | Silicone | |
| Voltage Rating | 300 V, 500 V | |
| Conductor Strand Type | Stranded | |
| Cable Shape | Multicore | |
| Minimum Operating Temperature | -60°C | |
| American Wire Gauge | 18 AWG | |
| Series | SIHF | |
| Conductor Material | Copper | |
| Standards Met | IEC 60228, IEC 60228, Class 5, IEC 60754-1 Halogen-Free, NF C 32-070/C2 or IEC 60332-1 Flame Retardant | |
| Maximum Operating Temperature | +180°C | |
| Fire Behaviour | Flame Retardant | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.75 mm² | ||
Number of Cores 2 | ||
Sheath Colour Brown/Red | ||
Length 50m | ||
Cable Type High Temperature | ||
Outer Diameter 6.3mm | ||
Sheath Material Silicone | ||
Voltage Rating 300 V, 500 V | ||
Conductor Strand Type Stranded | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -60°C | ||
American Wire Gauge 18 AWG | ||
Series SIHF | ||
Conductor Material Copper | ||
Standards Met IEC 60228, IEC 60228, Class 5, IEC 60754-1 Halogen-Free, NF C 32-070/C2 or IEC 60332-1 Flame Retardant | ||
Maximum Operating Temperature +180°C | ||
Fire Behaviour Flame Retardant | ||

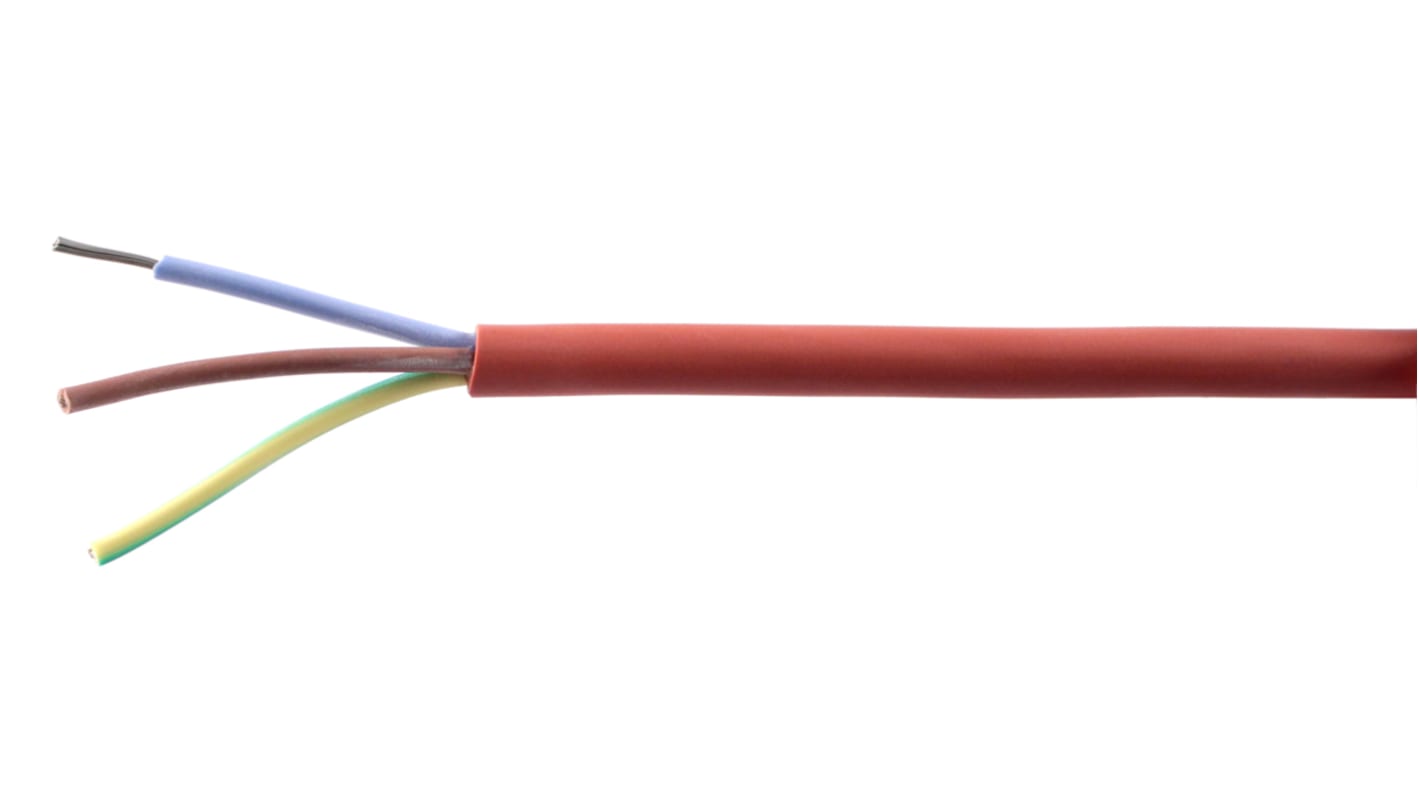

RS PRO 3-Core 0.75 mm² High-Temperature Cable, Red-Brown Silicone Sheath 50 m, 300 V, 500 V
When you need wiring that can withstand extreme conditions, this high-temperature cable from RS PRO has a broad operating temperature range of -60°C to +180°C. This makes it suitable for a wide range of environments, from hot factories to cold storage units.
The cable sheath has excellent resistance to corrosion, mechanical damage and chemicals, so you can count on it to last a long time. The outer sheath is also made of a silicone elastomer material that insulates the electric current, increasing safety.
The cable is flame-retardant to minimise the risk of fire. As it's halogen-free, it won't release toxic fumes into the air in the event of a fire.
The cable sheath has excellent resistance to corrosion, mechanical damage and chemicals, so you can count on it to last a long time. The outer sheath is also made of a silicone elastomer material that insulates the electric current, increasing safety.
The cable is flame-retardant to minimise the risk of fire. As it's halogen-free, it won't release toxic fumes into the air in the event of a fire.
Features and Benefits
- American wire gauge size of 19 AWG
- Copper conductor material
- Stranded conductor type
- Cross-sectional area of 0.75 mm²
- Flame-retardant
- Length of 50 m
- Three cores
- Operating temperature range of -60°C to +180°C
- Outer diameter of 6.5 mm
- SiHF (silicone sheath, halogen-free) series
- Red-brown sheath colour
- Silicone sheath material
- Halogen-free
- Meets IEC 60228, IEC 60228 Class 5, IEC 60754-1, NF C 32-070/C2 and IEC 60332-1 fire safety standards
- Voltage rating of 300 V, 500 V
