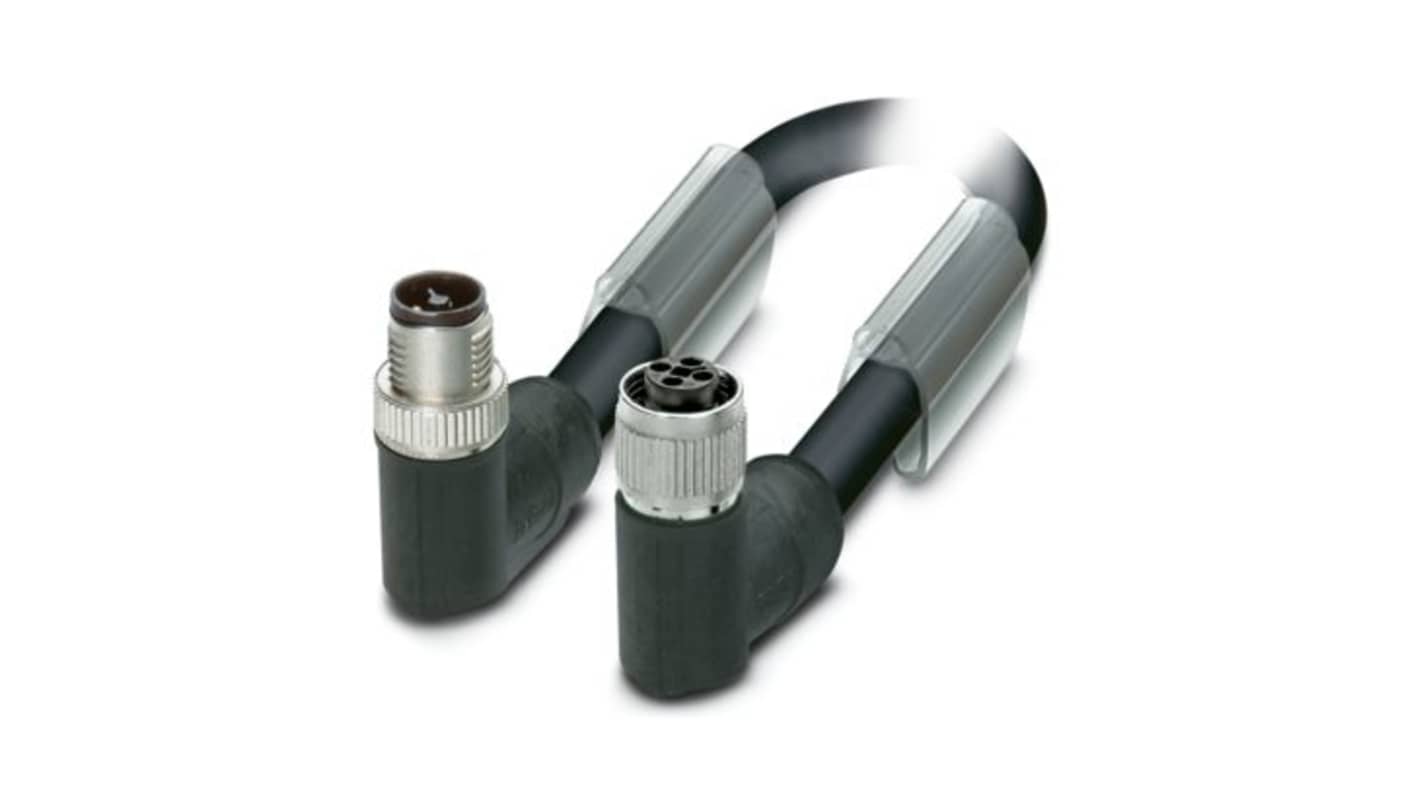

Phoenix Contact SAC, 3 m 4 Core Power Cable, Black Polyurethane 90 °C
- RS Stock No.:
- 496-425
- Mfr. Part No.:
- 1415203
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 496-425
- Mfr. Part No.:
- 1415203
- Brand:
- Phoenix Contact
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Power Cable | |
| Number of Cores | 4 | |
| Jacket Colour | Black | |
| Cable Length | 3m | |
| Outside Diameter | 9.7 mm | |
| Jacket Material | Polyurethane | |
| Voltage | 63 V | |
| Minimum Operating Temperature | 90°C | |
| Cable CSA | 4 x 1.5 mm² | |
| Standards/Approvals | IEC 60754-1, DIN EN 50363-10-2, IEC 61076-2-111, UL Listed, UL 1581 VW1, EAC, DIN VDE 0472, EN 60332-1-2, DIN EN 60811-2-1, RoHS, cUL Listed | |
| Conductor Material | Bare Copper Wire | |
| Series | SAC | |
| Maximum Operating Temperature | 90°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Power Cable | ||
Number of Cores 4 | ||
Jacket Colour Black | ||
Cable Length 3m | ||
Outside Diameter 9.7 mm | ||
Jacket Material Polyurethane | ||
Voltage 63 V | ||
Minimum Operating Temperature 90°C | ||
Cable CSA 4 x 1.5 mm² | ||
Standards/Approvals IEC 60754-1, DIN EN 50363-10-2, IEC 61076-2-111, UL Listed, UL 1581 VW1, EAC, DIN VDE 0472, EN 60332-1-2, DIN EN 60811-2-1, RoHS, cUL Listed | ||
Conductor Material Bare Copper Wire | ||
Series SAC | ||
Maximum Operating Temperature 90°C | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Power Cable is meticulously designed for robust performance in demanding applications. Offering a comprehensive solution with its four-position configuration and halogen-free PUR outer sheath, it ensures safe and efficient power transmission. The cable comes equipped with advanced shielding technology, safeguarding sensitive signals from electromagnetic interference. Its angled M12 connectors promise easy installation without compromising connection quality. The durable construction withstands a wide range of temperatures and environmental conditions, making it ideal for various industrial settings.
Halogen free construction enhances safety in hazardous environments
Advanced shielding technology provides exceptional protection against electromagnetic interference
Angled M12 connectors facilitate easy installation in tight spaces
Rated for direct current ensuring reliable power delivery up to 12 A
Durable design guarantees longevity even under severe operational conditions
Wide operating temperature range allows versatile use in different applications
Compliance with industry standards ensures quality and reliability
Compact design supports efficient space utilisation in control cabinets
