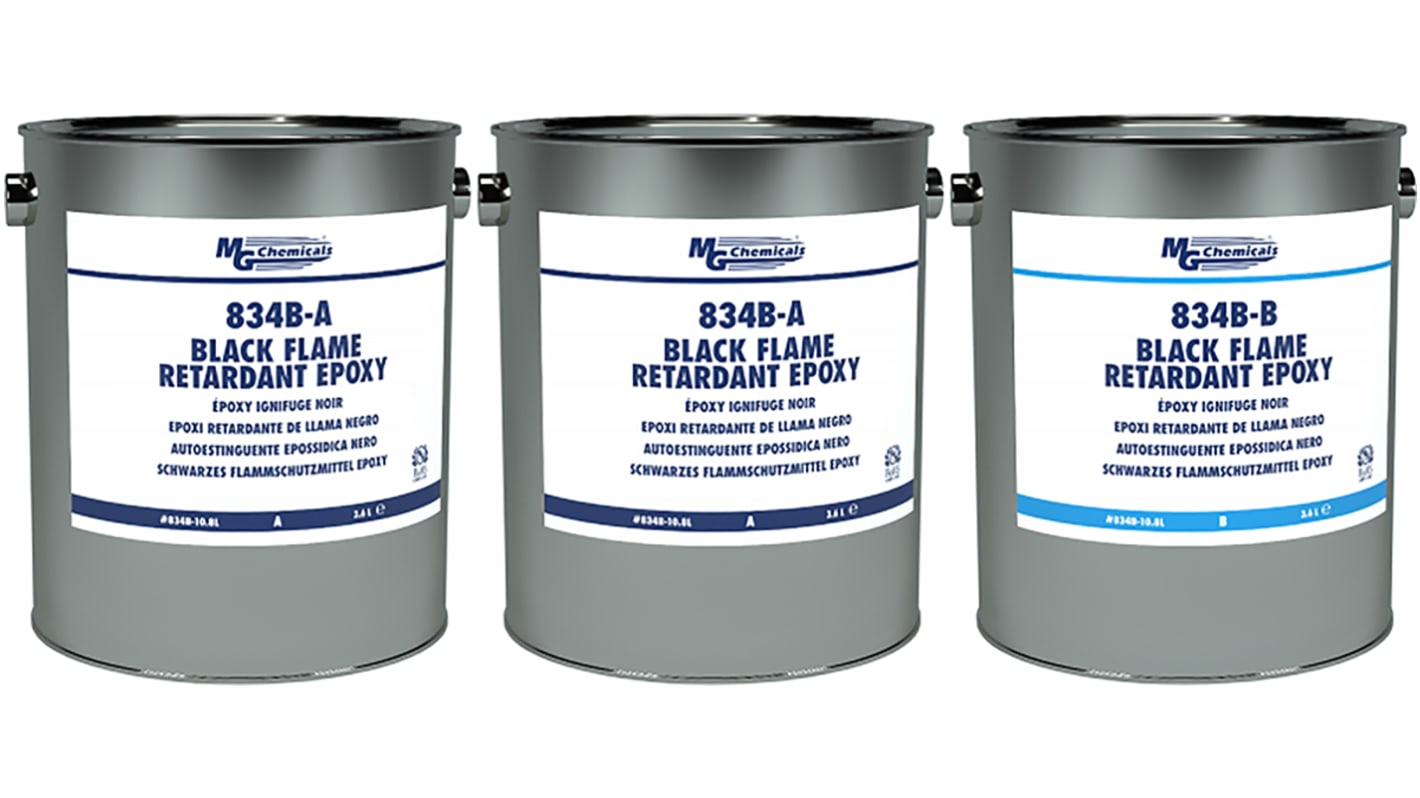

MG Chemical 834B-375ML Black Epoxy Potting Compound

  • RS Stock No. 181-0371
  • Mfr. Part No. 834B-375ML
  • Brand MG Chemical
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CA
Product Details

834B potting and encapsulating compound is a black, flame retardant, thermally conductive two-part epoxy that offers extreme environmental, mechanical and physical protection for printed circuit boards and electronic assemblies. This product is designed for applications where thermal management and self-extinguishing are critical. It also provides excellent electrical insulation and protects components from static discharges, vibration, abrasion, thermal shock, environmental humidity, salt water, fungus, and many harsh chemicals. This epoxy has a convenient 2:1 volume mix ratio, making it compatible with most dispensing equipment. 834B can be cured at room temperature or higher.

Flame retardant
Convenient 2A:1B volume mix ratio
Thermal conductivity of ∼0.8 W/(m·K)
Low exotherm
Very high compressive and tensile strength
Excellent adhesion to a wide variety of substrates including metals, composites, glass, ceramics, and many plastics
Excellent electrical insulating characteristics
Broad service temperature range of -40 to 175 °C (-40 to 347 °F)
Contains non-halogenated flame-retardant fillers
Solvent-free

Specifications
Attribute Value
Product Material Epoxy
Package Type Bottle
Package Size 375 ml
Cure Time 1 h @ 80 °C, 3 h @ +65 °C, 20 min @ +100 °C, 48 h @ +22 °C
Hardness 85 Shore D
Thermal Conductivity 0.59 W/mK @ +50 °C, 0.72 W/mK @ +100 °C, 0.79 W/mK @ +25 °C
Colour Black
Maximum Operating Temperature +175°C
Minimum Operating Temperature -40°C
Specific Gravity 1.69
Operating Temperature Range -40 → +175 °C
Viscosity Measurement 16200cP/s
Physical Form Liquid
Volume Resistivity 2.1 x 10 ^ 12Ω cm
Dielectric Strength 17kV/mm
2 In stock for FREE next working day delivery
Price Each
Was £56.20
£ 24.73
(exc. VAT)
£ 29.68
(inc. VAT)
Units
Per unit
1 +
£24.73
