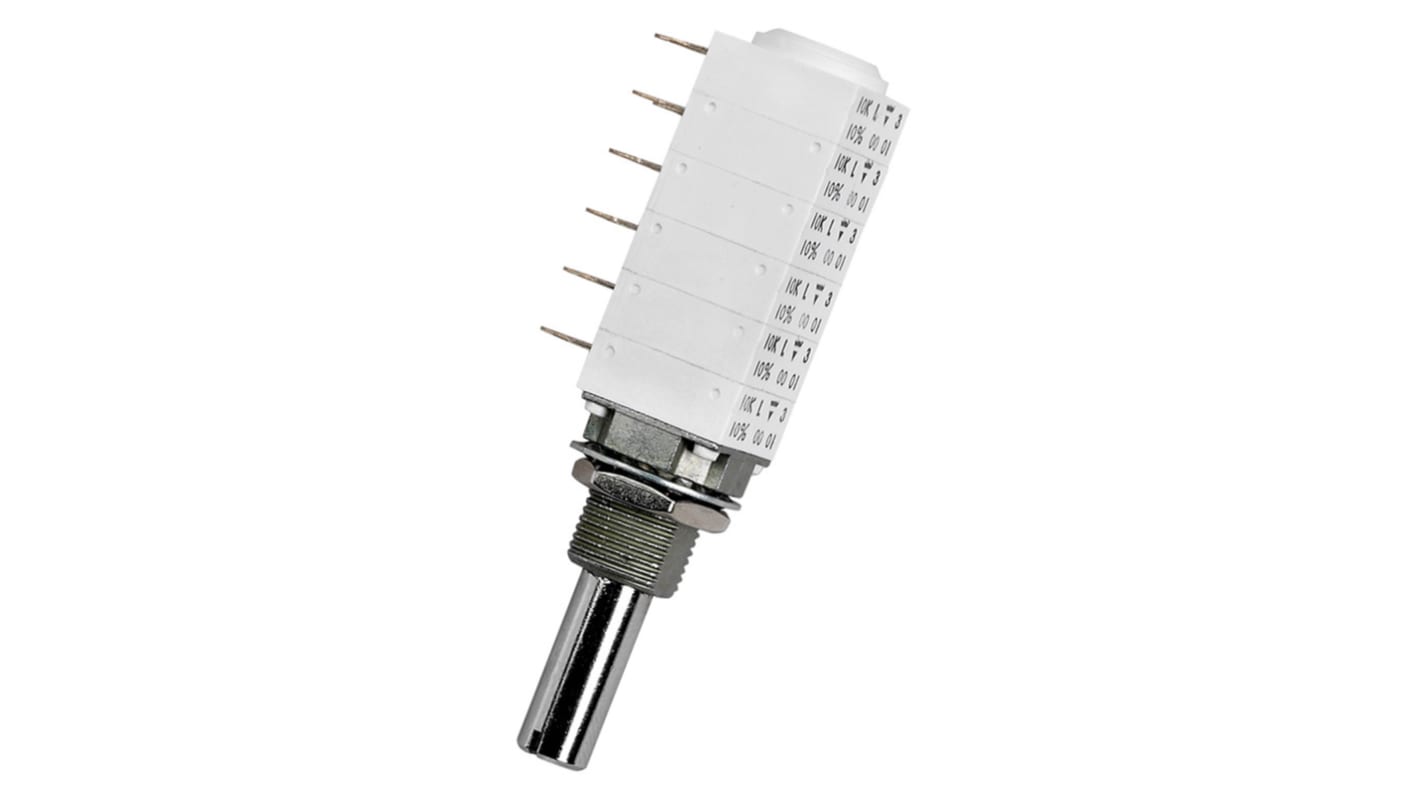

Vishay P11S 5kΩ Rotary Potentiometer 1-Gang Bushing Mount, P11S1AABHSX10502KA
- RS Stock No.:
- 850-9485
- Mfr. Part No.:
- P11S1AABHSX10502KA
- Brand:
- Vishay
Subtotal (1 pack of 100 units)*
£590.50
(exc. VAT)
£708.60
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Pack* |
|---|---|---|
| 100 + | £5.905 | £590.50 |
*price indicative
- RS Stock No.:
- 850-9485
- Mfr. Part No.:
- P11S1AABHSX10502KA
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Potentiometer Type | Rotary | |
| Maximum Resistance | 5kΩ | |
| Number of Gangs | 1 | |
| Number of Turns | 1 | |
| Power Rating | 0.5W | |
| Electrical Taper | Linear | |
| Element Material | Cermet | |
| Mounting Type | Bushing Mount | |
| Termination Style | Solder Lug | |
| Shaft Length | 19.1mm | |
| Shaft Diameter | 6.35 mm | |
| Tolerance | ±20% | |
| Series | P11S | |
| Actuator Type | Slotted Shaft | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Potentiometer Type Rotary | ||
Maximum Resistance 5kΩ | ||
Number of Gangs 1 | ||
Number of Turns 1 | ||
Power Rating 0.5W | ||
Electrical Taper Linear | ||
Element Material Cermet | ||
Mounting Type Bushing Mount | ||
Termination Style Solder Lug | ||
Shaft Length 19.1mm | ||
Shaft Diameter 6.35 mm | ||
Tolerance ±20% | ||
Series P11S | ||
Actuator Type Slotted Shaft | ||
- COO (Country of Origin):
- CZ
Vishay 1W Sealed single turn potentiometer with mid point - P11 series
Potentiometers with cermet track
6 mm metal shaft
Version with mid point "J" located at 50 % of the electrical travel
Mid click at the central point
Panel installation, solder terminal outputs
6 mm metal shaft
Version with mid point "J" located at 50 % of the electrical travel
Mid click at the central point
Panel installation, solder terminal outputs
Approvals
CEGCC 41301-004. NFC 83253
