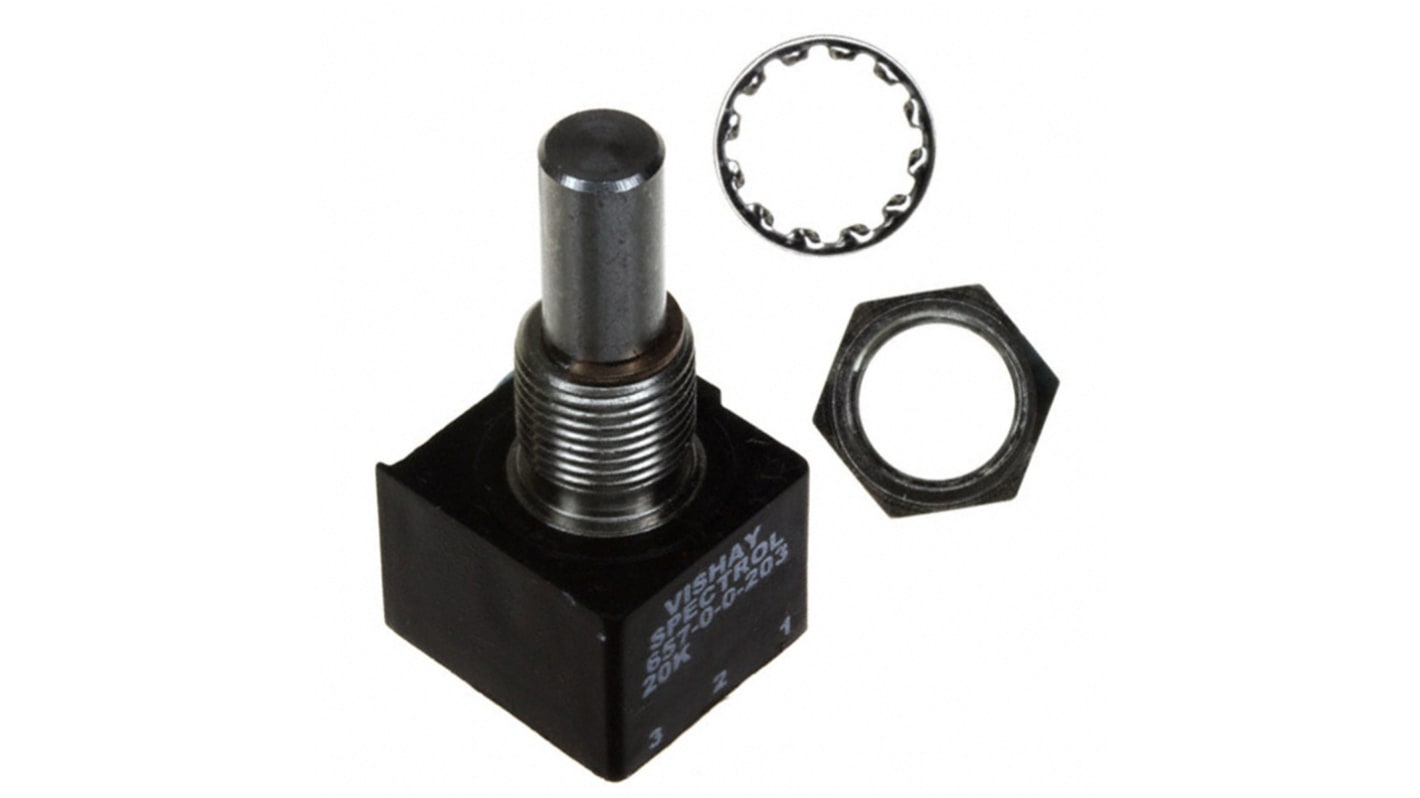

The Vishay 657 Series are highly reliable bush mounting potentiometers. The 657 series are designed for industrial use and are fully sealed for high immunity to environmental damage.
Excellent temperature stability High rotational life Stainless steel shaft Fully sealed
Attribute
Value
Potentiometer Type
Rotary
Maximum Resistance
20kΩ
Number of Gangs
1
Power Rating
1W
Electrical Taper
Linear
Element Material
Conductive Plastic
Mounting Type
Bushing Mount
Termination Style
Solder Lug
Shaft Length
22.2mm
Shaft Diameter
6.35 mm
Series
657
Tolerance
±20%
Actuator Type
Round Shaft
