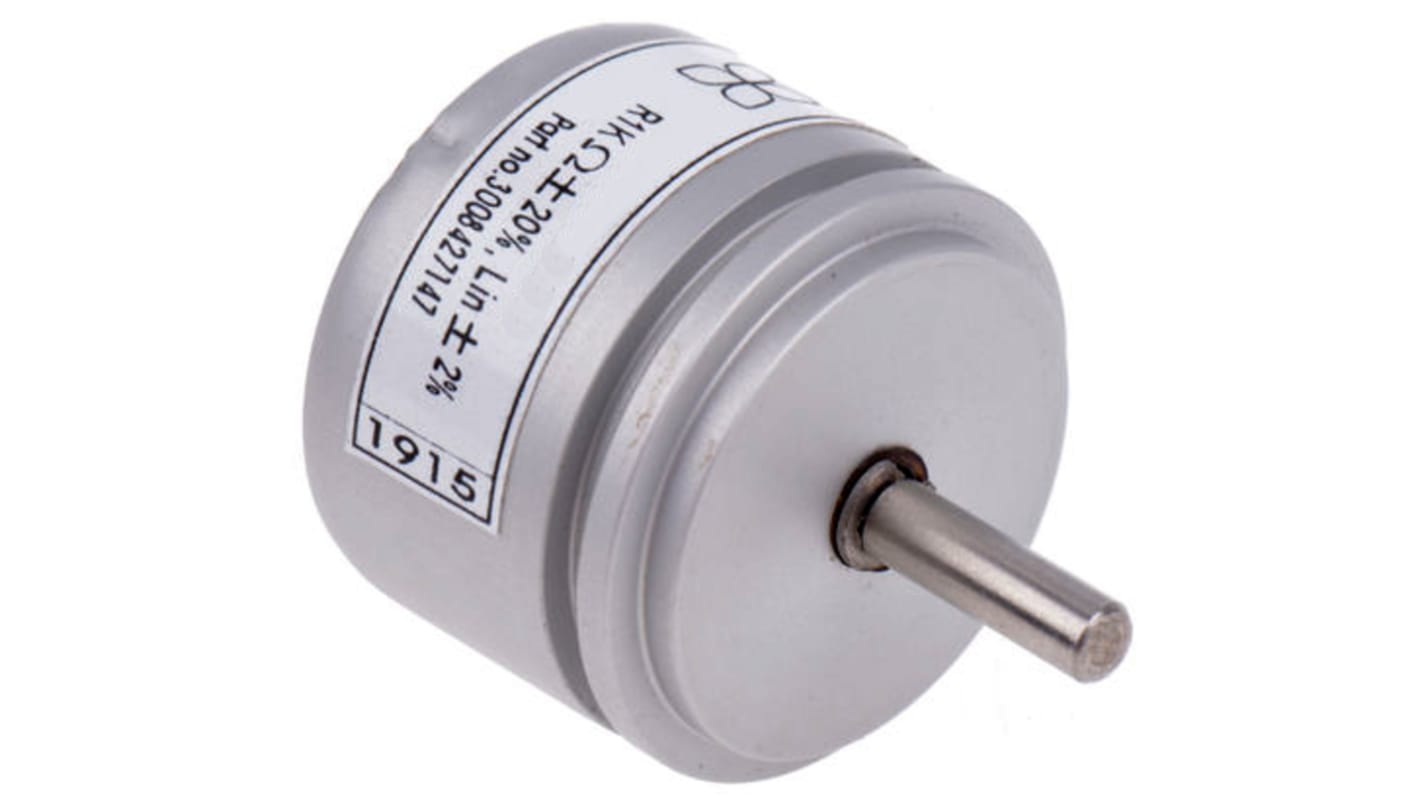

RS PRO 1kΩ Rotary Potentiometer 1-Gang Panel Mount
- RS Stock No.:
- 842-7147
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 842-7147
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Potentiometer Type | Rotary | |
| Maximum Resistance | 1kΩ | |
| Number of Gangs | 1 | |
| Number of Turns | 1 | |
| Power Rating | 1W | |
| Electrical Taper | Linear | |
| Element Material | Conductive Plastic | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder | |
| Shaft Length | 12mm | |
| Shaft Diameter | 3 mm | |
| Series | NPS22 | |
| Actuator Type | Round Shaft | |
| Tolerance | ±20% | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Potentiometer Type Rotary | ||
Maximum Resistance 1kΩ | ||
Number of Gangs 1 | ||
Number of Turns 1 | ||
Power Rating 1W | ||
Electrical Taper Linear | ||
Element Material Conductive Plastic | ||
Mounting Type Panel Mount | ||
Termination Style Solder | ||
Shaft Length 12mm | ||
Shaft Diameter 3 mm | ||
Series NPS22 | ||
Actuator Type Round Shaft | ||
Tolerance ±20% | ||
- COO (Country of Origin):
- CN
RS NPS Series Single Turn Conductive Plastic Potentiometers
This series of RS potentiometers provide a resistance range of 1kΩ to 100kΩ and are constructed from a long life conductive plastic resistance element with an anodised aluminium machined body. These potentiometers offer noise free output due to a precious metal wiper.
360° mechanical rotation angle
±20% standard resistance tolerance
1W power rating at 70°C
±20% standard resistance tolerance
1W power rating at 70°C
