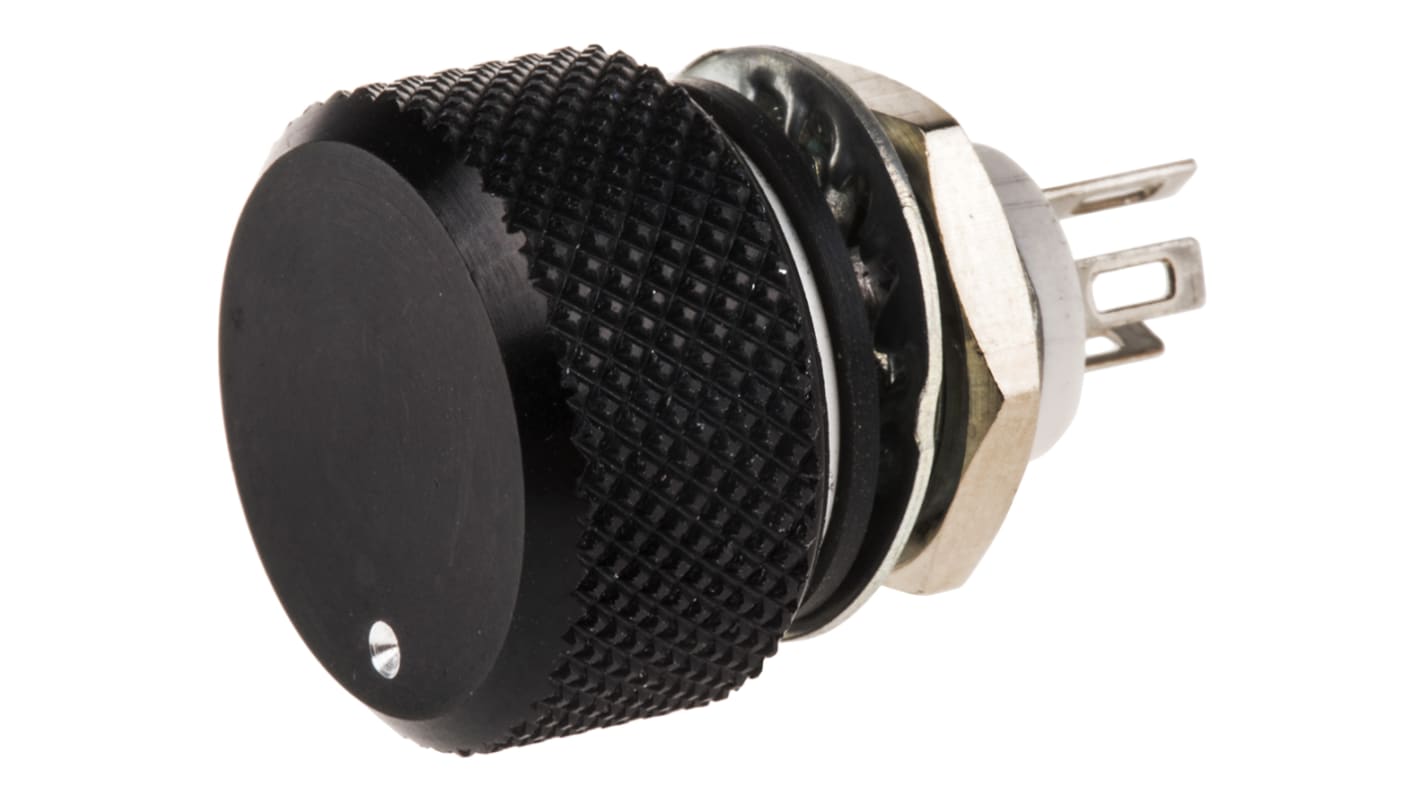

Vishay P16 10kΩ Rotary Potentiometer 1-Gang Panel Mount, P16NM103MAB15
- RS Stock No.:
- 790-4170
- Distrelec Article No.:
- 164-34-864
- Mfr. Part No.:
- P16NM103MAB15
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£22.77
(exc. VAT)
£27.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 92 unit(s) ready to ship
- Plus 22 unit(s) ready to ship from another location
- Plus 218 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £22.77 |
| 2 - 4 | £20.95 |
| 5 - 9 | £19.36 |
| 10 - 24 | £18.22 |
| 25 + | £17.08 |
*price indicative
- RS Stock No.:
- 790-4170
- Distrelec Article No.:
- 164-34-864
- Mfr. Part No.:
- P16NM103MAB15
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Potentiometer Type | Rotary | |
| Maximum Resistance | 10kΩ | |
| Number of Gangs | 1 | |
| Number of Turns | 1 | |
| Power Rating | 1W | |
| Electrical Taper | Linear | |
| Element Material | Cermet | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Shaft Length | 9.4mm | |
| Shaft Diameter | 16 mm | |
| Tolerance | ±20% | |
| Actuator Type | Round Shaft | |
| Series | P16 | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Potentiometer Type Rotary | ||
Maximum Resistance 10kΩ | ||
Number of Gangs 1 | ||
Number of Turns 1 | ||
Power Rating 1W | ||
Electrical Taper Linear | ||
Element Material Cermet | ||
Mounting Type Panel Mount | ||
Termination Style Solder Lug | ||
Shaft Length 9.4mm | ||
Shaft Diameter 16 mm | ||
Tolerance ±20% | ||
Actuator Type Round Shaft | ||
Series P16 | ||
- P16, PA16 Knob Potentiometer Datasheet
- Capabilities & Custom Options
- In a Nutshell - Compact Panel Potentiometer
- Did you know? P16 Potentiometers
- Value Added Potentiometers
- Tradeshow Brochure - Variable Resistors
- Selector Guide - Panel Potentiometers
- Potentiometers and Trimmers
- Quick Reference Guide - Panel Potentiometers
Vishay P16 Series Knob Potentiometers
The P16 is a revolutionary concept in panel mounted potentiometers. This unique design consists of a knob driving and incorporating a cermet potentiometer. Only the mounting hardware and terminals are situated on the back side of the panel reducing to a minimum the required clearance.
Test according to CECC 41000 or IEC 60393-1
P16 - version for professional and industrial
applications (cermet) 1 W at 40 °C
Compact (integrated)
High dielectric strength: 2500 VRMS
Fully sealed and panel sealed
Metallic or plastic knob options
Custom knob on request
P16 - version for professional and industrial
applications (cermet) 1 W at 40 °C
Compact (integrated)
High dielectric strength: 2500 VRMS
Fully sealed and panel sealed
Metallic or plastic knob options
Custom knob on request
Supplied with
Nut, lock washer and sealing ring.
