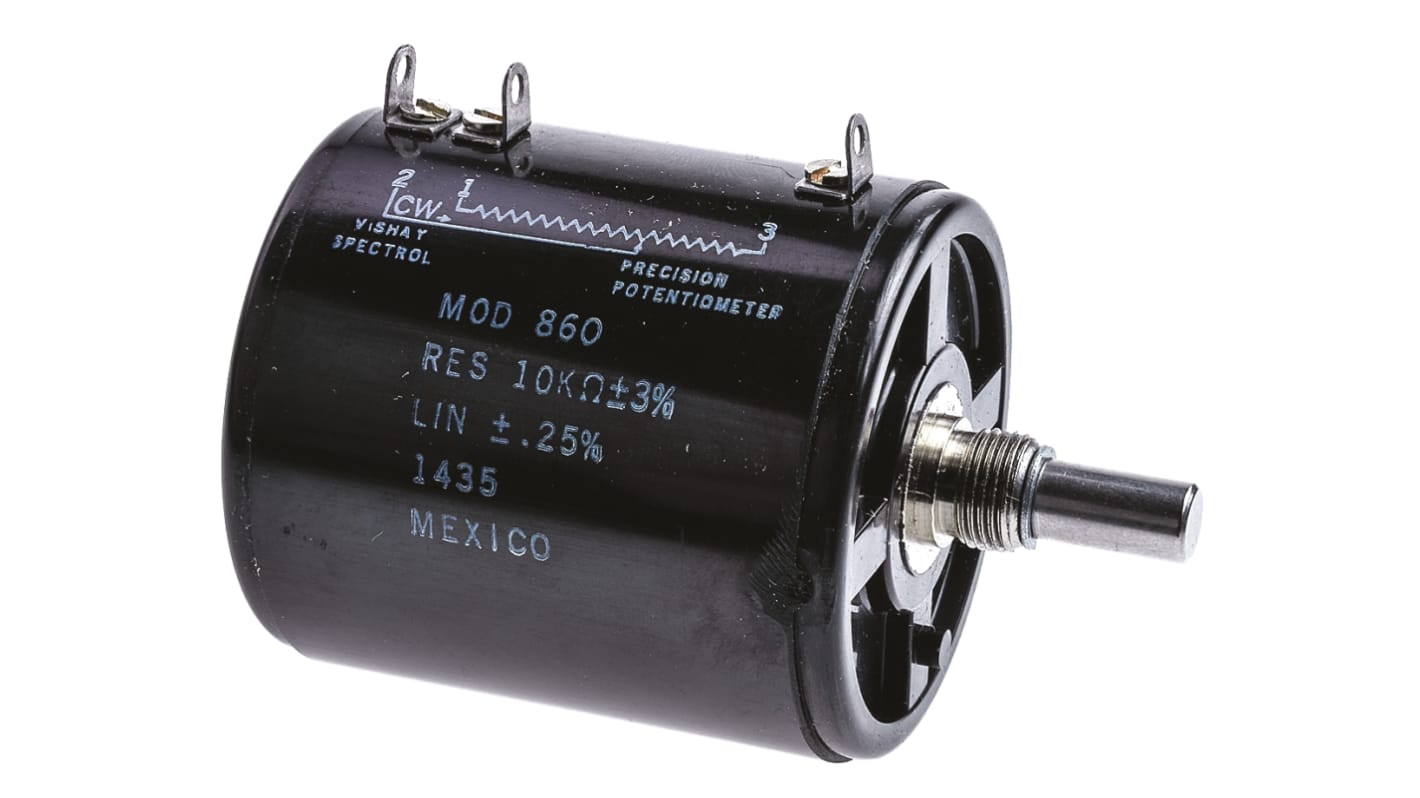

Vishay 10kΩ Rotary Potentiometer 10-Turns 1-Gang Panel Mount, 860B1103
- RS Stock No.:
- 294-3763
- Mfr. Part No.:
- 860B1103
- Brand:
- Vishay
Available to back order for despatch when stock is available
Price Each
£165.53
(exc. VAT)
£198.64
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 1 | £165.53 |
| 2 - 4 | £160.93 |
| 5 + | £156.58 |
- RS Stock No.:
- 294-3763
- Mfr. Part No.:
- 860B1103
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- MX
Product Details
46mm 10 Turn 860 Series
The Vishay 860 range of precision wirewound ten turn potentiometers.
Wirewound potentiometers
Stainless steel shaft
Glass filled thermoset plastic housing
Stainless steel shaft
Glass filled thermoset plastic housing
Supplied with
metal lockwasher and nut.
Precision - Multi-Turn and Servo
Specifications
Attribute | Value |
|---|---|
| Potentiometer Type | Rotary |
| Maximum Resistance | 10kΩ |
| Number of Gangs | 1 |
| Number of Turns | 10 |
| Power Rating | 8W |
| Electrical Taper | Linear |
| Element Material | Wirewound |
| Mounting Type | Panel Mount |
| Termination Style | Solder Lug |
| Shaft Length | 20.6mm |
| Shaft Diameter | 6.35 mm |
| Actuator Type | Round Shaft |
| Tolerance | ±1% |
| Series | 860 |
