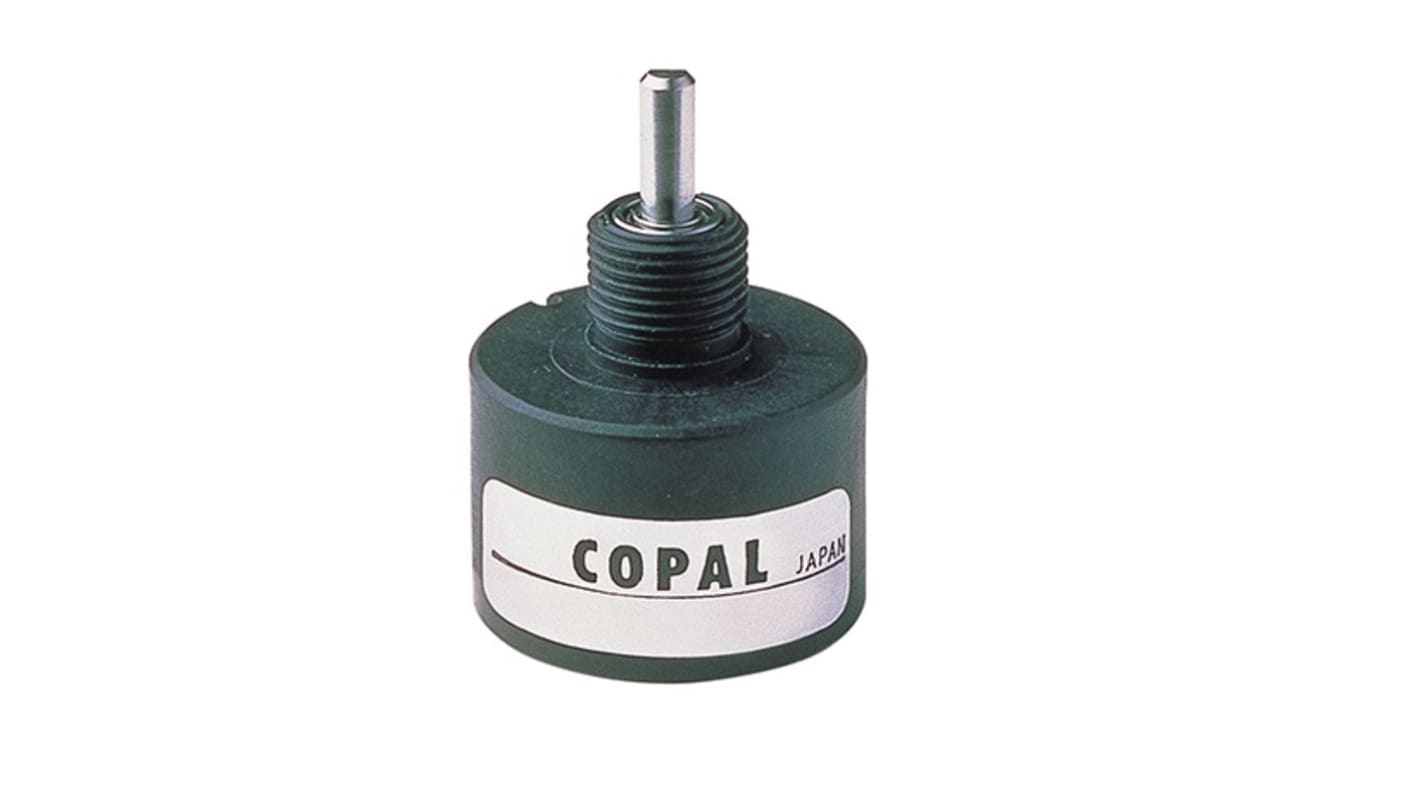

Nidec Components JT22 10 kΩ Rotary Potentiometer 1-Turns 1-Gang, JT22-120-500

RS Stock No.:: 244-4019
Mfr. Part No.:: JT22-120-500
Brand:: Nidec Components

Nidec Components JT22 10 kΩ Rotary Potentiometer 1-Turns 1-Gang, JT22-120-500

Bulk discount available

Subtotal (1 unit)*

£80.00

(exc. VAT)

£96.00

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 5 unit(s) shipping from 20 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 1	£80.00
2 +	£75.20

*price indicative

RS Stock No.:: 244-4019
Mfr. Part No.:: JT22-120-500
Brand:: Nidec Components

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Nidec Components
	Potentiometer Type	Rotary
	Product Type	Potentiometer
	Maximum Resistance	10kΩ
	Shaft Diameter	3mm
	Number of Gangs	1
	Number of Turns	1
	Termination Style	Wire
	Shaft Length	8mm
	Minimum Operating Temperature	-30°C
	Pin Count	3
	Maximum Operating Temperature	80°C
	Height	22mm
	Length	31mm
	Standards/Approvals	RoHS
	Series	JT22

	Select all
	Brand Nidec Components
	Potentiometer Type Rotary
	Product Type Potentiometer
	Maximum Resistance 10kΩ
	Shaft Diameter 3mm
	Number of Gangs 1
	Number of Turns 1
	Termination Style Wire
	Shaft Length 8mm
	Minimum Operating Temperature -30°C
	Pin Count 3
	Maximum Operating Temperature 80°C
	Height 22mm
	Length 31mm
	Standards/Approvals RoHS
	Series JT22

Datasheet - JT22-120-500

COO (Country of Origin):: JP

The NIDEC COPAL ELECTRONICS JT22 series single turn type optical contactless potentiometer, contactless configuration offers much longer life and offers low torque.

Superior temperature characteristic due to temperature compensation circuit incorporated

Wide effective electrical angle

RoHS compliant
