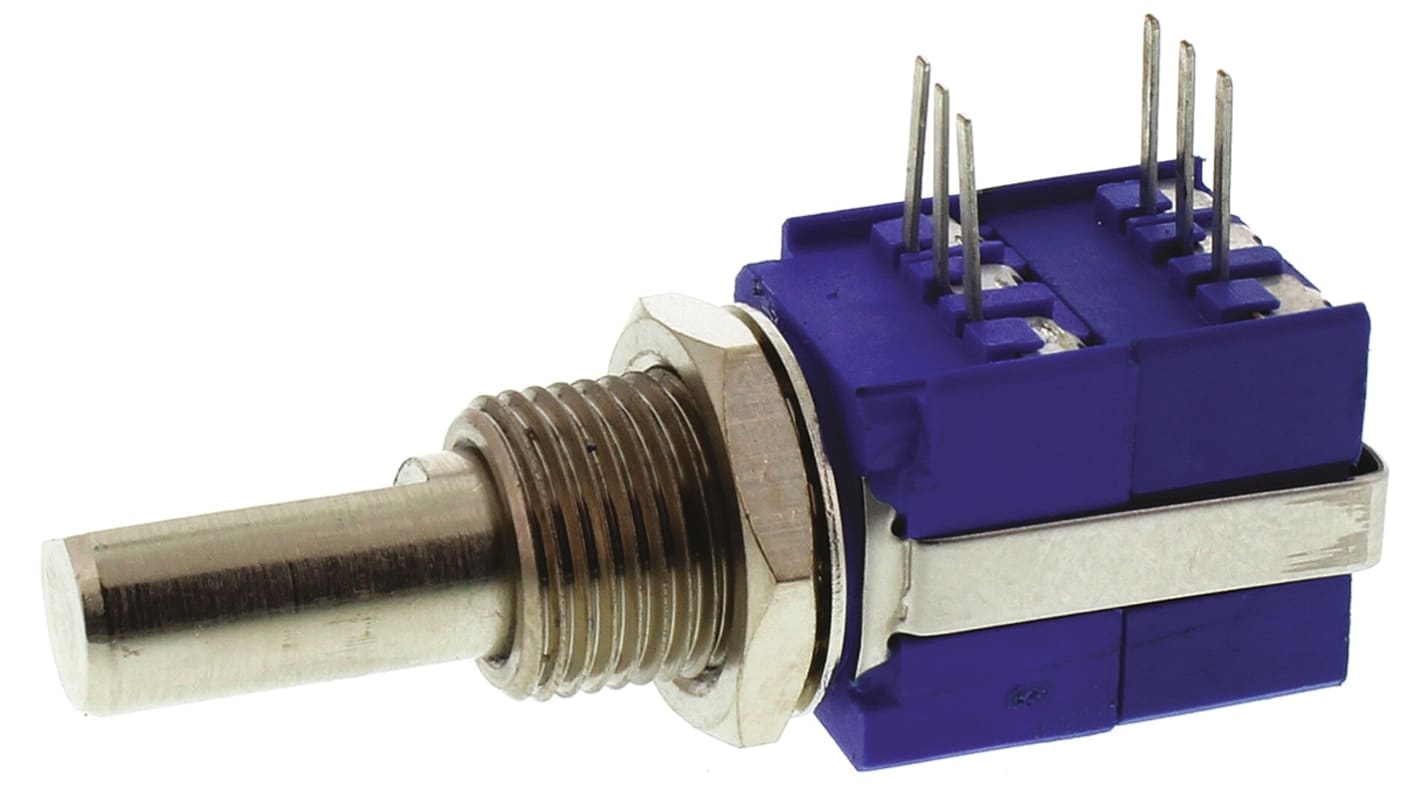

Bourns 56 10 kΩ Rotary Potentiometer 1-Turns 1-Gang Panel Mount, Through Hole

RS Stock No.:: 167-5422
Mfr. Part No.:: 56AAD-C28-B15/R81L
Brand:: Bourns

Bourns 56 10 kΩ Rotary Potentiometer 1-Turns 1-Gang Panel Mount, Through Hole

Subtotal (1 tray of 45 units)*

£596.70

(exc. VAT)

£715.95

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 27 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Tray*
45 +	£13.26	£596.70

*price indicative

RS Stock No.:: 167-5422
Mfr. Part No.:: 56AAD-C28-B15/R81L
Brand:: Bourns

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Bourns
	Product Type	Potentiometer
	Potentiometer Type	Rotary
	Maximum Resistance	10kΩ
	Shaft Diameter	6.35mm
	Number of Gangs	1
	Packaging	Bulk
	Number of Turns	1
	Power Rating	0.5W
	Electrical Taper	Linear
	Element Material	Conductive Plastic
	Mount Type	Panel Mount, Through Hole
	Termination Style	PC Pin
	Shaft Length	22.2mm
	Pin Count	6
	Minimum Operating Temperature	1°C
	Adjustment Type	Side
	Maximum Operating Temperature	125°C
	Length	16.51mm
	Height	19.6mm
	Standards/Approvals	RoHS
	Depth	13.25mm
	Series	56
	Mounting Hole Diameter	9.525 mm
	Tolerance ±	20%
	Actuator Type	Flatted Shaft

	Select all
	Brand Bourns
	Product Type Potentiometer
	Potentiometer Type Rotary
	Maximum Resistance 10kΩ
	Shaft Diameter 6.35mm
	Number of Gangs 1
	Packaging Bulk
	Number of Turns 1
	Power Rating 0.5W
	Electrical Taper Linear
	Element Material Conductive Plastic
	Mount Type Panel Mount, Through Hole
	Termination Style PC Pin
	Shaft Length 22.2mm
	Pin Count 6
	Minimum Operating Temperature 1°C
	Adjustment Type Side
	Maximum Operating Temperature 125°C
	Length 16.51mm
	Height 19.6mm
	Standards/Approvals RoHS
	Depth 13.25mm
	Series 56
	Mounting Hole Diameter 9.525 mm
	Tolerance ± 20%
	Actuator Type Flatted Shaft

Datasheet

COO (Country of Origin):: MX

1/2" (12.5 mm) Panel Control w/CW or CCW rotary switch - 56 Series

The Model 56 ½" panel control with CW or CCW rotary switch is an extension of the Model 51/53 Series with an added single-pole, double-throw (SPDT) rotary switch module. Model 56 Series with CW or CCW rotary switch is an industrial grade product that feature linear and audio tapers, PC board and bushing mount, splash seal with metal bushing and shaft. Model 56 is designed for use in various industrial, medical and aerospace/avionics applications

Rotational life: 50k cycles

Contact resistance: 30 mΩ

Switch rating: 0.5 A

Switch life: 50k actuations

Contact bounce: 0.1 MS max.
