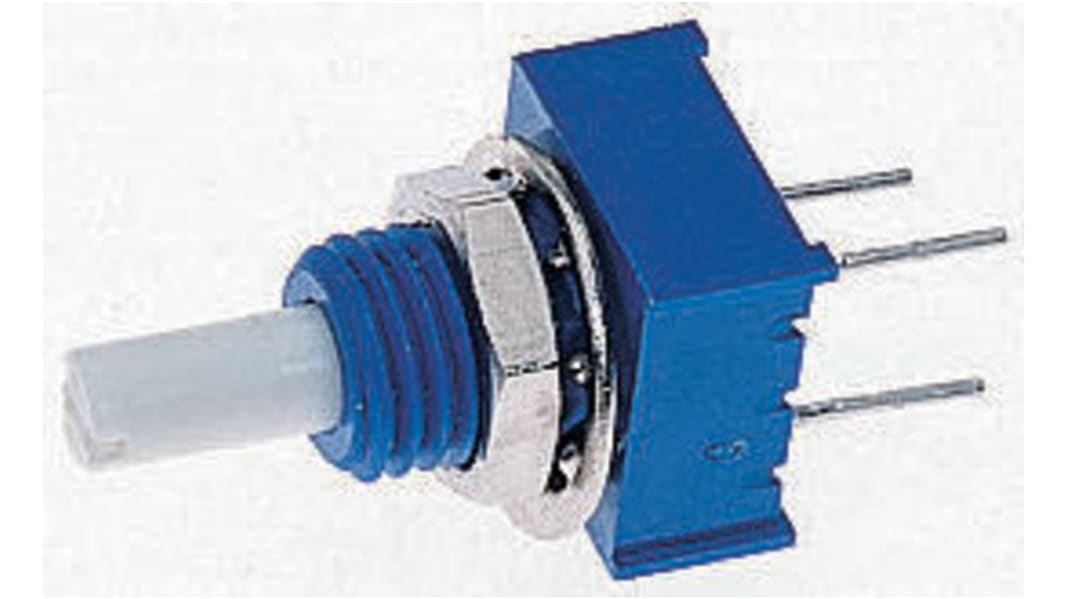

Bourns 50kΩ Rotary Potentiometer 1-Gang, Panel Mount (Through Hole), 3310P-001-503L
- RS Stock No.:
- 167-4645
- Mfr. Part No.:
- 3310P-001-503L
- Brand:
- Bourns
Available to back order for despatch 24/06/2024
Added
Price Each (In a Tube of 50)
£2.548
(exc. VAT)
£3.058
(inc. VAT)
| Units | Per unit | Per Tube* |
| 50 + | £2.548 | £127.40 |
| *price indicative | ||
- RS Stock No.:
- 167-4645
- Mfr. Part No.:
- 3310P-001-503L
- Brand:
- Bourns
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
9mm 3310P-001Series Sealed Panel Control
Compact package - saving board and panel space
Sealed to withstand immersion board washing
Panel and PCB mountable
Plastic bushing and plastic shaft
Temperature -40 to +125 °C
Sealed to withstand immersion board washing
Panel and PCB mountable
Plastic bushing and plastic shaft
Temperature -40 to +125 °C
Supplied with
Metal lock washer and nut
Specifications
Attribute | Value |
|---|---|
| Potentiometer Type | Rotary |
| Maximum Resistance | 50kΩ |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power Rating | 0.25W |
| Electrical Taper | Linear |
| Element Material | Conductive Plastic |
| Mounting Type | Panel Mount, Through Hole |
| Termination Style | PC Pin |
| Shaft Length | 12.7mm |
| Shaft Diameter | 3.18 mm |
| Actuator Type | Slotted Shaft |
| Tolerance | ±20% |
| Series | 3310 |
