Vishay P16F 1 mΩ Linear Potentiometer 1-Turns 1-Gang Panel Mount

View all Potentiometers

Subtotal (1 unit)*

£17.66

(exc. VAT)

£21.19

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 40 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£17.66

*price indicative

RS Stock No.:
329-043
Mfr. Part No.:
P16FNP102MARSD
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

Potentiometer

Potentiometer Type

Linear

Maximum Resistance

1mΩ

Number of Gangs

1

Packaging

Box of 20 pieces

Number of Turns

1

Power Rating

0.5W

Electrical Taper

Linear

Element Material

Metal

Mount Type

Panel Mount

Termination Style

Solder Lug

Shaft Length

18mm

Adjustment Type

Rotary

Pin Count

3

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Depth

22mm

Height

22mm

Length

33.5mm

Standards/Approvals

CECC 41000, IEC 60393-1, RoHS, IP67 Sealed

Actuator Type

Knob

Series

P16F

Tolerance ±

20%

COO (Country of Origin):
CZ

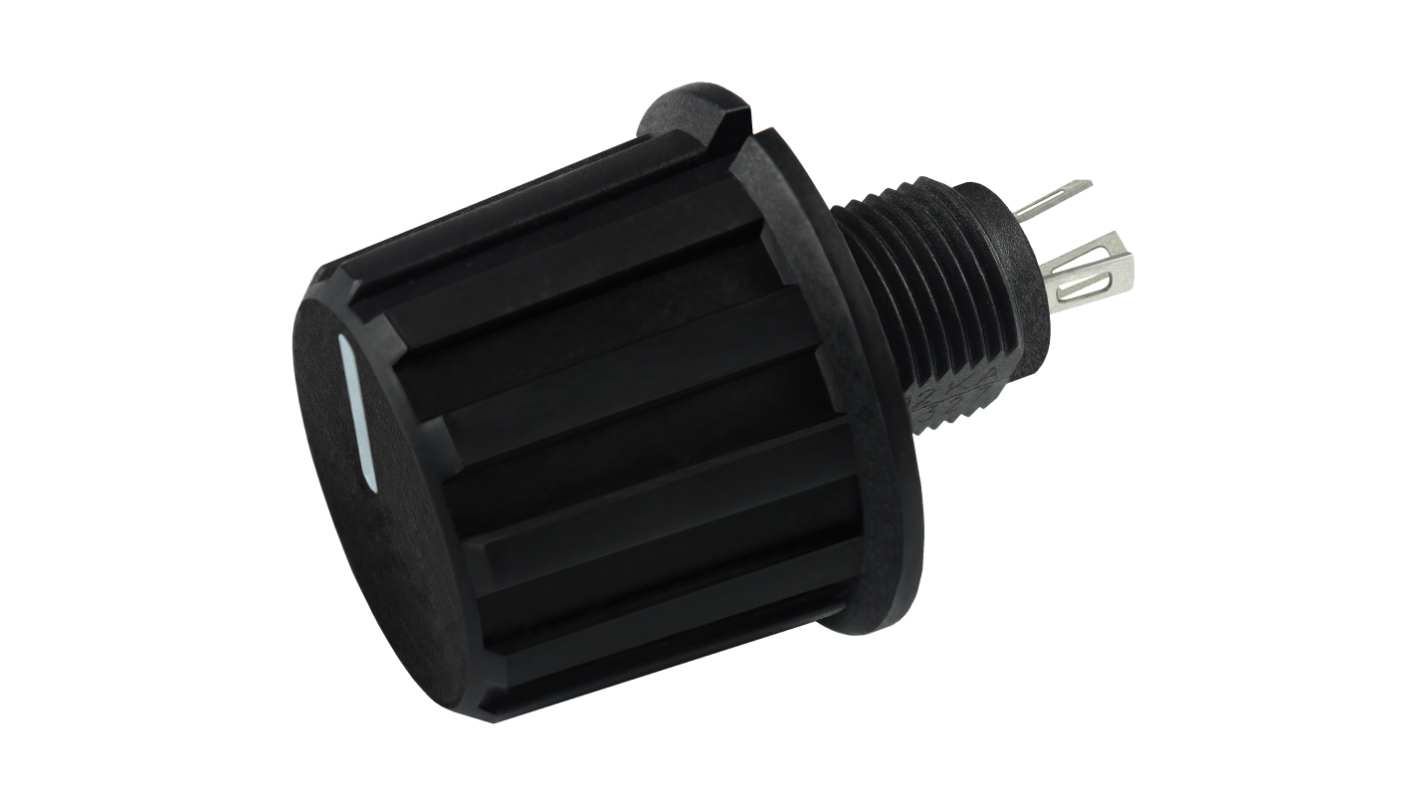

The Vishay Knob Potentiometer features a unique design that incorporates a knob driving a cermet potentiometer. In this design, only the mounting hardware and terminals are located on the backside of the panel, significantly reducing the required clearance. This Compact setup ensures efficient space utilization while maintaining functionality.

IP67 rated

Fully sealed and panel sealed

Compact

Test according to CECC 41000 or IEC 60393-1

RoHS compliant
