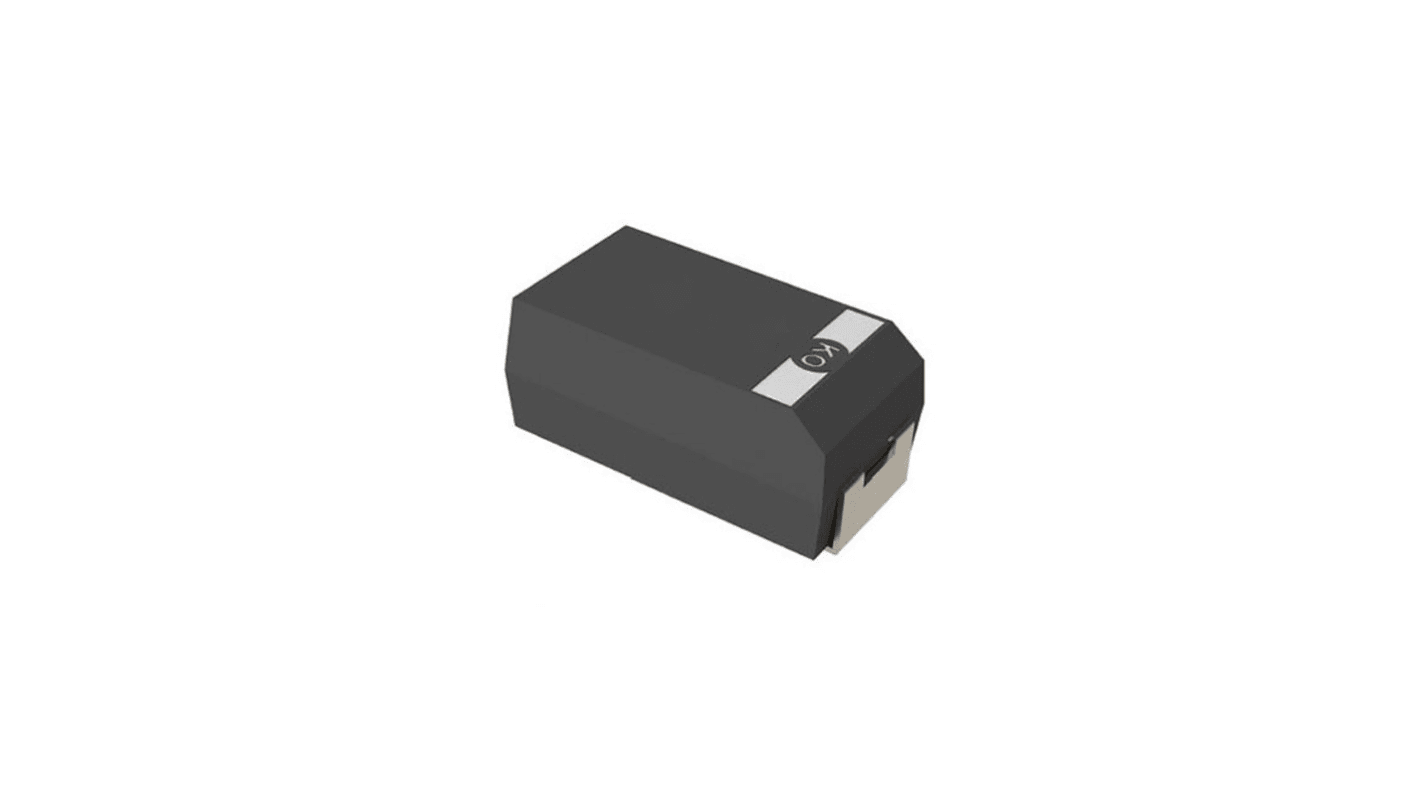

KEMET 150μF Surface Mount Polymer Capacitor, 4V dc

View all Polymer Capacitors

Subtotal (1 pack of 5 units)*

£5.12

(exc. VAT)

£6.145

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 495 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£1.024£5.12

*price indicative

Packaging Options:
RS Stock No.:
204-8368
Mfr. Part No.:
T599D157M004ATE045
Brand:
KEMET
Find similar products by selecting one or more attributes.
Select all

Brand

KEMET

Technology

Hybrid

Capacitance

150µF

Voltage

4V dc

Dielectric Material Family

Tantalum

Mounting Type

Surface Mount

Package/Case

7343–31

Equivalent Series Resistance

45mΩ

Lead Pitch

3.8mm

Tolerance

±20%

Length

7.3mm

Height

2.8mm

Maximum Operating Temperature

+150°C

Dimensions

7.3 x 4.3 x 2.8mm

Series

T599

Electrolyte Type

Solid

Polarised

Polar

Lifetime

2000h

Leakage Current

60 μA

Minimum Operating Temperature

-55°C

Automotive Standard

AEC-Q200

Ripple Current

2.2A

Dissipation Factor

10%

COO (Country of Origin):
CN
The Kemet Electronics 150μF tantalum capacitor and 45mOhm of ESR has a high humidity and high temperature polymer electrolytic capacitor deliver higher capacitance and ESR stability under harsh environmental condition. In this at 85% RH rated voltage and to fully comply with the AEC-Q200 qualification testing with maximum operational temperature life up to 150ºC respectively.

Halogen-free epoxy and RoHS compliant
Tolerance capacitance is ±20%
Tape & reel standard packaging per EIA 481
