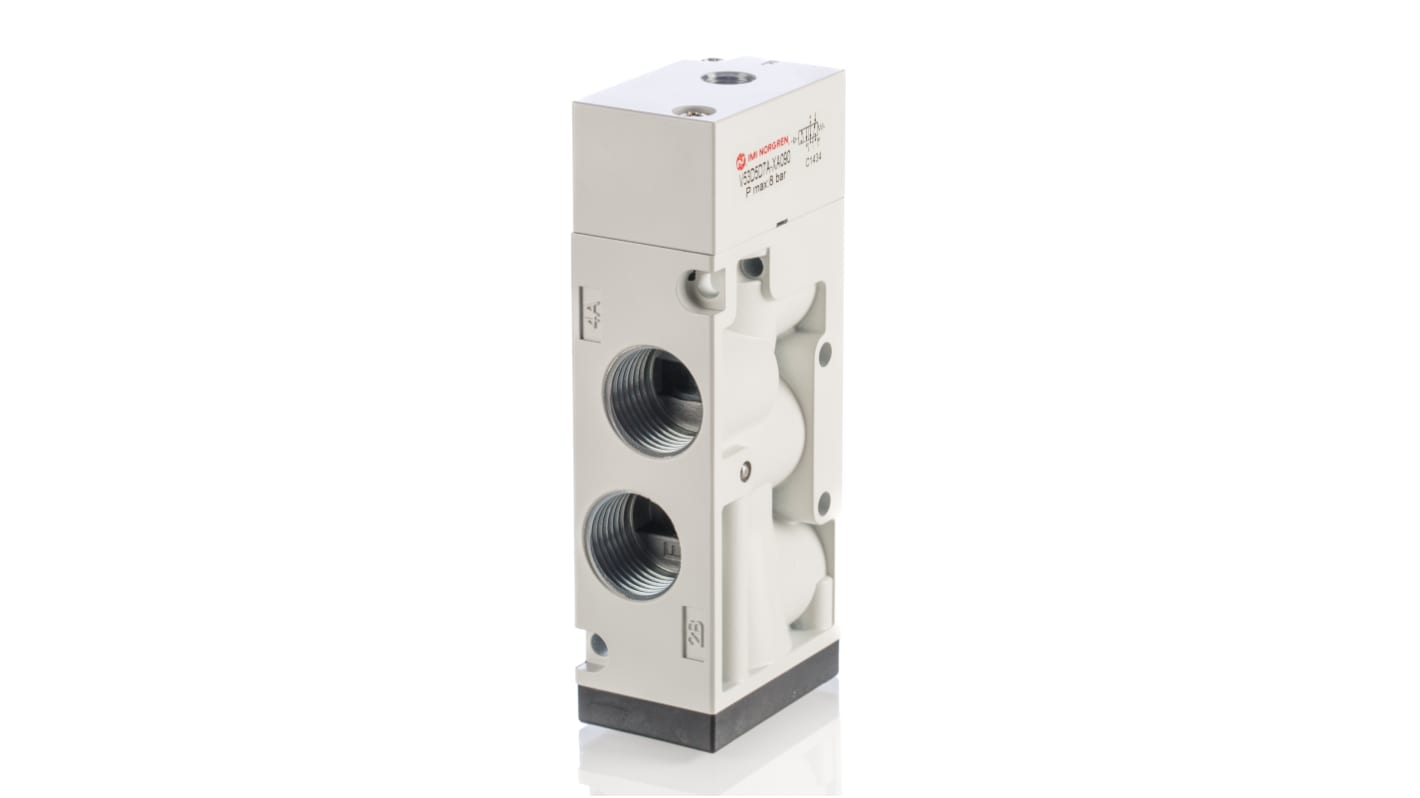

RS PRO Pneumatic Solenoid Valve - Pilot/Spring G 1/2 V53 Series

View all Pneumatic Solenoid Valves

Subtotal (1 unit)*

£204.70

(exc. VAT)

£245.64

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£204.70

*price indicative

Pneumatic Solenoid Valves to Solenoid Valve Coils
Need Coils for Your Solenoid Valves?
Pneumatic solenoid valves rely on compatible coils to operate efficiently. If you're browsing valves, don’t forget to check out our range of solenoid valve coils—designed to deliver reliable actuation and optimal performance. Whether you're replacing a coil or building a new system, pairing your valve with the right coil ensures smooth and responsive control.
Shop Now
RS Stock No.:
907-6413
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Connection Port Thread

G 1/2

Actuation Type

Pilot/Spring

Manufacturer Series

V53

Mounting Style

Inline, Manifold

Number of Ports

5

Body Material

Die Cast Aluminium

Maximum Flow Rate

2480L/min

Minimum Operating Pressure

0bar

Maximum Operating Pressure

8bar

Number of Positions

2

Minimum Operating Temperature

-5°C

Thread Size

1/2in

Maximum Operating Temperature

+60°C

Configuration

5/2

Thread Standard

G

Special Features

Compact and Robust Design, High Flow in-Line Valves, Low Power Energy Efficient Solenoids

COO (Country of Origin):
TW

5/2 Inline Control Valves


RS Components range of inline pneumatic control valves are available in either 3/2 or 5/2 functions with a choice of either solenoid or air operation. They are suitable for both lubricated and non-lubricated air supply. Using a compact and robust soft-seal spool design that has proven to be robust and reliable. These pneumatic control valves have been engineered to provide a quality pneumatic valve at a competitive price without compromise.

5/2 or 3/2 port options
Available as solenoid or air controlled
Compact & reliable soft-spool design
480 to 2480 l/min flow rates
Inline or manifold mountable
Push or turn to lock manual overrides
Energy efficient


RS Control Valves and Accessories


RS Spool Valves, Spool Valve Bodies, NAMUR Solenoid-Spring Valves, Power Take-Off (PTO) Valves, Intrinsically Safe (ATEX approved) Solenoid-Spring Valves and the Filter-Regulator-Lubricator (FRL) Portable Air Cradle, suitable for use within a variety of general pneumatic, industrial, automation and control applications.
