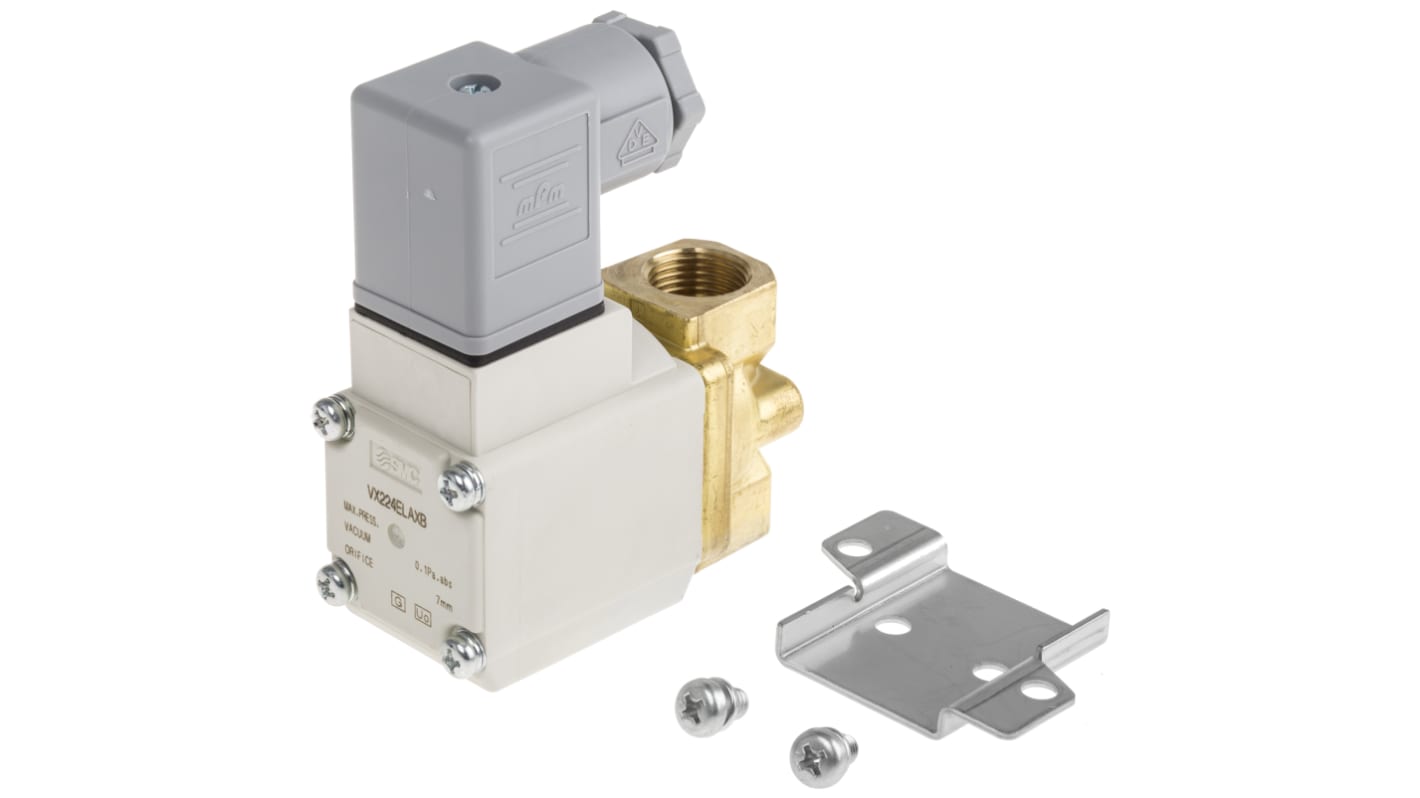

SMC 2/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/4 VX22 Series 230V ac

View all Pneumatic Solenoid Valves
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
893-0094
Mfr. Part No.:
VX224ELAXB
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Function

2/2

Connection Port Thread

G 1/4

Actuation Type

Solenoid/Spring

Manufacturer Series

VX22

Solenoid Voltage

230V ac

Number of Ports

2

Body Material

Brass

Solenoid Power Consumption

9.5VA

Thread Size

1/4in

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+60°C

Maximum Operating Pressure

1 MPa

Number of Positions

2

Configuration

Normally Closed

Special Features

Applicable for Vacuum Use, Low Power Consumption

Thread Standard

G

COO (Country of Origin):
JP

VX21/22/23 Process Valves


SMC VX2 solenoid valves air suitable for use with air, medium vacuum, water or oil in either brass, stainless steel or resin bodies. The VX2 valves have a 20% greater flow rate than conventional 2-port solenoid valves and are fitted with a rubber bumper to reduce metal noise during operation. Resin Body versions are use SMC one-touch fittings to aid fast installation.

Features and Benefits


• 20% more flow then conventional SMC 2 port solenoid valves
• 30% Lighter than previous version
• 10% Smaller
• Dust tight, water-jet proof casing
• Direct operated poppet type
• Quieter operation
