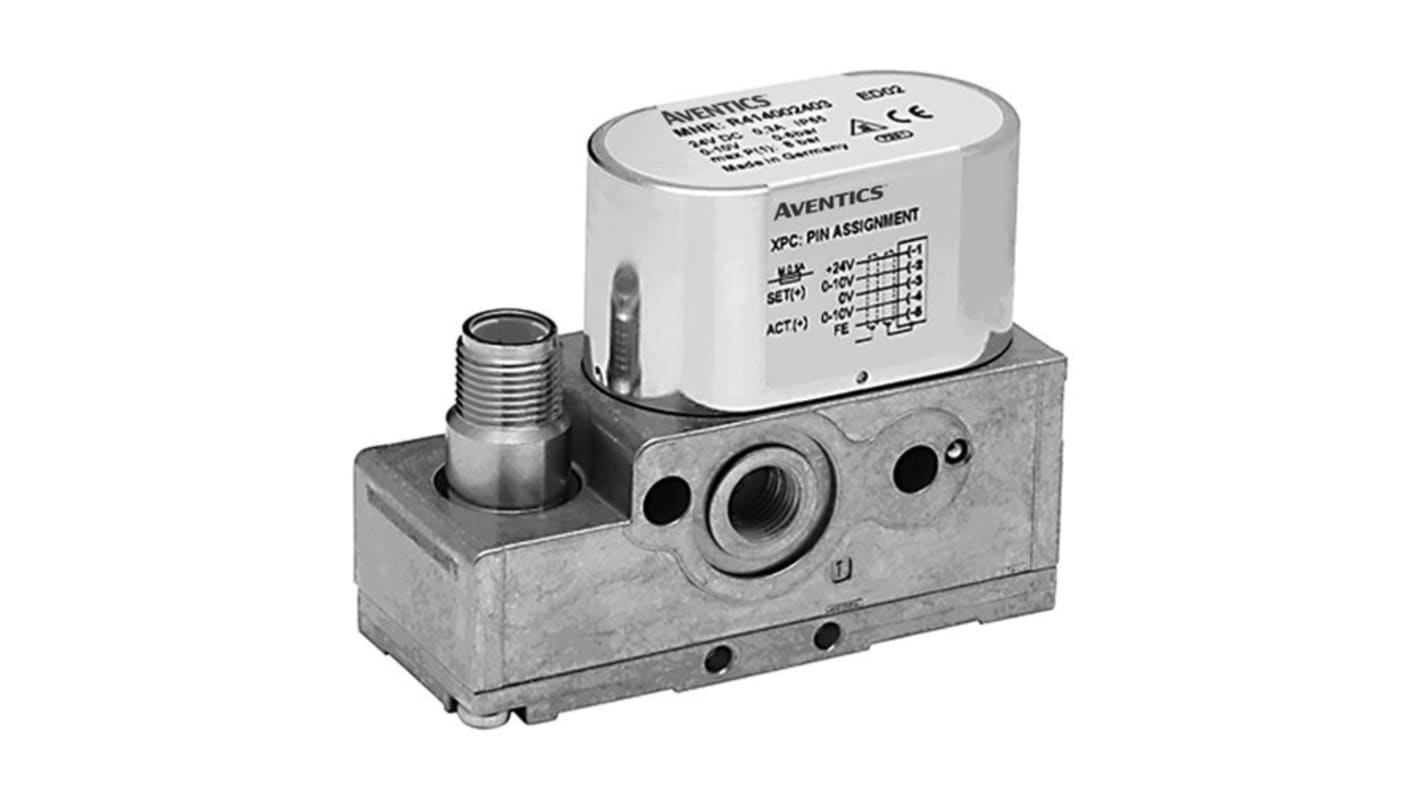

EMERSON – AVENTICS 3/3 Pneumatic Solenoid Valve - Solenoid/Solenoid G 1/8 ED02 Series 24V dc
- RS Stock No.:
- 703-6463
- Mfr. Part No.:
- R414002411
- Brand:
- EMERSON ? AVENTICS
Bulk discount available
Subtotal (1 unit)*
£506.19
(exc. VAT)
£607.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £506.19 |
| 5 + | £490.49 |
*price indicative
- RS Stock No.:
- 703-6463
- Mfr. Part No.:
- R414002411
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? AVENTICS | |
| Function | 3/3 | |
| Connection Port Thread | G 1/8 | |
| Actuation Type | Solenoid/Solenoid | |
| Manufacturer Series | ED02 | |
| Mounting Style | Manifold | |
| Solenoid Voltage | 24V dc | |
| Solenoid Fitted | Yes | |
| Body Material | Aluminium, Chromated Steel | |
| Maximum Flow Rate | 100L/min | |
| Minimum Operating Pressure | 10bar | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Pressure | 12bar | |
| Thread Size | 1/8in | |
| Thread Standard | G | |
Select all | ||
|---|---|---|
Brand EMERSON ? AVENTICS | ||
Function 3/3 | ||
Connection Port Thread G 1/8 | ||
Actuation Type Solenoid/Solenoid | ||
Manufacturer Series ED02 | ||
Mounting Style Manifold | ||
Solenoid Voltage 24V dc | ||
Solenoid Fitted Yes | ||
Body Material Aluminium, Chromated Steel | ||
Maximum Flow Rate 100L/min | ||
Minimum Operating Pressure 10bar | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Pressure 12bar | ||
Thread Size 1/8in | ||
Thread Standard G | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
Series ED02 Pressure Regulator
Poppet type valve
Analogue control 0-10V or 4-20mA
<0.05 bar hysteresis
IP65
0 °C → +50 °C
M12, 5 pin electrical plug connections
Requires oil free (0-1mg/m3 max) dry air filtered to 50μm
Analogue control 0-10V or 4-20mA
<0.05 bar hysteresis
IP65
0 °C → +50 °C
M12, 5 pin electrical plug connections
Requires oil free (0-1mg/m3 max) dry air filtered to 50μm
