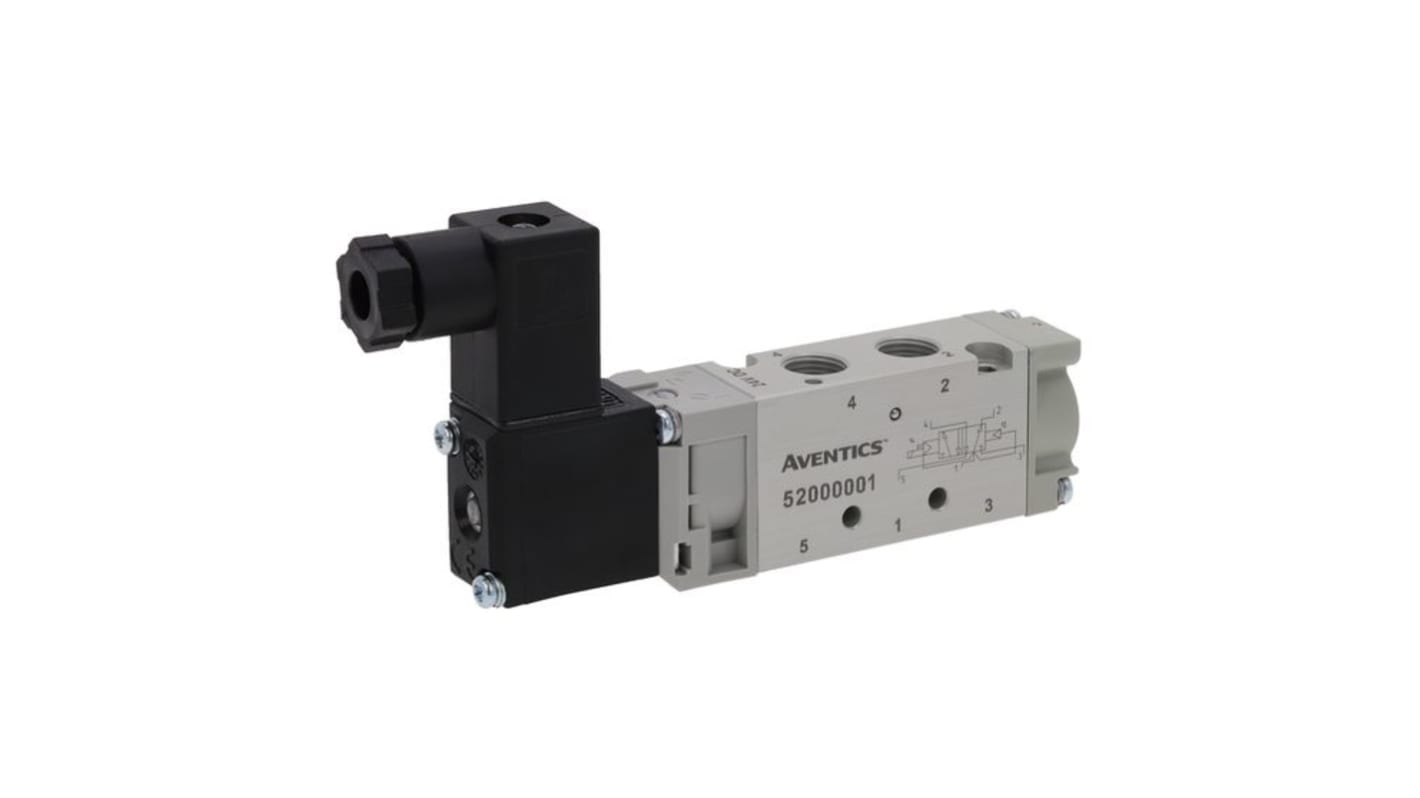

EMERSON – ASCO 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 1/8 520 Series 24V dc
- RS Stock No.:
- 302-6314
- Mfr. Part No.:
- 52000001
- Brand:
- EMERSON ? ASCO
Bulk discount available
Subtotal (1 unit)*
£110.41
(exc. VAT)
£132.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 29 unit(s) ready to ship
- Plus 49 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £110.41 |
| 5 + | £107.11 |
*price indicative
- RS Stock No.:
- 302-6314
- Mfr. Part No.:
- 52000001
- Brand:
- EMERSON ? ASCO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? ASCO | |
| Function | 5/2 | |
| Connection Port Thread | G 1/8 | |
| Actuation Type | Solenoid/Pilot | |
| Manufacturer Series | 520 | |
| Mounting Style | Manifold | |
| Solenoid Voltage | 24V dc | |
| Solenoid Fitted | Yes | |
| Number of Ports | 5/2 | |
| Body Material | Anodised Aluminium | |
| Maximum Flow Rate | 600L/min | |
| Solenoid Power Consumption | 1.6W | |
| Minimum Operating Pressure | 1.5bar | |
| Maximum Operating Temperature | +50°C | |
| Thread Size | 1/8in | |
| Maximum Operating Pressure | 8bar | |
| Minimum Operating Temperature | +5°C | |
| Thread Standard | G | |
Select all | ||
|---|---|---|
Brand EMERSON ? ASCO | ||
Function 5/2 | ||
Connection Port Thread G 1/8 | ||
Actuation Type Solenoid/Pilot | ||
Manufacturer Series 520 | ||
Mounting Style Manifold | ||
Solenoid Voltage 24V dc | ||
Solenoid Fitted Yes | ||
Number of Ports 5/2 | ||
Body Material Anodised Aluminium | ||
Maximum Flow Rate 600L/min | ||
Solenoid Power Consumption 1.6W | ||
Minimum Operating Pressure 1.5bar | ||
Maximum Operating Temperature +50°C | ||
Thread Size 1/8in | ||
Maximum Operating Pressure 8bar | ||
Minimum Operating Temperature +5°C | ||
Thread Standard G | ||
RoHS Status: Exempt
519-520-521 series mini valves, assembly only or on manifold
