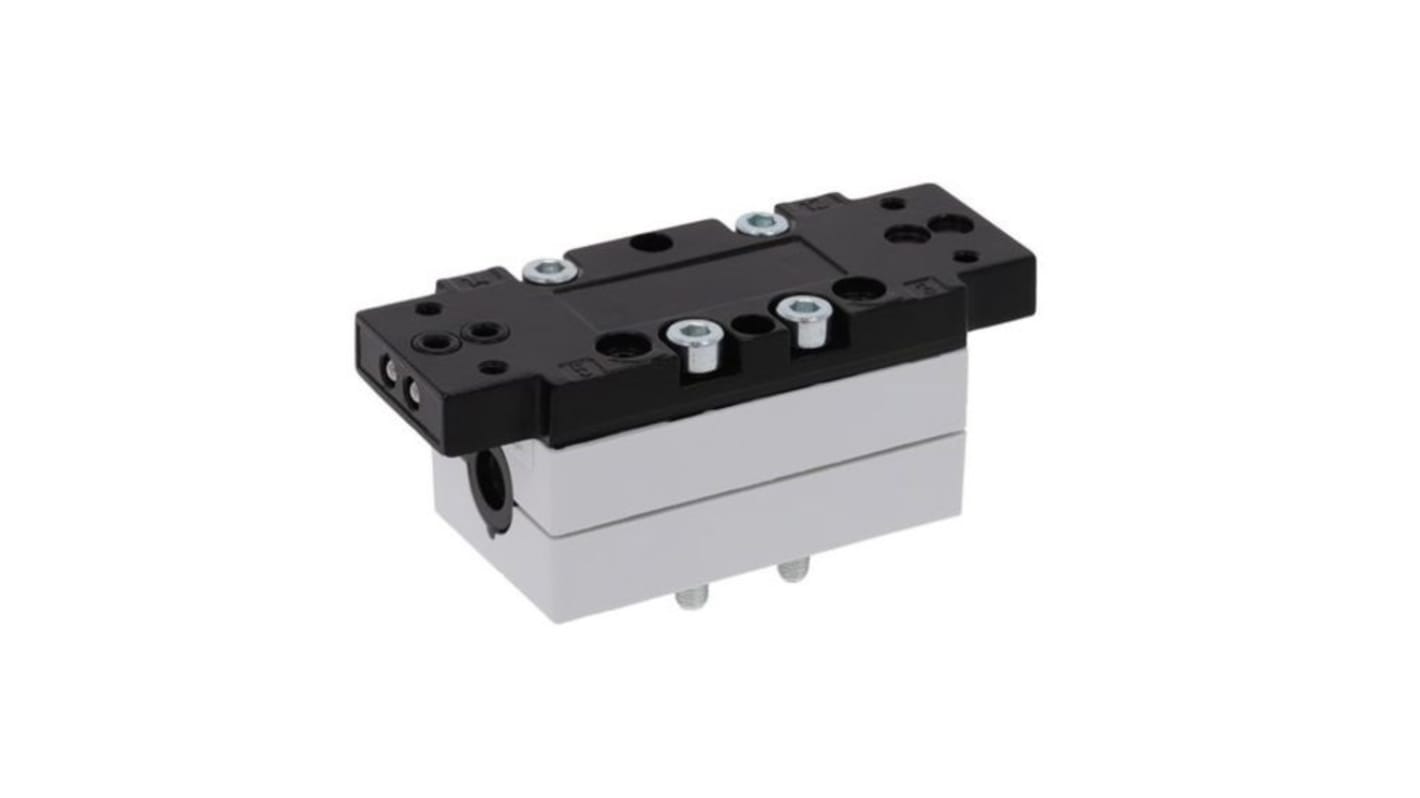

EMERSON – AVENTICS 5/3 Center Closed Pneumatic Solenoid Valve - Solenoid G 1/4 581 Series

View all Pneumatic Solenoid Valves

Subtotal (1 unit)*

£131.94

(exc. VAT)

£158.33

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£131.94

*price indicative

Pneumatic Solenoid Valves to Solenoid Valve Coils
Need Coils for Your Solenoid Valves?
Pneumatic solenoid valves rely on compatible coils to operate efficiently. If you're browsing valves, don’t forget to check out our range of solenoid valve coils—designed to deliver reliable actuation and optimal performance. Whether you're replacing a coil or building a new system, pairing your valve with the right coil ensures smooth and responsive control.
Shop Now
RS Stock No.:
257-8554
Mfr. Part No.:
5811480080
Brand:
EMERSON ? AVENTICS
Find similar products by selecting one or more attributes.
Select all

Brand

EMERSON ? AVENTICS

Function

5/3 Center Closed

Connection Port Thread

G 1/4

Actuation Type

Solenoid

Manufacturer Series

581

Mounting Style

Plate Connection

COO (Country of Origin):
HU
The Aventics V581 series directional valve has five port, three position, it is actuated by spool valve, housing made from polyamide and valve seals made from acrylonitrile butadiene rubber, valve has air spring return for its starting function when de-energised and valve has mounting holes according to CNOMO standards with maximum operating pressure is 10 bar.

Type spool type
Nominal flow Qn 1100 l/min
Maximum particle size 50 μm
Mounting screw with hexagon socket
