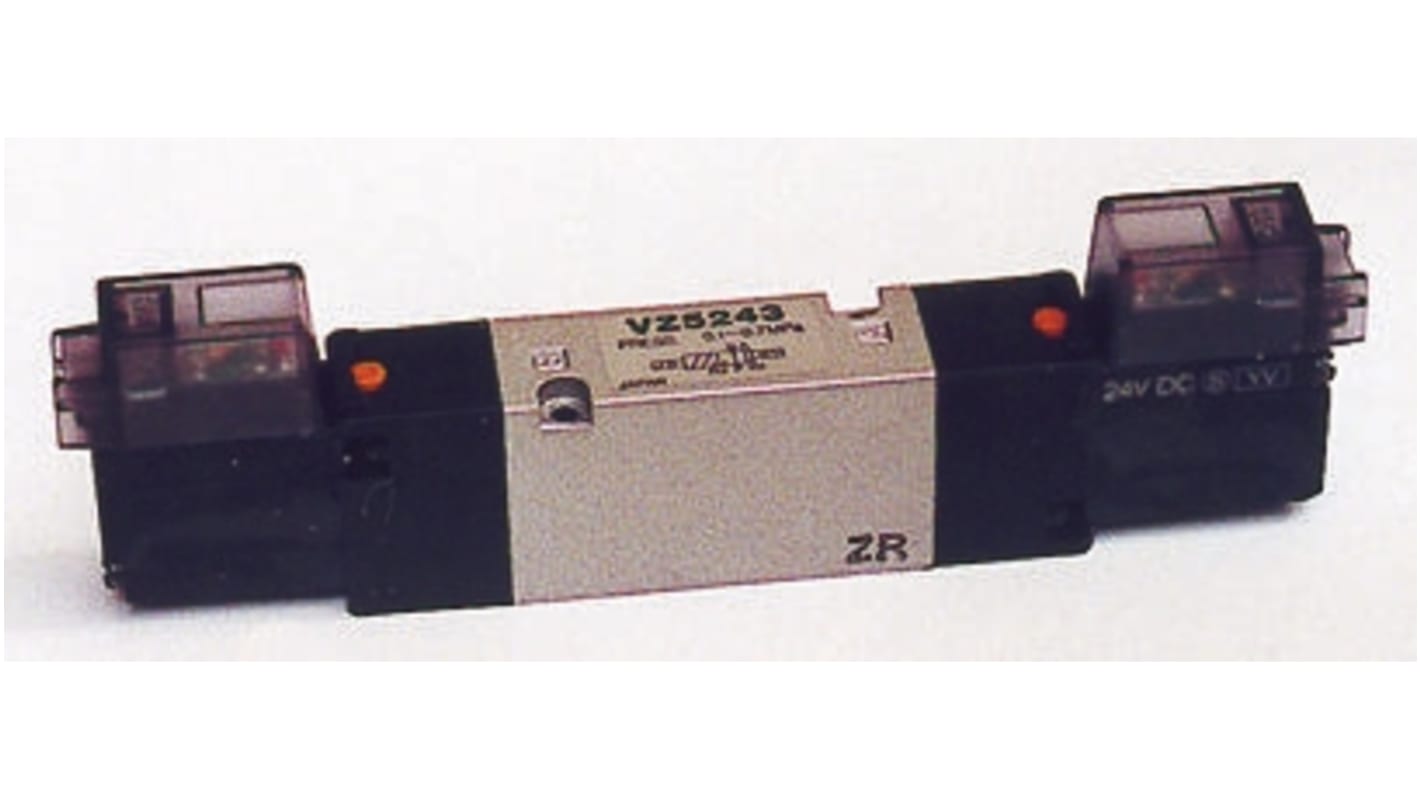

SMC 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot VZ5000 Series 24V dc

Image representative of range

View all Pneumatic Solenoid Valves
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Pneumatic Solenoid Valves to Solenoid Valve Coils
Need Coils for Your Solenoid Valves?
Pneumatic solenoid valves rely on compatible coils to operate efficiently. If you're browsing valves, don’t forget to check out our range of solenoid valve coils—designed to deliver reliable actuation and optimal performance. Whether you're replacing a coil or building a new system, pairing your valve with the right coil ensures smooth and responsive control.
Shop Now
RS Stock No.:
238-4300
Mfr. Part No.:
VZ5243-5MOZ
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Function

5/2

Actuation Type

Solenoid/Pilot

Manufacturer Series

VZ5000

Mounting Style

Manifold

Solenoid Voltage

24V dc

Solenoid Fitted

Yes

Number of Ports

5/2

Body Material

Die Cast Aluminium

Solenoid Power Consumption

2.1W

Minimum Operating Pressure

0.1MPa

Maximum Operating Pressure

0.7 MPa

Maximum Operating Temperature

+50°C

Minimum Operating Temperature

-10°C

Thread Standard

Rc

RoHS Status: Not Applicable

COO (Country of Origin):
FR

5//2 and 5//3 valves with G1/8" connections, assembly on manifold


Range of 5//2 and 5//3 valves with electrical control for assembly on G1/8" manifold.
Connector to be ordered separately.
Manual pulse control.


SMC SY & VZ Series


These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.
