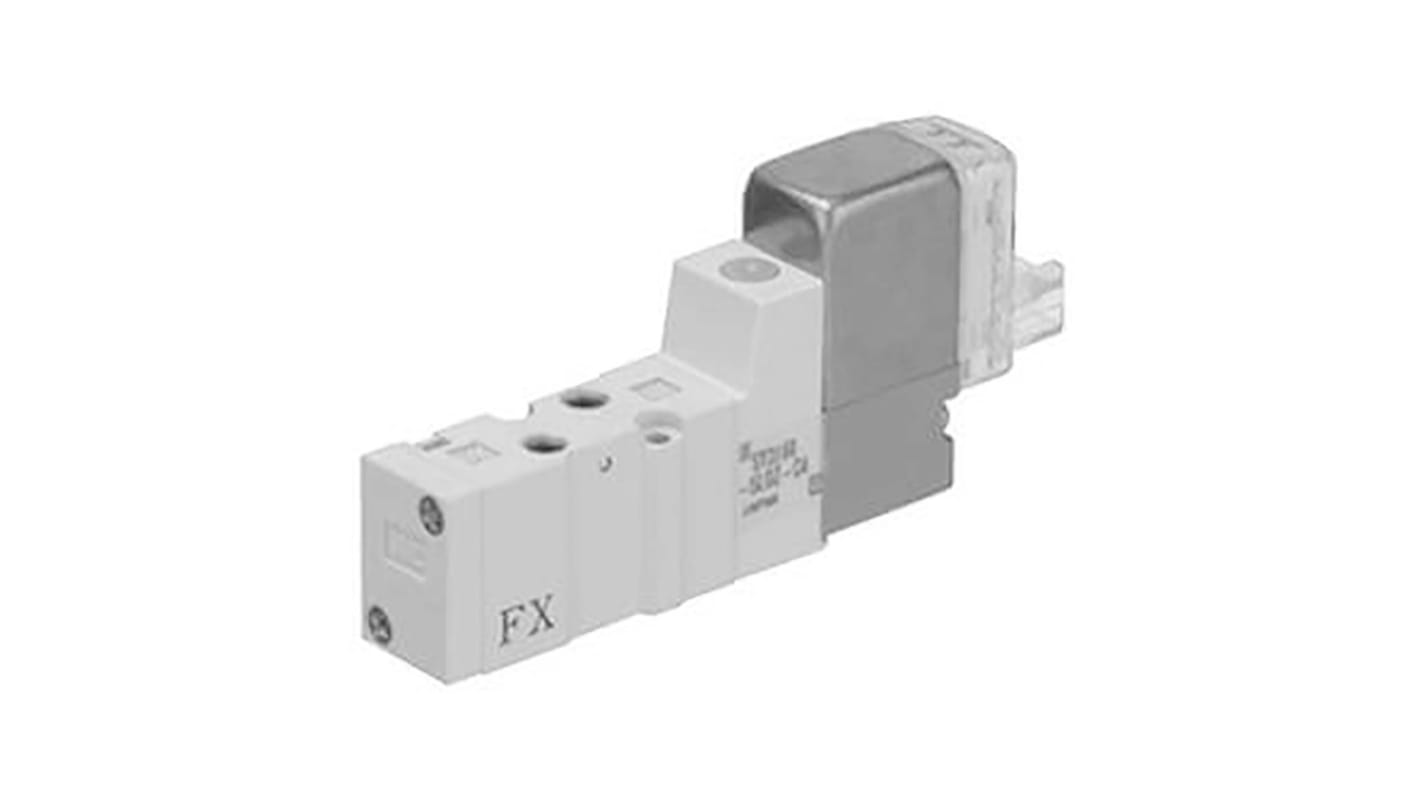

SMC 5/2 Solenoid Pilot Valve - Solenoid SYJ3000 Series
- RS Stock No.:
- 196-4599
- Mfr. Part No.:
- SYJ3233-5LOZ-Q
- Brand:
- SMC
4 In stock for delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£72.63
(exc. VAT)
£87.16
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | £72.63 |
| 5 - 9 | £69.72 |
| 10 + | £68.27 |
- RS Stock No.:
- 196-4599
- Mfr. Part No.:
- SYJ3233-5LOZ-Q
- Brand:
- SMC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Fluid: air
Operating pressure range: 0.15 - 0.7MPa
Effective area mm 2 (Cv): 5 port body ported 0.9 (0.05)
5 port base mounted w/sub-plate 1.8 (0.1)
Coil rated voltage: 3, 5, 6, 12, 24VDC,
100, 110, 200, 220VAC
Ambient & fluid temp: max. 50°C
Operating pressure range: 0.15 - 0.7MPa
Effective area mm 2 (Cv): 5 port body ported 0.9 (0.05)
5 port base mounted w/sub-plate 1.8 (0.1)
Coil rated voltage: 3, 5, 6, 12, 24VDC,
100, 110, 200, 220VAC
Ambient & fluid temp: max. 50°C
Specifications
Attribute | Value |
|---|---|
| Function | 5/2 |
| Actuation Type | Solenoid |
| Manufacturer Series | SYJ3000 |
| Solenoid Fitted | Yes |
| Number of Ports | 5 |
| Body Material | Die Cast Zinc |
| Maximum Flow Rate | 122L/min |
| Solenoid Power Consumption | 0.35W |
| Minimum Operating Pressure | 0.1MPa |
| Maximum Operating Pressure | 0.7 MPa |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -10°C |
| Number of Positions | 2 |
| Configuration | 5/2 |
| Thread Standard | Rc |
