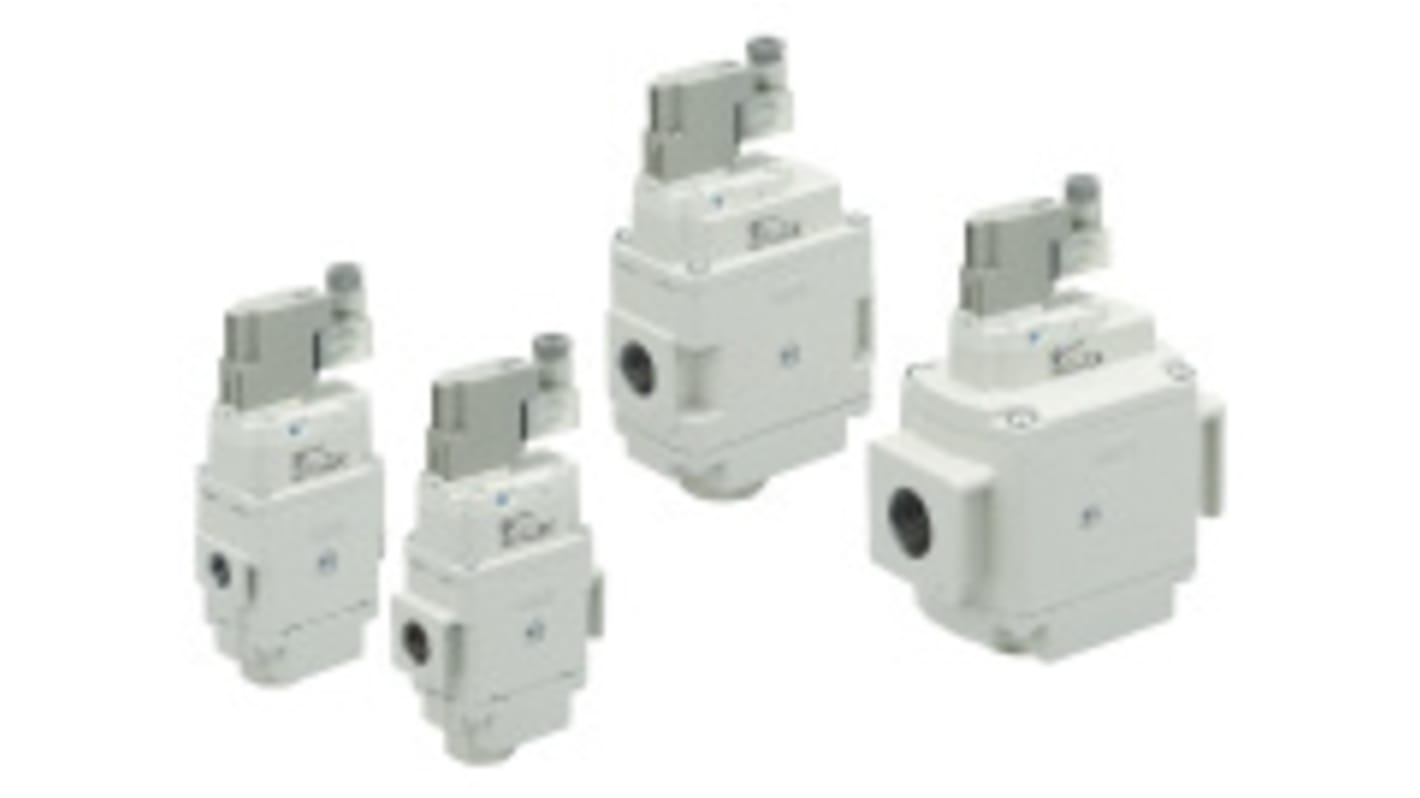

SMC Pneumatic Solenoid Valve - Start-Up Valve G 1/2 AV 4000 Series 24V dc
- RS Stock No.:
- 176-5384
- Mfr. Part No.:
- AV4000-F04-5YOB-A
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£158.61
(exc. VAT)
£190.33
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £158.61 |
5 + | £150.67 |
*price indicative
- RS Stock No.:
- 176-5384
- Mfr. Part No.:
- AV4000-F04-5YOB-A
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Connection Port Thread | G 1/2 | |
Actuation Type | Start-Up Valve | |
Manufacturer Series | AV 4000 | |
Mounting Style | Stand-Alone | |
Solenoid Voltage | 24V dc | |
Solenoid Fitted | Yes | |
Body Material | Die Cast Aluminium | |
Solenoid Power Consumption | 0.35 W, 0.45 (With Light) W | |
Minimum Operating Pressure | 0.2MPa | |
Thread Size | 1/2in | |
Minimum Operating Temperature | 0°C | |
Maximum Operating Pressure | 1 MPa | |
Maximum Operating Temperature | +50°C | |
Number of Positions | 3 | |
Thread Standard | G | |
Select all | ||
---|---|---|
Brand SMC | ||
Connection Port Thread G 1/2 | ||
Actuation Type Start-Up Valve | ||
Manufacturer Series AV 4000 | ||
Mounting Style Stand-Alone | ||
Solenoid Voltage 24V dc | ||
Solenoid Fitted Yes | ||
Body Material Die Cast Aluminium | ||
Solenoid Power Consumption 0.35 W, 0.45 (With Light) W | ||
Minimum Operating Pressure 0.2MPa | ||
Thread Size 1/2in | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Pressure 1 MPa | ||
Maximum Operating Temperature +50°C | ||
Number of Positions 3 | ||
Thread Standard G | ||
- COO (Country of Origin):
- JP
Start-up valve for low speed air supply to gradually raise
Initial pressure in an air system and for quick exhaust by cutting off air supply
Power consumption: 0.35 W
Improved flow rate characteristics: Up to 2.3 times C[dm3/(s·bar)]: 9.2
Energy saving: No air flow when the main valve is switched.
Improved adjustability at low speed air supply
Smaller profile and less work hours due to integrated silencer
Initial pressure in an air system and for quick exhaust by cutting off air supply
Power consumption: 0.35 W
Improved flow rate characteristics: Up to 2.3 times C[dm3/(s·bar)]: 9.2
Energy saving: No air flow when the main valve is switched.
Improved adjustability at low speed air supply
Smaller profile and less work hours due to integrated silencer
