RS PRO 3/2 NC Pneumatic Solenoid Valve - Solenoid G 1/4 12 V dc, 24 V ac/dc, 110 V ac, 220 V ac
- RS Stock No.:
- 176-2113
- Brand:
- RS PRO
Subtotal (1 unit)*
£76.15
(exc. VAT)
£91.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
- Plus 17 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £76.15 |
*price indicative
- RS Stock No.:
- 176-2113
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Function | 3/2 NC | |
| Connection Port Thread | G 1/4 | |
| Actuation Type | Solenoid | |
| Mounting Style | Base Mount | |
| Solenoid Voltage | 12 V dc, 24 V ac/dc, 110 V ac, 220 V ac | |
| Solenoid Fitted | Yes | |
| Number of Ports | 3/2 | |
| Body Material | Aluminium | |
| Maximum Flow Rate | 1200NL/min | |
| Solenoid Power Consumption | 2 W, 3VA | |
| Minimum Operating Pressure | 2bar | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Pressure | 10bar | |
| Number of Positions | 1 | |
| Thread Size | 1/4in | |
| Configuration | 3/2 | |
| Thread Standard | G | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Function 3/2 NC | ||
Connection Port Thread G 1/4 | ||
Actuation Type Solenoid | ||
Mounting Style Base Mount | ||
Solenoid Voltage 12 V dc, 24 V ac/dc, 110 V ac, 220 V ac | ||
Solenoid Fitted Yes | ||
Number of Ports 3/2 | ||
Body Material Aluminium | ||
Maximum Flow Rate 1200NL/min | ||
Solenoid Power Consumption 2 W, 3VA | ||
Minimum Operating Pressure 2bar | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Pressure 10bar | ||
Number of Positions 1 | ||
Thread Size 1/4in | ||
Configuration 3/2 | ||
Thread Standard G | ||
- COO (Country of Origin):
- IT

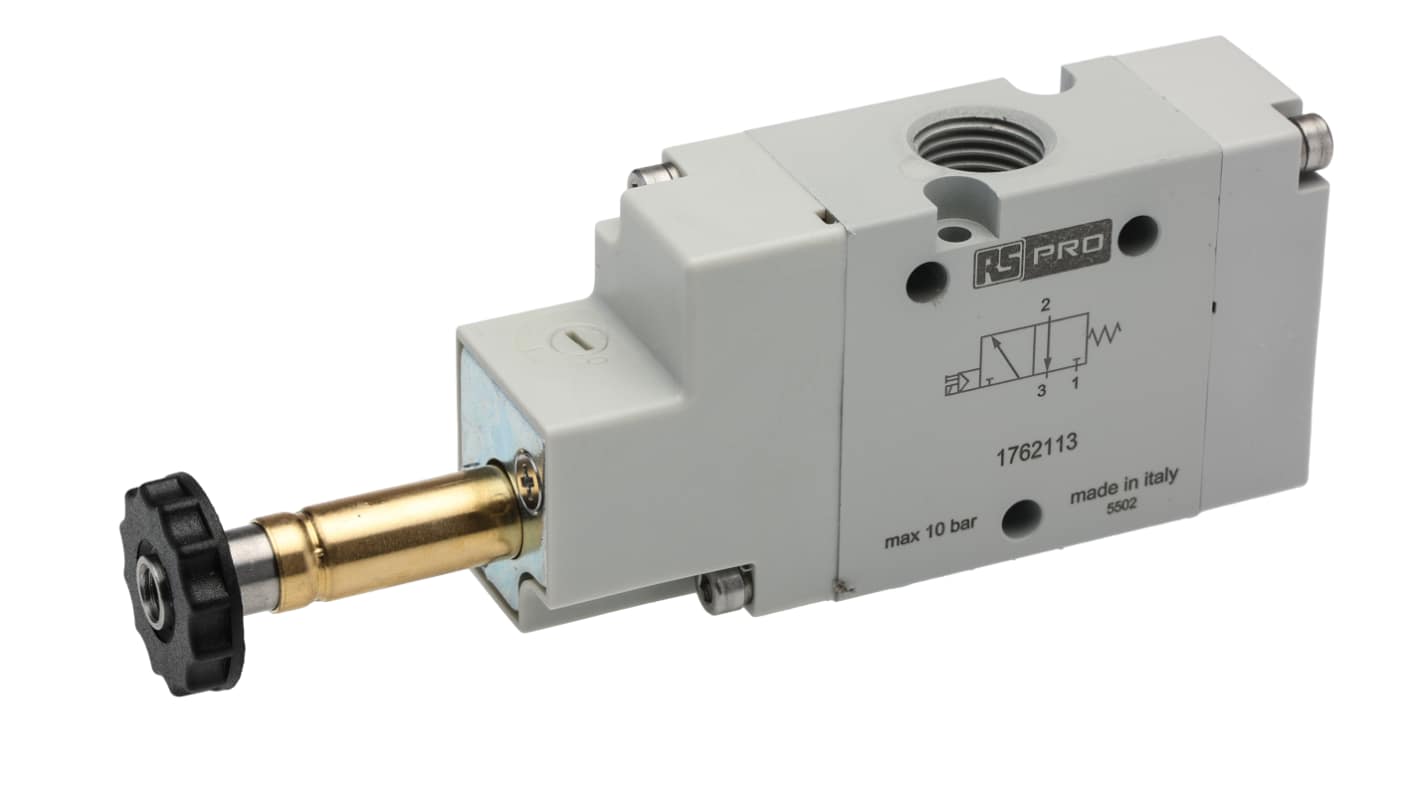

RS PRO 3/2 Normally Closed Pneumatic Control Valve Solenoid G 1/4 in
If you're looking for a pneumatic control valve to control airflow in a pneumatic system, this 3/2 valve from the RS PRO range is both robust and versatile. It's configured with three ports and two switching positions, with normally closed operation requiring activation from a solenoid to open it.
Designed for base mounting, this solenoid valve is built with a lightweight yet strong aluminium body. It fits onto a G 1/4 in thread and can handle a flow rate of 1,200 litres a minute. This valve also offers a short changeover time and low changeover pressure.
The solenoid is remarkably energy-efficient and consumes just 2 W of power or 3 VA of apparent power. This kind of valve is commonly used in packaging applications as well as in the chemical and pharmaceutical sectors.
Designed for base mounting, this solenoid valve is built with a lightweight yet strong aluminium body. It fits onto a G 1/4 in thread and can handle a flow rate of 1,200 litres a minute. This valve also offers a short changeover time and low changeover pressure.
The solenoid is remarkably energy-efficient and consumes just 2 W of power or 3 VA of apparent power. This kind of valve is commonly used in packaging applications as well as in the chemical and pharmaceutical sectors.
Features and Benefits
• Pneumatic control valve
• G 1/4 in connection port thread
• 3/2 configuration – three ports and two positions
• Normally closed operation
• Base mounting
• Solenoid actuation
• Comes with solenoid fitted
• Solenoid voltage of 12 V DC, 24 V AC/DC, 110 V AC, 220 V AC
• Solenoid power consumption of 2W, 3 VA
• Maximum flow rate of 1,200 L/min
• Maximum operating temperature of +60˚C
• Minimum operating temperature of -10˚C
• Maximum operating pressure of 10 bar
• Minimum operating pressure of 2 bar
• Aluminium body
• Thread size of 6.35 mm
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
• G 1/4 in connection port thread
• 3/2 configuration – three ports and two positions
• Normally closed operation
• Base mounting
• Solenoid actuation
• Comes with solenoid fitted
• Solenoid voltage of 12 V DC, 24 V AC/DC, 110 V AC, 220 V AC
• Solenoid power consumption of 2W, 3 VA
• Maximum flow rate of 1,200 L/min
• Maximum operating temperature of +60˚C
• Minimum operating temperature of -10˚C
• Maximum operating pressure of 10 bar
• Minimum operating pressure of 2 bar
• Aluminium body
• Thread size of 6.35 mm
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
