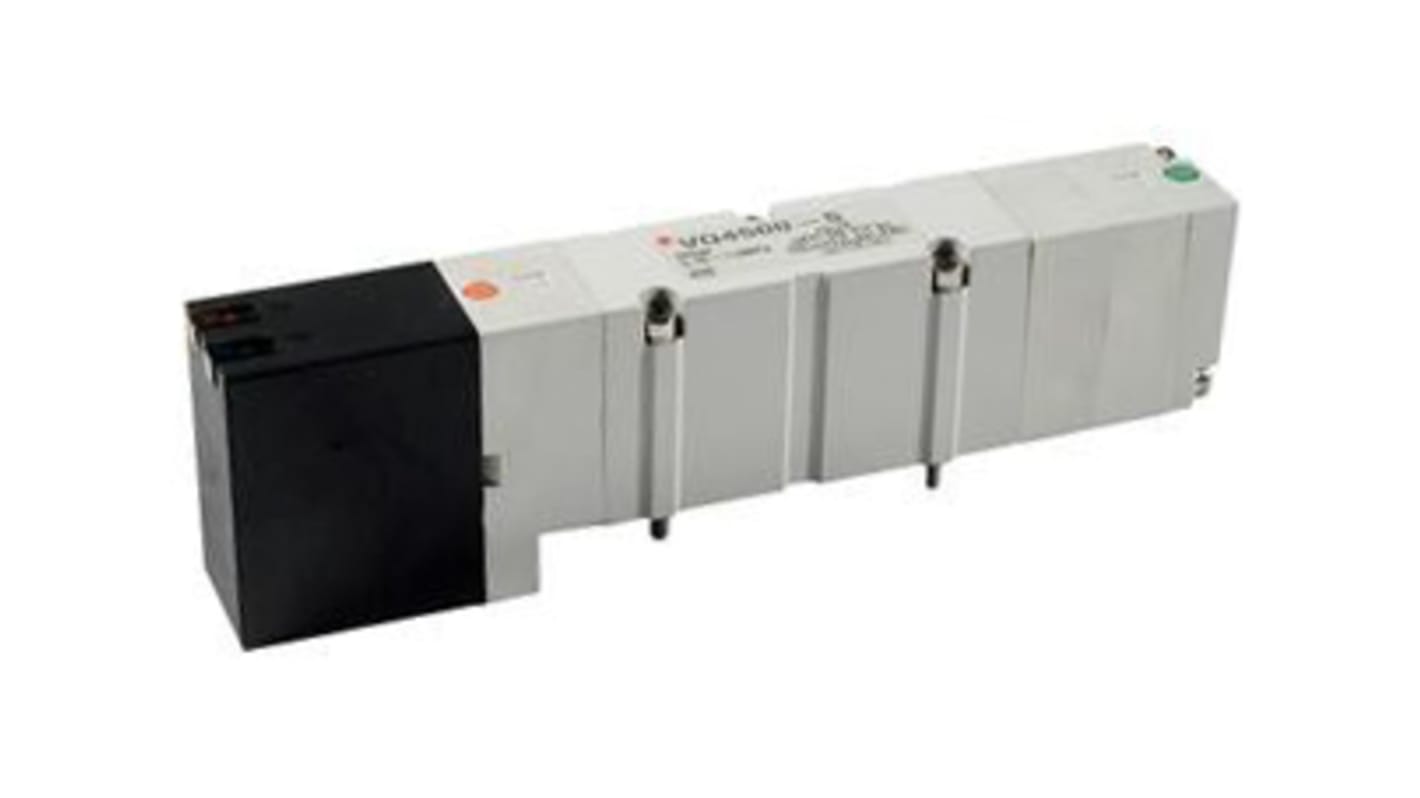

SMC 2/1 Pneumatic Solenoid/Pilot-Operated Control Valve - Solenoid/Solenoid VQ Series 24V dc

View all Pneumatic Solenoid Valves
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Pneumatic Solenoid Valves to Solenoid Valve Coils
Need Coils for Your Solenoid Valves?
Pneumatic solenoid valves rely on compatible coils to operate efficiently. If you're browsing valves, don’t forget to check out our range of solenoid valve coils—designed to deliver reliable actuation and optimal performance. Whether you're replacing a coil or building a new system, pairing your valve with the right coil ensures smooth and responsive control.
Shop Now
RS Stock No.:
161-3072
Mfr. Part No.:
VQ4101-5W1-Q
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Function

2/1

Actuation Type

Solenoid/Solenoid

Manufacturer Series

VQ

Mounting Style

Base Mount

Solenoid Voltage

24V dc

Solenoid Fitted

Yes

Number of Ports

5

Body Material

Aluminium

Solenoid Power Consumption

1W

Minimum Operating Pressure

0.15MPa

Minimum Operating Temperature

-5°C

Number of Positions

2

Maximum Operating Temperature

50°C

Configuration

2-Position Single

Maximum Operating Pressure

0.7 MPa

Thread Size

3/8 in, Rc

RoHS Status: Not Applicable

COO (Country of Origin):
JP
VQ valves are ideal for applications requiring high speed, frequent operation, stable response time and long service life. Innovative mounting methods allow valves to be changed without entirely disassembling the manifold. Built-in one-touch fittings save piping time and labor.

Fluid: air/inert gas
Ambient & Fluid Temperature:Metal Seal -10 to 50°C,Rubber Seal -5 to 50°C
Optional IP65 Enclosure
Operating Pressure Range: 0.15 – 1.0MPa
