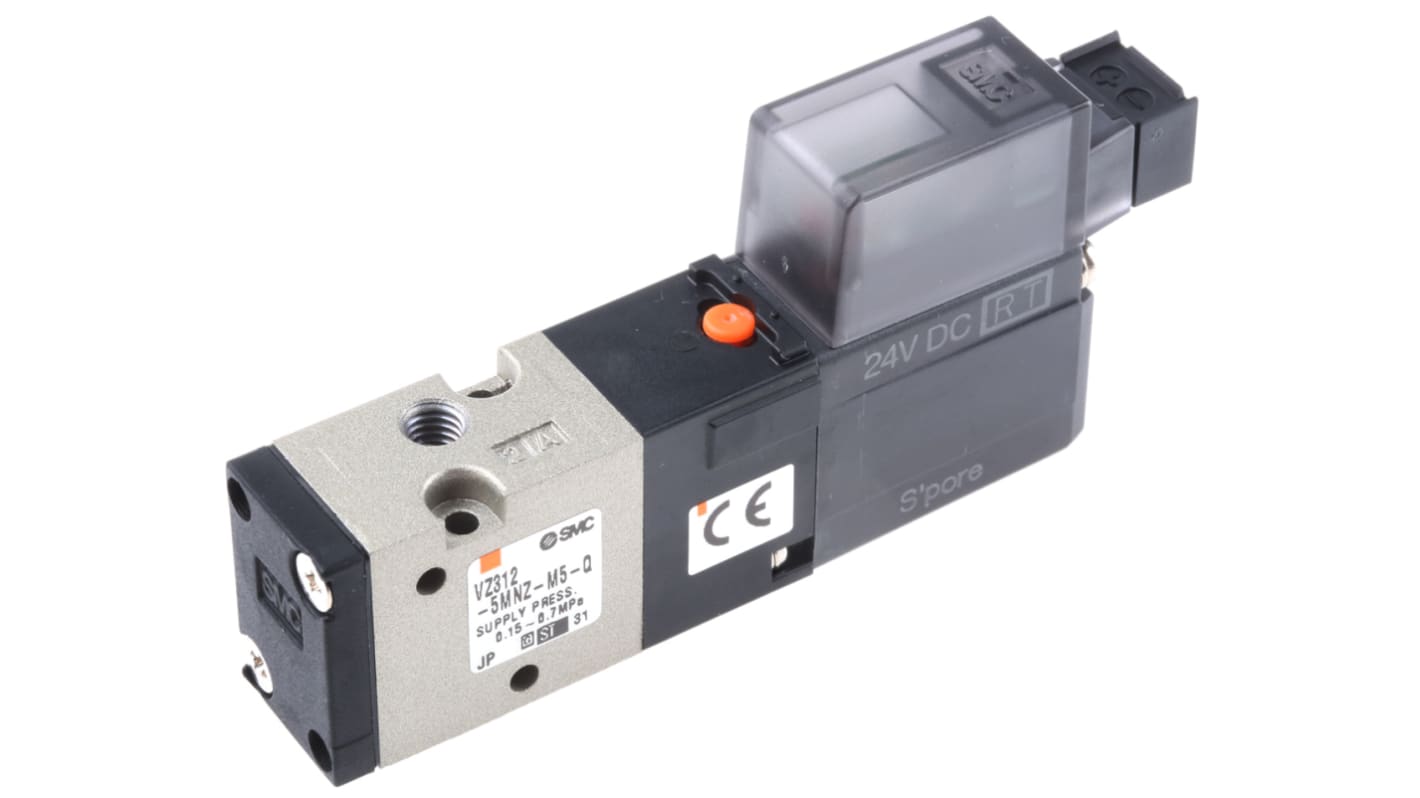

SMC 3/2 Pneumatic Solenoid Valve - Pilot/Pilot Metric M5 VZ300 Series 24V dc
- RS Stock No.:
- 723-028
- Mfr. Part No.:
- VZ312-5MNZ-M5-Q(KIT)
- Brand:
- SMC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 723-028
- Mfr. Part No.:
- VZ312-5MNZ-M5-Q(KIT)
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Function | 3/2 | |
| Connection Port Thread | Metric M5 | |
| Actuation Type | Pilot/Pilot | |
| Manufacturer Series | VZ300 | |
| Mounting Style | Stand-Alone | |
| Solenoid Voltage | 24V dc | |
| Solenoid Fitted | Yes | |
| Number of Ports | 3/2 | |
| Body Material | Die Cast Aluminium | |
| Maximum Flow Rate | 196.3NL/min | |
| Solenoid Power Consumption | 2.1W | |
| Minimum Operating Pressure | 0.15MPa | |
| Maximum Operating Pressure | 0.7 MPa | |
| Maximum Operating Temperature | +50°C | |
| Minimum Operating Temperature | -10°C | |
| Thread Standard | Metric | |
Select all | ||
|---|---|---|
Brand SMC | ||
Function 3/2 | ||
Connection Port Thread Metric M5 | ||
Actuation Type Pilot/Pilot | ||
Manufacturer Series VZ300 | ||
Mounting Style Stand-Alone | ||
Solenoid Voltage 24V dc | ||
Solenoid Fitted Yes | ||
Number of Ports 3/2 | ||
Body Material Die Cast Aluminium | ||
Maximum Flow Rate 196.3NL/min | ||
Solenoid Power Consumption 2.1W | ||
Minimum Operating Pressure 0.15MPa | ||
Maximum Operating Pressure 0.7 MPa | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature -10°C | ||
Thread Standard Metric | ||
Non Compliant
- COO (Country of Origin):
- FR
M5, 1/ 8 in VZ Series Valves
SMC VZ series solenoid valves are a 3-port pneumatic control valve with rubber seals. The VZ series has a low power consumption enabling direct control via a PLC and a max response time of 15+ms. They can be mounted individually or with a manifold and feature a non-locking manual override.
Dust proof
Rubber seals
Rubber seals
SMC SY & VZ Series
These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a Non locking manual override.
