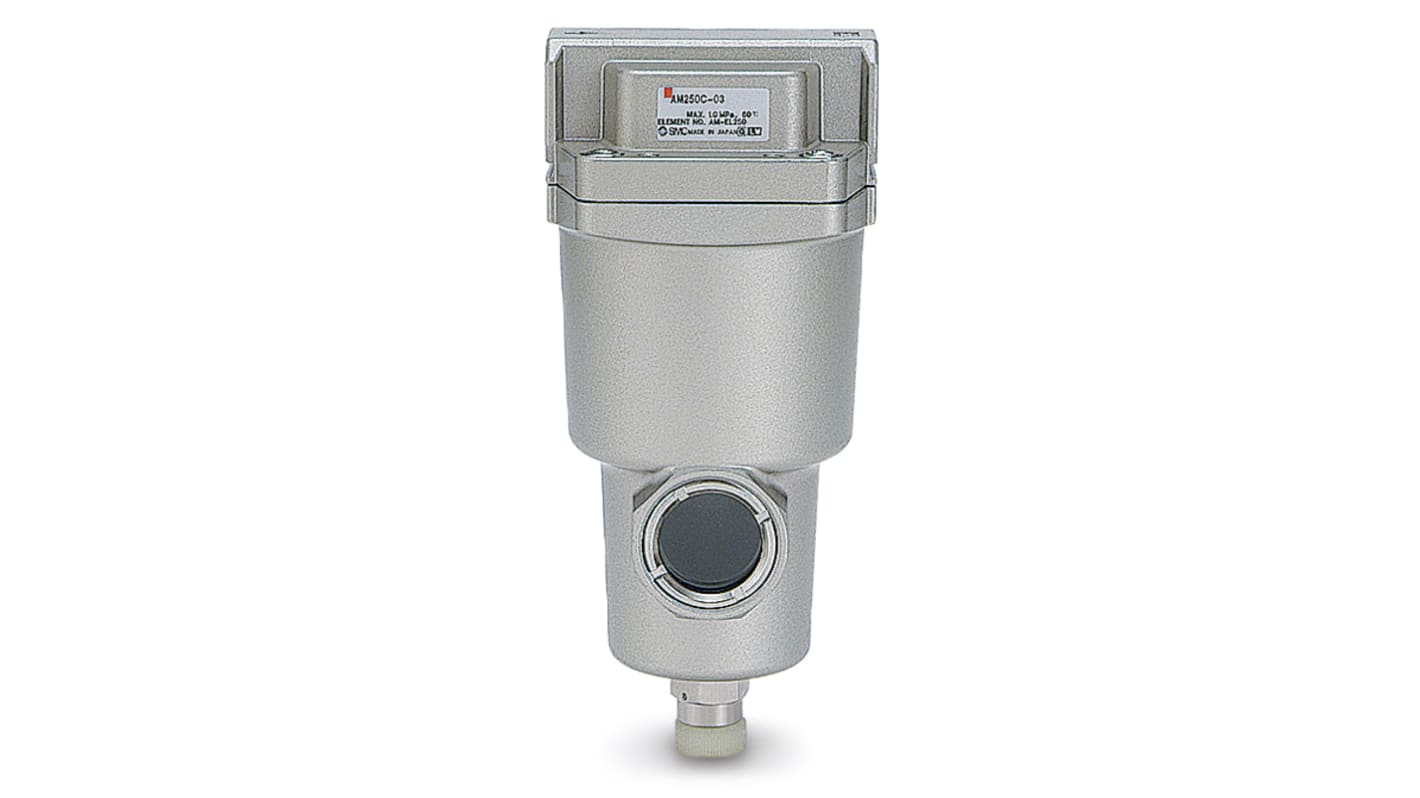

SMC 33.33 L/s 3/4 in Pneumatic Separator, 5 μm filtration, 0.1 MPa to 10 bar

View all Pneumatic Separators

Subtotal (1 unit)*

£476.27

(exc. VAT)

£571.52

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 24 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£476.27

*price indicative

RS Stock No.:
254-8125
Mfr. Part No.:
AMH450C-F06D
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Port Size

3/4 in

Product Type

Pneumatic Separator

Sub Type

Mist Separator

Maximum Flow Rate

33.33L/s

Filtration Size

5μm

Connection Thread Standard

G

Series

AMH

Maximum Operating Pressure

10 bar

Minimum Operating Temperature

5°C

Maximum Operating Temperature

60°C

Minimum Operating Pressure

0.1MPa

Standards/Approvals

No

Overall Width

106mm

Overall Height

225mm

COO (Country of Origin):
JP
The SMC micro-mist separator combined with a prefilter. The AMH can separate and eliminate aerosol state oil mist in compressed air and remove carbon or dust of more than 0.01micron. The AMH series is suitable for drying, cleaning pneumatic measurement in

Fluororubber material

Medium air pressure

Drain guide

IN-OUT reversal direction

Degreasing wash

White Vaseline
