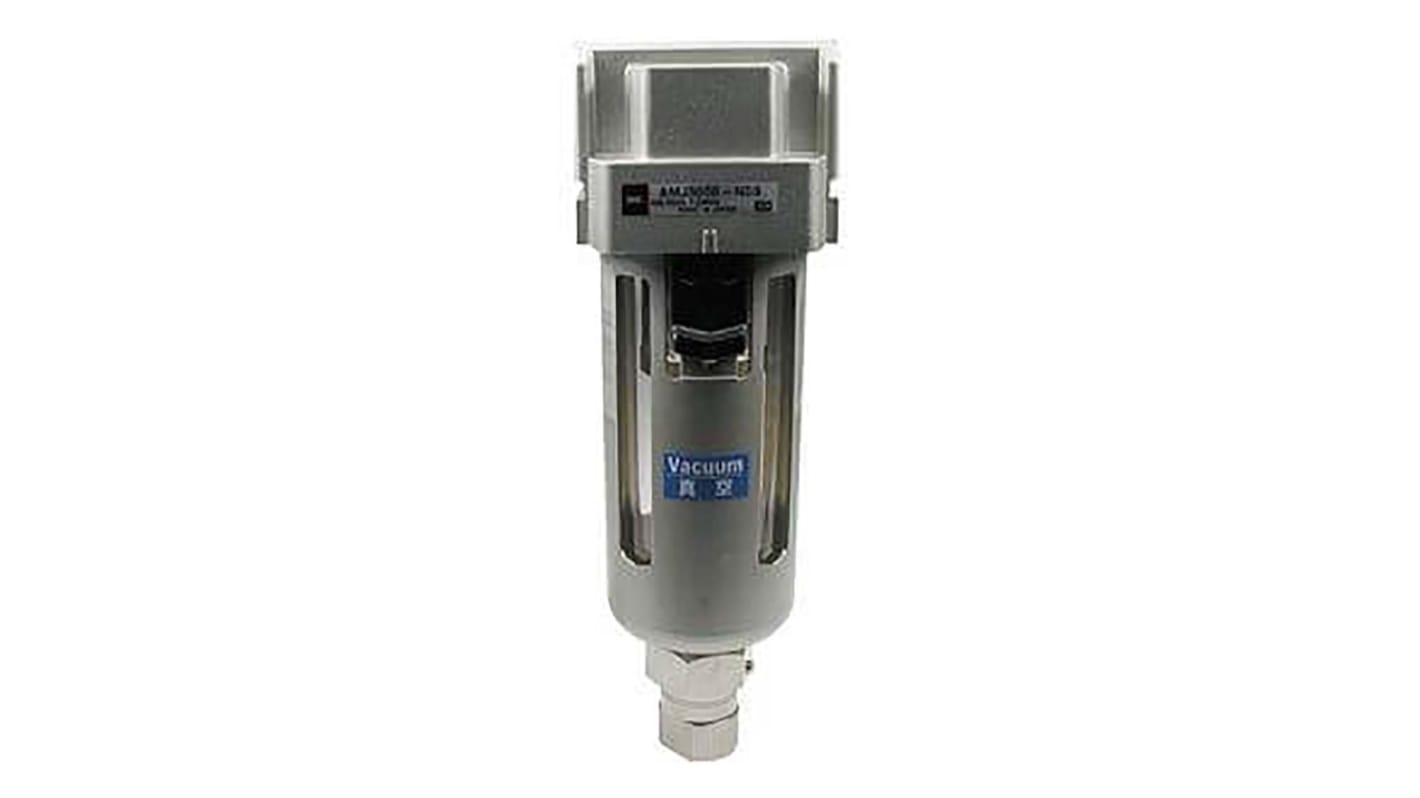

SMC 200 L/min G 1/4 Pneumatic Separator 1 MPa
- RS Stock No.:
- 196-4541
- Mfr. Part No.:
- AMJ3000-F02
- Brand:
- SMC
2 In stock for delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Price Each
£122.61
(exc. VAT)
£147.13
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £122.61 |
- RS Stock No.:
- 196-4541
- Mfr. Part No.:
- AMJ3000-F02
- Brand:
- SMC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Series AMJ is effective for removing water droplets from the air sucked into vacuum pumps and ejectors. Over 90% of droplets can be removed through the use of a special water droplet removing element. The provision of a drain cock makes it possible to discharge the drain manually after breaking the vacuum. Even when the element is saturated with water, there is almost no drop in pressure (increase in resistance).
Specifications
Attribute | Value |
|---|---|
| Port Connection | G 1/4 |
| Typical Flow | 200 L/min |
| Manufacturer Series | AMJ |
| Port Connection Thread Size | 1/4 in |
| Minimum Operating Temperature | +5°C |
| Maximum Operating Temperature | +60°C |
| Maximum Operating Pressure | 1 MPa |
| Port Connection Thread Standard | G |
