SMC 3700 L/min 1/4 in G Pneumatic Separator, 0.01 μm filtration, 0.5 bar to 10 bar
- RS Stock No.:
- 395-368
- Mfr. Part No.:
- AMD20-F02-D
- Brand:
- SMC
Subtotal (1 unit)*
£55.56
(exc. VAT)
£66.67
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from 01 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £55.56 |
*price indicative
- RS Stock No.:
- 395-368
- Mfr. Part No.:
- AMD20-F02-D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Separator | |
| Port Size | 1/4 in G | |
| Maximum Flow Rate | 3700L/min | |
| Connection Thread Standard | G | |
| Filtration Size | 0.01μm | |
| Series | AMD | |
| Maximum Operating Pressure | 10 bar | |
| Minimum Operating Pressure | 0.5bar | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Overall Height | 323.3mm | |
| Overall Width | 64.3mm | |
| Bowl Material | Stainless Steel | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Separator | ||
Port Size 1/4 in G | ||
Maximum Flow Rate 3700L/min | ||
Connection Thread Standard G | ||
Filtration Size 0.01μm | ||
Series AMD | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Pressure 0.5bar | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Overall Height 323.3mm | ||
Overall Width 64.3mm | ||
Bowl Material Stainless Steel | ||
- COO (Country of Origin):
- JP

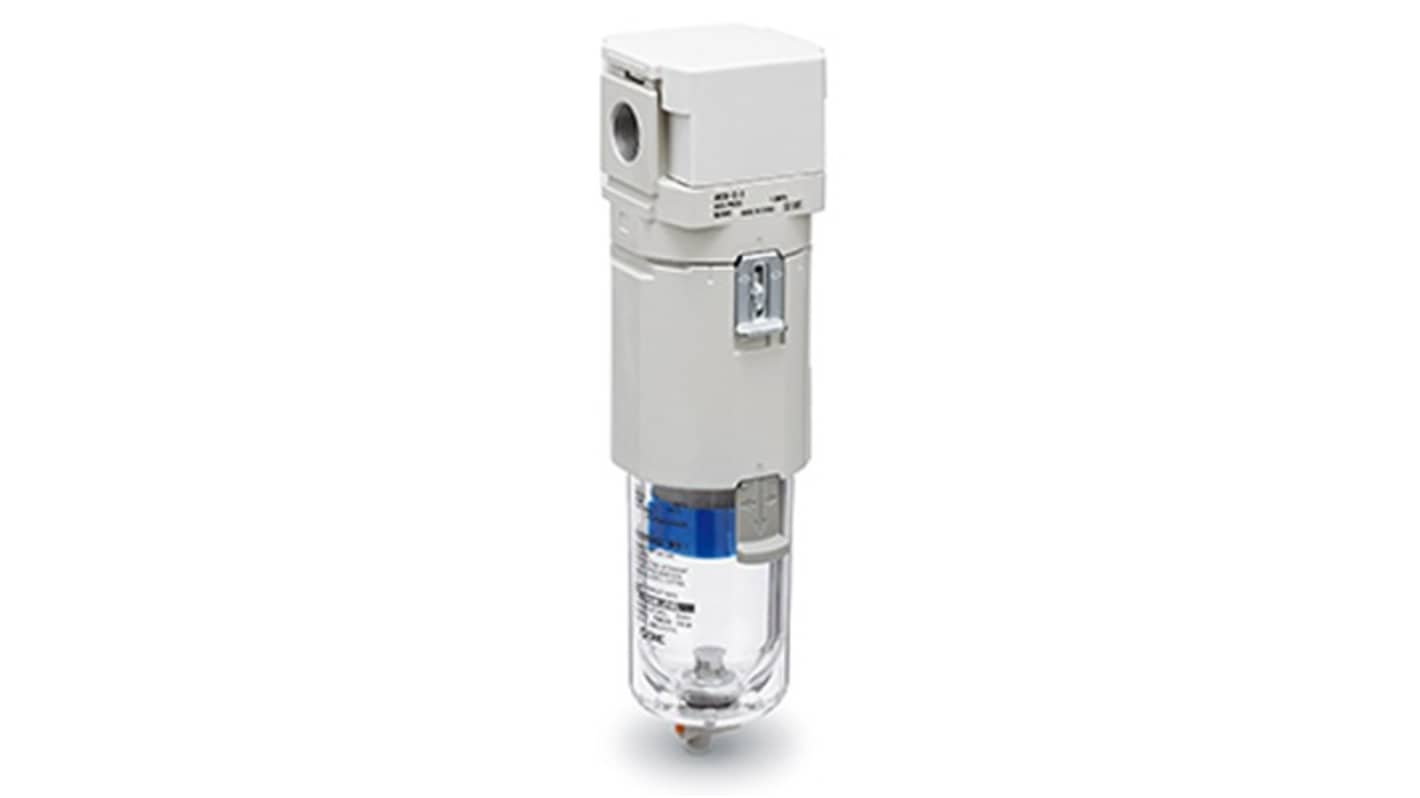

The SMC Micro Mist Separator designed to remove fine oil mist and particles from compressed air systems. It ensures high air purity and protects downstream equipment, making it ideal for industrial applications.
Durable construction for long-lasting performance
Transparent bowl guard for easy maintenance
Suitable for various pneumatic systems
