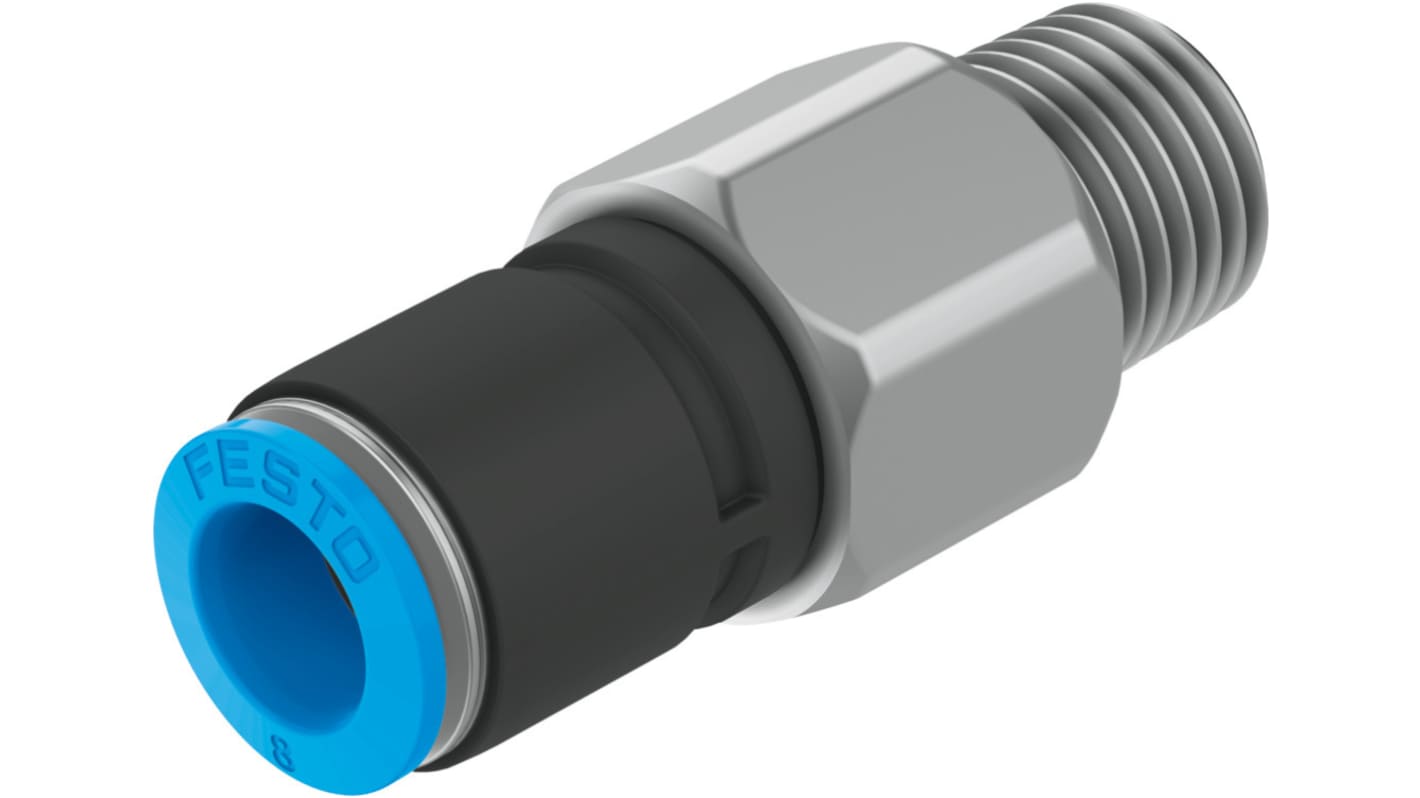

Festo QSR PBT Pneumatic Rotary Union, R 1/8 Male, Push In 8mm
- RS Stock No.:
- 202-2876
- Mfr. Part No.:
- QSR-1/8-8
- Brand:
- Festo
Subtotal (1 unit)*
£25.73
(exc. VAT)
£30.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £25.73 |
*price indicative
- RS Stock No.:
- 202-2876
- Mfr. Part No.:
- QSR-1/8-8
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Tube Connection | Push In 8mm | |
Tube Connection - Tube Size | 8mm | |
Threaded Connection | R 1/8 Male | |
Manufacturer Series | QSR | |
Material | PBT | |
Tube Connection - Type | Push In | |
Select all | ||
---|---|---|
Brand Festo | ||
Tube Connection Push In 8mm | ||
Tube Connection - Tube Size 8mm | ||
Threaded Connection R 1/8 Male | ||
Manufacturer Series QSR | ||
Material PBT | ||
Tube Connection - Type Push In | ||
- COO (Country of Origin):
- JP
Festo QSR Series Pneumatic Rotary Union, 8mm Tube Connection, R 1/8 Male Thread - QSR-1/8-8, Numeric Part Number: 153404
This pneumatic rotary union is designed for reliable and efficient operation in various industrial applications. With a maximum operating pressure of 14 bar and the capability to rotate at speeds up to 400rpm, it is suitable for use with compressed air and adheres to high-performance standards. Constructed from durable PBT, it features an 8mm push-in connector and an R 1/8 male threaded union, making it versatile for different configurations.
Features & Benefits
• Rotatable push-in fitting allows for flexible installation
• High operating pressure of 14 bar meets rigorous demands
• Suitable for applications requiring up to 400rpm rotational speed
• Low corrosion stress rating enhances durability and longevity
• Lubricated operation is possible for improved performance
• RoHS compliant construction ensures environmental safety
• High operating pressure of 14 bar meets rigorous demands
• Suitable for applications requiring up to 400rpm rotational speed
• Low corrosion stress rating enhances durability and longevity
• Lubricated operation is possible for improved performance
• RoHS compliant construction ensures environmental safety
Applications
• Used in automated machinery for seamless operation
• Suitable for pneumatic systems requiring rotary motion
• Ideal for integration with 8mm tubing in various setups
• Effective in industries where high-pressure air is essential
• Suitable for pneumatic systems requiring rotary motion
• Ideal for integration with 8mm tubing in various setups
• Effective in industries where high-pressure air is essential
What materials are used in the construction of this product?
The union features a PBT housing, a nickel-plated brass screwed plug, a blue POM release ring, and a high-alloy stainless steel tubing clamp, ensuring both durability and compatibility with aggressive working environments.
How does the design support various mounting positions?
The product allows optional mounting positions, thanks to its straightforward straight design, which provides flexibility in setup and installation to suit different user requirements.
What is the significance of the maximum radial torque rating?
With a maximum radial torque of 0.015 Nm, it aids in ensuring the secure attachment of connecting components, reducing the likelihood of misalignment or leaks during operation.
