Festo DFPD Series 8 bar Single Action Rotary Actuator, 90° Rotary Angle, 480mm Bore
- RS Stock No.:
- 273-7021
- Mfr. Part No.:
- DFPD-480-RP-90-RS60-F1012
- Brand:
- Festo
Subtotal (1 unit)*
£703.46
(exc. VAT)
£844.15
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 21 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £703.46 |
*price indicative
- RS Stock No.:
- 273-7021
- Mfr. Part No.:
- DFPD-480-RP-90-RS60-F1012
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Rotary Angle | 90° | |
Action | Single | |
Bore | 480mm | |
Manufacturer Series | DFPD | |
Maximum Operating Pressure | 8 bar | |
Absolute Maximum Pressure | 24bar | |
Cushioning Type | Not Cushioned | |
Port Connection | G 1/4 | |
Weight | 18.5kg | |
Series | DFPD | |
Model Number | 8048142 | |
Size Type | Standard | |
Select all | ||
---|---|---|
Brand Festo | ||
Rotary Angle 90° | ||
Action Single | ||
Bore 480mm | ||
Manufacturer Series DFPD | ||
Maximum Operating Pressure 8 bar | ||
Absolute Maximum Pressure 24bar | ||
Cushioning Type Not Cushioned | ||
Port Connection G 1/4 | ||
Weight 18.5kg | ||
Series DFPD | ||
Model Number 8048142 | ||
Size Type Standard | ||
- COO (Country of Origin):
- IT

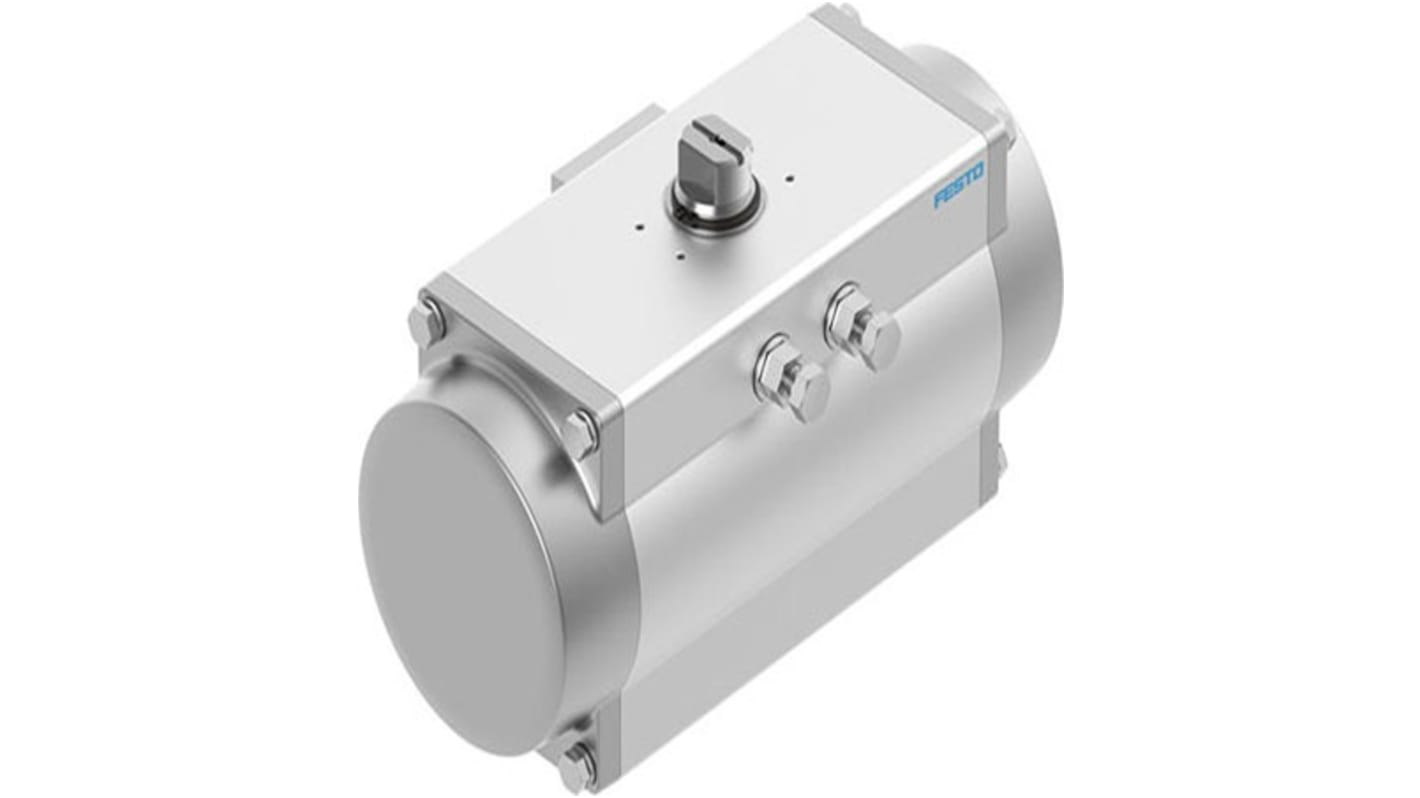

Festo DFPD Series Rotary Actuator, 90° Rotary Angle, 480mm Bore - DFPD-480-RP-90-RS60-F1012, Numeric Part Number: 8048142
This rotary actuator features a 90° swivel angle with an impressive bore of 480mm. Designed for single-acting operation, it excels in applications requiring reliable performance under varying conditions. The actuator operates effectively at pressures ranging from 2 bar to 8 bar, ensuring versatility across multiple environments.
Features & Benefits
• Maximum torque of 347.1 Nm at nominal pressure
• Adjustable end positions for precise operation
• User-friendly design with optional mounting positions
• Robust build with corrosion-resistant materials
• Suitable for use in explosion protection zones
• Adjustable end positions for precise operation
• User-friendly design with optional mounting positions
• Robust build with corrosion-resistant materials
• Suitable for use in explosion protection zones
Applications
• Ideal for automation in industrial settings
• Used with pneumatic systems requiring precise control
• Suitable for in explosion-sensitive environments
• Effective in mechanical assemblies requiring reliable force
• Suitable to integrate into fluid control systems
• Used with pneumatic systems requiring precise control
• Suitable for in explosion-sensitive environments
• Effective in mechanical assemblies requiring reliable force
• Suitable to integrate into fluid control systems
What operating conditions can be managed effectively?
It operates efficiently under pressures from 0.2 MPa to 0.8 MPa, suitable for various applications requiring pneumatic control.
How does this equipment ensure safety in critical operations?
In the event of compressed air loss, the actuator leverages a spring return mechanism to reach a defined safety position, enhancing operational reliability.
What types of materials are utilised in its construction?
The actuator is built with anodised aluminium, NBR seals, and stainless steel screws, ensuring durability and compliance with industry standards.
