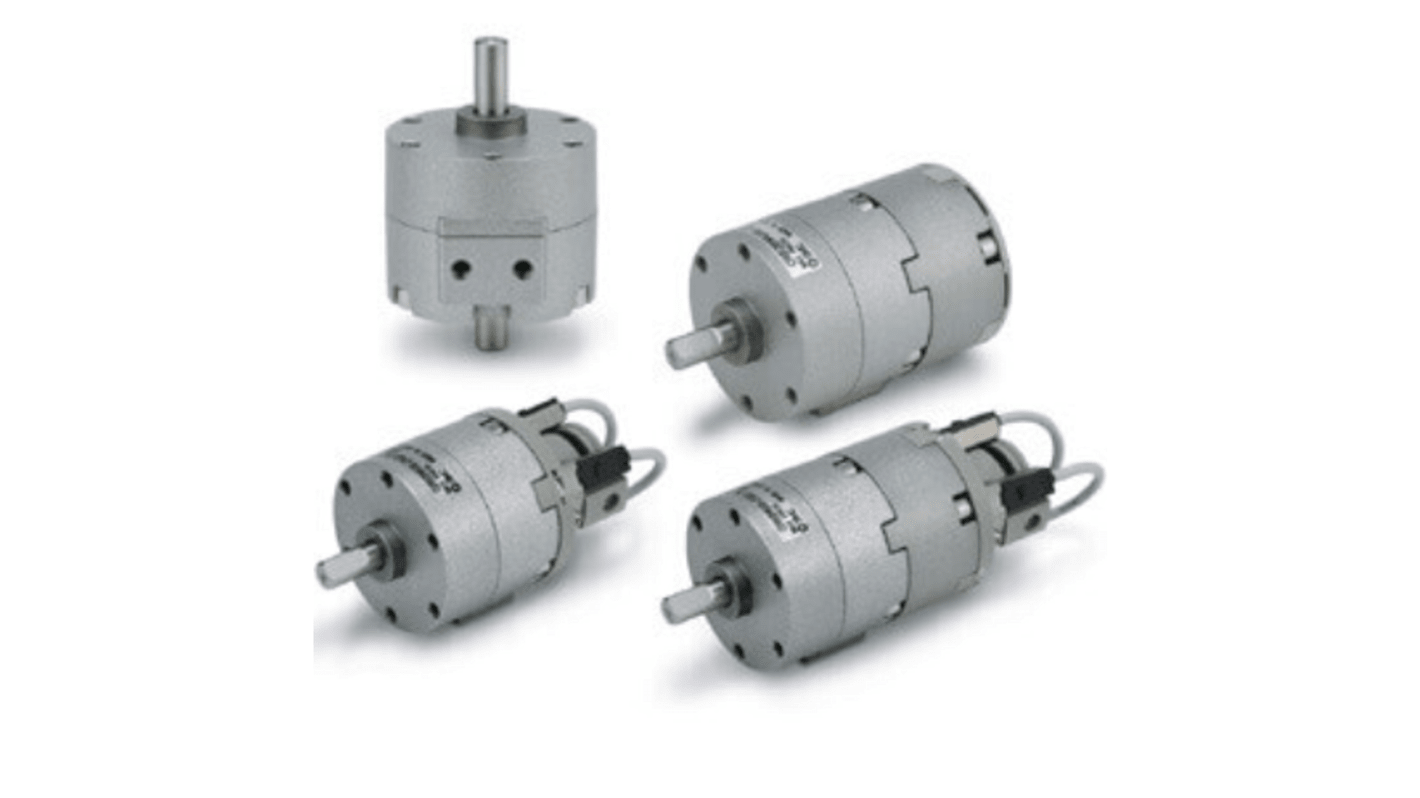

SMC CRB2 Series 10 bar Single Action Rotary Actuator, 270° Rotary Angle, 30mm Bore
- RS Stock No.:
- 254-6161
- Mfr. Part No.:
- CDRB2BWU30-270SZ
- Brand:
- SMC
Subtotal (1 unit)*
£224.09
(exc. VAT)
£268.91
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £224.09 |
*price indicative
- RS Stock No.:
- 254-6161
- Mfr. Part No.:
- CDRB2BWU30-270SZ
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Rotary Angle | 270° | |
Action | Single | |
Bore | 30mm | |
Manufacturer Series | CRB2 | |
Maximum Input Pressure | 10bar | |
Maximum Operating Pressure | 10 bar | |
Select all | ||
---|---|---|
Brand SMC | ||
Rotary Angle 270° | ||
Action Single | ||
Bore 30mm | ||
Manufacturer Series CRB2 | ||
Maximum Input Pressure 10bar | ||
Maximum Operating Pressure 10 bar | ||
- COO (Country of Origin):
- JP
The SMC rotary actuator is available in 10, 15, 20, 30 and 40 bore. The single vane style use specially designed seals and stoppers which enable this compact type actuator to rotate up to 270 degrees. Double vane type is standardized for 90 and 100 degree
Two shaft options available
Port locations modified
RoHS compliant
Mounting position of the auto switch can be set freely
Port locations modified
RoHS compliant
Mounting position of the auto switch can be set freely
