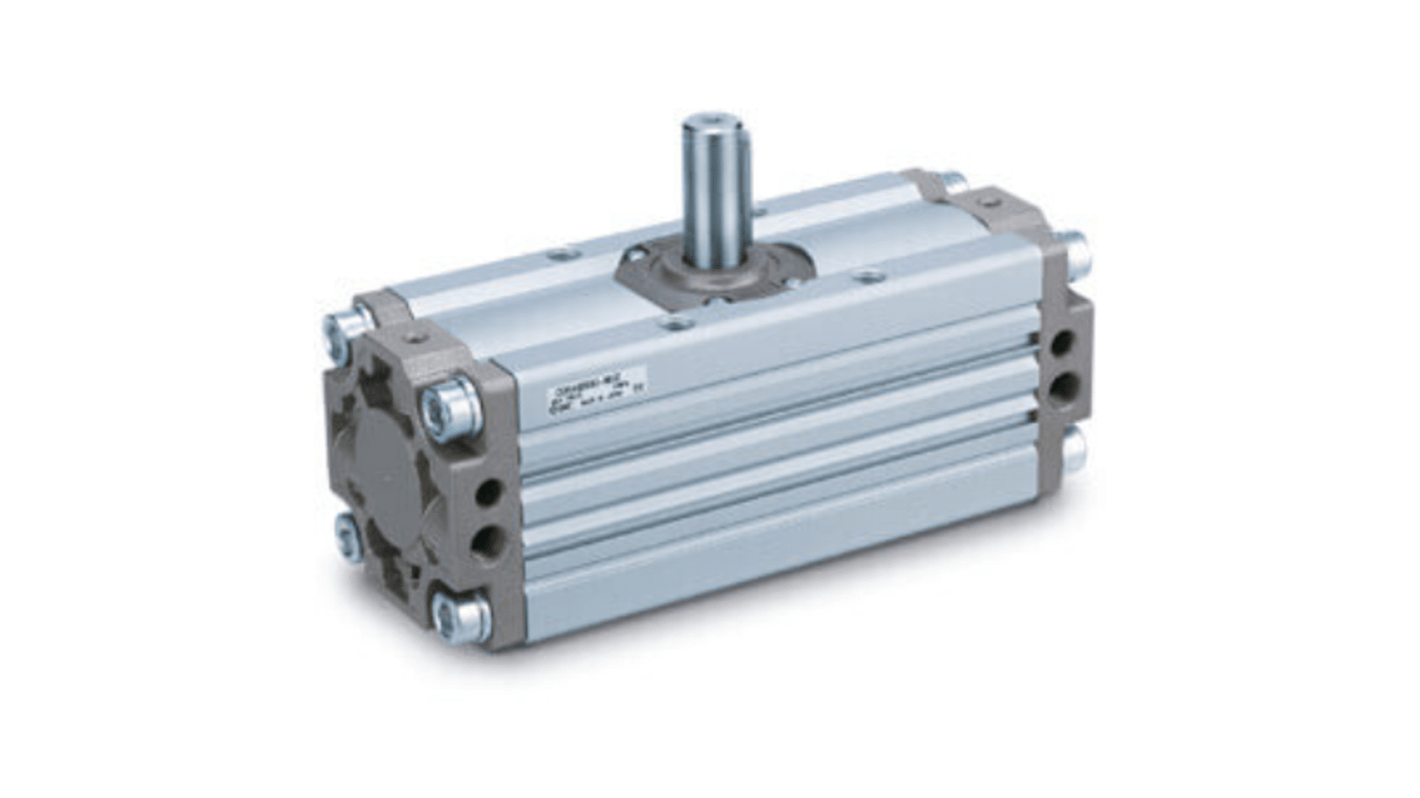

SMC CRA1 Series 10 bar Single Action Rotary Actuator, 180° Rotary Angle, 63mm Bore
- RS Stock No.:
- 254-6157
- Mfr. Part No.:
- CDRA1BW63TF-180Z
- Brand:
- SMC
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 254-6157
- Mfr. Part No.:
- CDRA1BW63TF-180Z
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Rotary Angle | 180° | |
| Action | Single | |
| Bore | 63mm | |
| Manufacturer Series | CRA1 | |
| Maximum Input Pressure | 10bar | |
| Maximum Operating Pressure | 10 bar | |
Select all | ||
|---|---|---|
Brand SMC | ||
Rotary Angle 180° | ||
Action Single | ||
Bore 63mm | ||
Manufacturer Series CRA1 | ||
Maximum Input Pressure 10bar | ||
Maximum Operating Pressure 10 bar | ||
- COO (Country of Origin):
- JP
The SMC rotary actuator offers compact auto switches which can be mounted from the front with width reduction by 14mm. Bore sizes on standard model are 30, 50, 63, 80, and 100mm. Units may be ordered auto-switch capable and with replaceable cushions. Many
Easy adjustment of cushion valve
Cushion seal is replaceable
Cushion seal is replaceable
