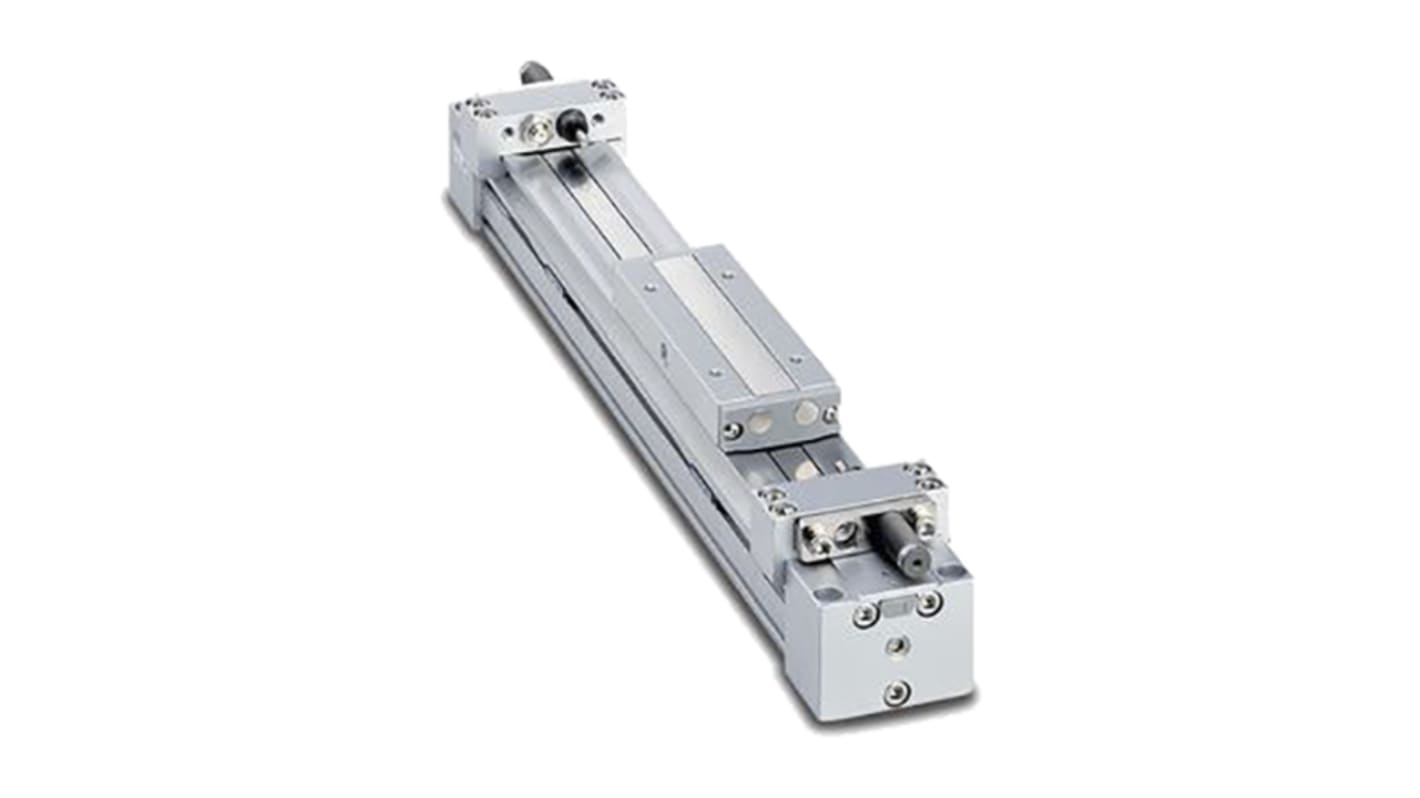

SMC Double Acting Acting Rodless Actuator 25mm Bore 350 mm
- RS Stock No.:
- 885-2272
- Distrelec Article No.:
- 110-93-071
- Mfr. Part No.:
- MY1B25TFG-350Z
- Brand:
- SMC
Subtotal (1 unit)*
£346.55
(exc. VAT)
£415.86
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £346.55 |
*price indicative
- RS Stock No.:
- 885-2272
- Distrelec Article No.:
- 110-93-071
- Mfr. Part No.:
- MY1B25TFG-350Z
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Rodless Actuator | |
| Bore Diameter | 25mm | |
| Stroke Length | 350mm | |
| Connection Thread Standard | BSP | |
| Series | MY1B | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 0.8 Mpa | |
| Body Material | Aluminium Alloy | |
| Mounting Orientation | Horizontal | |
| Cushioning Type | Air Cushion | |
| Port Gender | Female | |
| Guide Type | Basic | |
| Minimum Operating Temperature | 5°C | |
| Maximum Operating Temperature | 60°C | |
| Length | 570mm | |
| Height | 54mm | |
| Standards/Approvals | IEC | |
| Weight | 1.3kg | |
| Width | 53mm | |
| Port Thread Size | Rc 1/4 in | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Rodless Actuator | ||
Bore Diameter 25mm | ||
Stroke Length 350mm | ||
Connection Thread Standard BSP | ||
Series MY1B | ||
Action Type Double Acting | ||
Maximum Operating Pressure 0.8 Mpa | ||
Body Material Aluminium Alloy | ||
Mounting Orientation Horizontal | ||
Cushioning Type Air Cushion | ||
Port Gender Female | ||
Guide Type Basic | ||
Minimum Operating Temperature 5°C | ||
Maximum Operating Temperature 60°C | ||
Length 570mm | ||
Height 54mm | ||
Standards/Approvals IEC | ||
Weight 1.3kg | ||
Width 53mm | ||
Port Thread Size Rc 1/4 in | ||
Non Compliant
- COO (Country of Origin):
- GB
MY1 Series Rodless Guided Cylinder
The MY1 series rodless actuators are ideally suited for applications requiring long strokes with a compact size and integrated guide. The series includes four standard models and users can match the applications specific accuracy and load requirements with the appropriate bearing style. They are available in various bore sizes ranging from 16 to 100mm. Standard stroke lengths are available op to 2000mm with a 5000mm long stroke length option on some bore sizes.
Mechanical joint rodless cylinder
Bore sizes: 16, 20, 25, 32, 40, 50, 63, 80 and 100
Strokes from 100mm through 5000mm depending upon bore size
With one or two stroke adjusters with or without shocks
Variety of switches and lead wire lengths
SMC MY Series Rodless Cylinders
