Norgren Double Acting Acting Rodless Actuator 25 mm Bore 800 mm
- RS Stock No.:
- 220-3753
- Mfr. Part No.:
- M/146125/M/800
- Brand:
- Norgren
Subtotal (1 unit)*
£704.17
(exc. VAT)
£845.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £704.17 |
*price indicative
- RS Stock No.:
- 220-3753
- Mfr. Part No.:
- M/146125/M/800
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Product Type | Rodless Actuator | |
| Bore Size | 25mm | |
| Connection Thread Standard | G | |
| Stroke Length | 800mm | |
| Series | M/146100 | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 8 bar | |
| Body Material | Aluminium | |
| Cushioning Type | Adjustable | |
| Minimum Operating Temperature | -30°C | |
| Port Gender | Female | |
| Guide Type | External Guide | |
| Maximum Operating Temperature | 80°C | |
| Length | 1m | |
| Height | 67.5mm | |
| Standards/Approvals | ATEX | |
| Width | 52mm | |
| Port Thread Size | 1/8 in G | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Product Type Rodless Actuator | ||
Bore Size 25mm | ||
Connection Thread Standard G | ||
Stroke Length 800mm | ||
Series M/146100 | ||
Action Type Double Acting | ||
Maximum Operating Pressure 8 bar | ||
Body Material Aluminium | ||
Cushioning Type Adjustable | ||
Minimum Operating Temperature -30°C | ||
Port Gender Female | ||
Guide Type External Guide | ||
Maximum Operating Temperature 80°C | ||
Length 1m | ||
Height 67.5mm | ||
Standards/Approvals ATEX | ||
Width 52mm | ||
Port Thread Size 1/8 in G | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

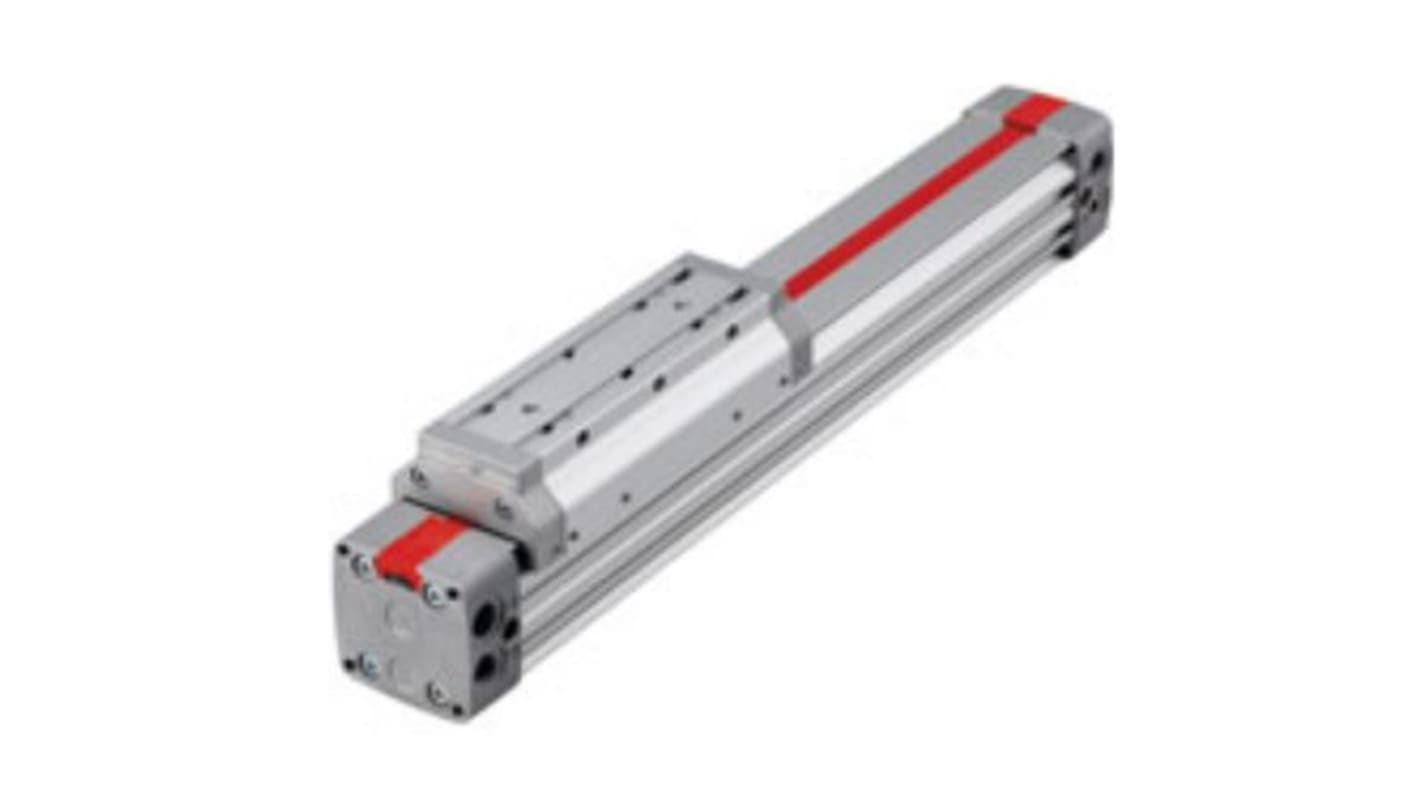

The IMI Norgren rodless cylinder has new lightweight design extrusion with universal mounting grooves. It has proven and patented sealing system.
Dust protection as standard
Interchangeability with series M/46000
