EMERSON – AVENTICS Double Acting Acting Rodless Pneumatic Cylinder 25mm Bore 600 mm
- RS Stock No.:
- 274-187
- Mfr. Part No.:
- R480141459
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£439.21
(exc. VAT)
£527.05
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 23 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £439.21 |
*price indicative
- RS Stock No.:
- 274-187
- Mfr. Part No.:
- R480141459
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? AVENTICS | |
| Product Type | Rodless Pneumatic Cylinder | |
| Bore Diameter | 25mm | |
| Stroke Length | 600mm | |
| Series | RTC-BV | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 8 bar | |
| Cushioning Type | Pneumatic Adjustable | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Length | 20mm | |
| Weight | 820g | |
| Port Thread Size | 1/8 in G | |
| Select all | ||
|---|---|---|
Brand EMERSON ? AVENTICS | ||
Product Type Rodless Pneumatic Cylinder | ||
Bore Diameter 25mm | ||
Stroke Length 600mm | ||
Series RTC-BV | ||
Action Type Double Acting | ||
Maximum Operating Pressure 8 bar | ||
Cushioning Type Pneumatic Adjustable | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Length 20mm | ||
Weight 820g | ||
Port Thread Size 1/8 in G | ||
- COO (Country of Origin):
- HU

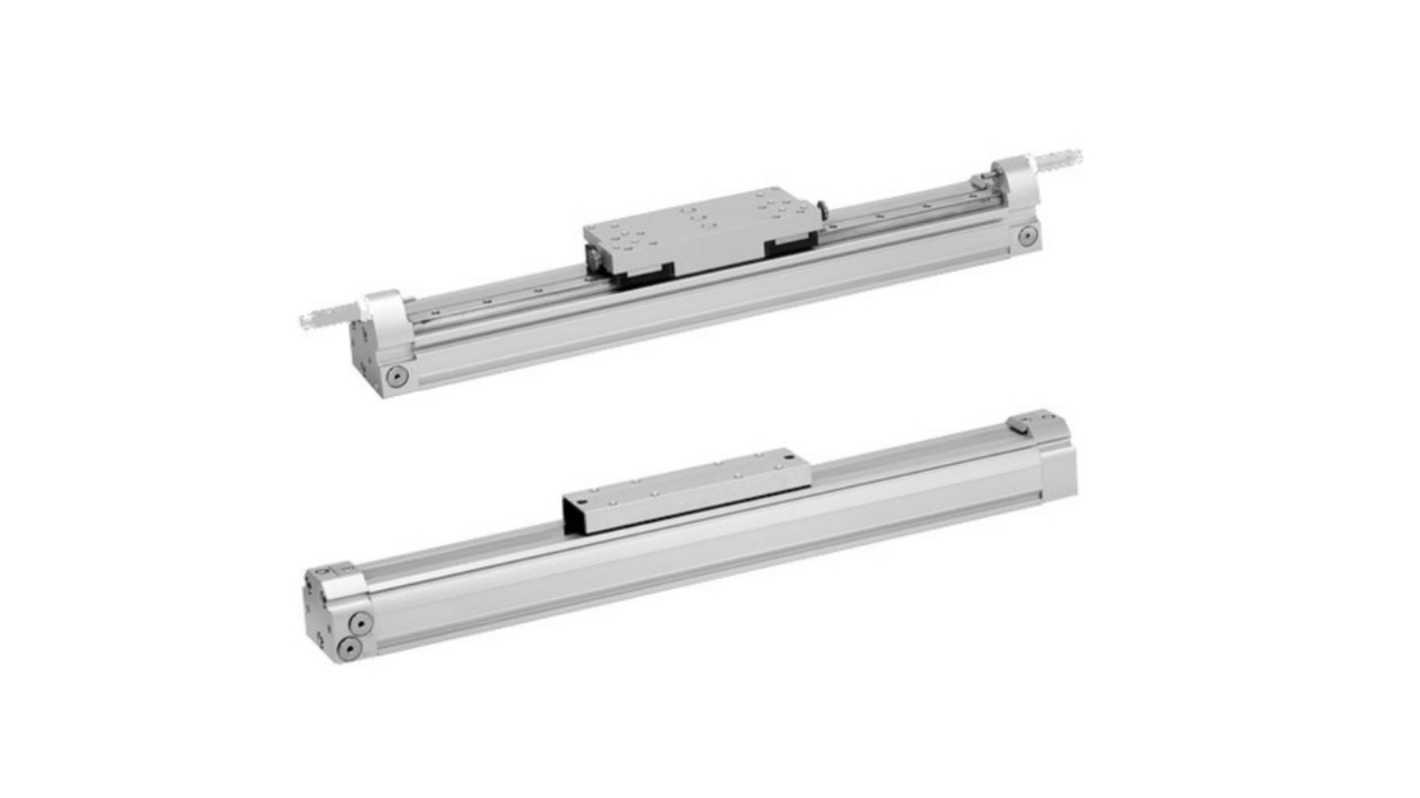

The Aventics RTC-BV Series Rodless cylinders features an oval piston which enables higher loads and torques with highly compact designs. It offers minimal leakage and a wide range of speeds thanks to a special internal sealing strip and grease. Its one piece slide and piston increase stability.
Double acting
With magnetic piston
Integrated guide
Basic version
Cushioning pneumatically adjustable
