SMC G 1/4 Female Pneumatic Regulator -, 1/4in, 1MPa max. input
- RS Stock No.:
- 912-0869
- Mfr. Part No.:
- IR2000-F02
- Brand:
- SMC
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£110.52
(exc. VAT)
£132.62
(inc. VAT)
- RS Stock No.:
- 912-0869
- Mfr. Part No.:
- IR2000-F02
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Port Connection | G 1/4 Female | |
Maximum Input Pressure | 1MPa | |
Manufacturer Series | IR1000 | |
Pressure Gauge Port Size | Rc 1/8 | |
Port Connection Thread Size | 1/4in | |
Maximum Flow Rate | 4.4L/min | |
Port Connection Thread Standard | G | |
Select all | ||
---|---|---|
Brand SMC | ||
Port Connection G 1/4 Female | ||
Maximum Input Pressure 1MPa | ||
Manufacturer Series IR1000 | ||
Pressure Gauge Port Size Rc 1/8 | ||
Port Connection Thread Size 1/4in | ||
Maximum Flow Rate 4.4L/min | ||
Port Connection Thread Standard G | ||
- COO (Country of Origin):
- FR

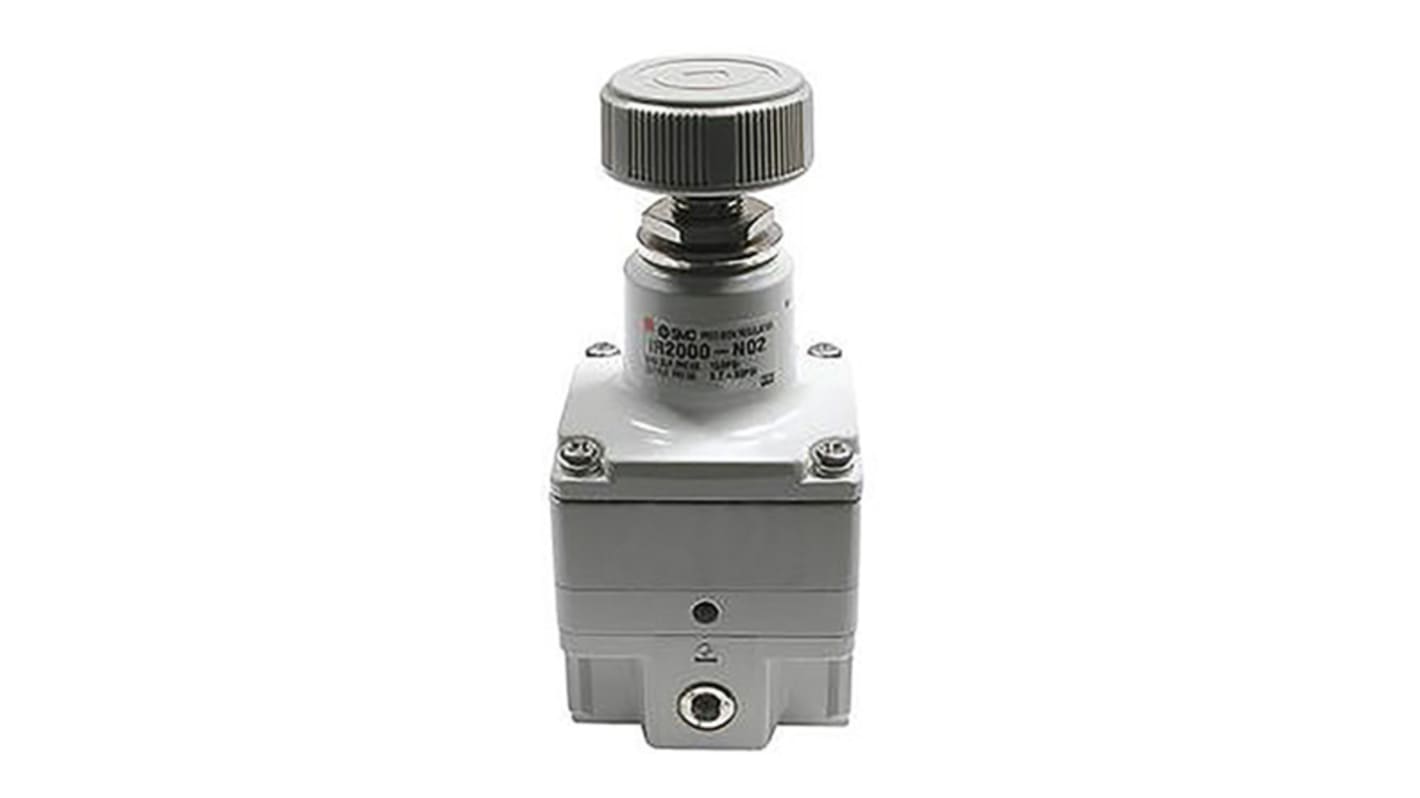

SMC IR2000 Series Pneumatic Regulator, 0.2 MPa Maximum Outlet Pressure, G 1/4 Port Connection - IR2000-F02
This pneumatic regulator is designed for precision control in industrial applications. Featuring a G 1/4 port connection, it allows for easy integration into existing systems. This model operates within a pressure range of 0.005 to 0.2 MPa, making it essential for managing air pressure in various automation processes. Constructed to endure conditions with a minimum operating temperature of -5 °C and a maximum of +60 °C, it is suitable for diverse working environments.
Features & Benefits
• Compact and lightweight design facilitates easy installation
• Regulates output pressure between 0.005 to 0.2 MPa for accuracy
• Maximum flow rate of 4.4 L/min optimises pneumatic flow control
• Pressure gauge port size of 1/8 in allows easy monitoring
• Reliable operation without an integral check valve to minimise maintenance
• Adjustable air pressure capabilities for custom applications
• Regulates output pressure between 0.005 to 0.2 MPa for accuracy
• Maximum flow rate of 4.4 L/min optimises pneumatic flow control
• Pressure gauge port size of 1/8 in allows easy monitoring
• Reliable operation without an integral check valve to minimise maintenance
• Adjustable air pressure capabilities for custom applications
Applications
• Utilised in automation systems for pressure regulation
• Integrated into pneumatic machinery for consistent operation
• Suitable for air control in manufacturing processes
• Employed in testing and laboratory environments for accurate measurements
• Helps maintain stable pressure levels in air-driven components
• Integrated into pneumatic machinery for consistent operation
• Suitable for air control in manufacturing processes
• Employed in testing and laboratory environments for accurate measurements
• Helps maintain stable pressure levels in air-driven components
What is the maximum input pressure tolerated by this device?
The device can withstand a maximum input pressure of 1 MPa, ensuring it operates effectively under various conditions.
How does this device enhance performance in pneumatic systems?
It offers precise regulation of air pressure, which helps maintain consistent performance and reliability in pneumatic systems, reducing the risk of pressure fluctuations.
Can this regulator operate in extreme temperatures?
Yes, it is designed to function in a temperature range between -5 °C and +60 °C, making it suitable for various environments without compromising functionality.
What maintenance is required for effective operation?
Minimal maintenance is needed due to its robust design
however, regular checks on the pressure gauge and connections are advised to ensure optimal performance.
