Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Port Connection	G 1/2
	Maximum Outlet Pressure	0.85MPa
	Minimum Outlet Pressure	0.05MPa
	Maximum Input Pressure	1MPa
	Pressure Gauge Port Size	Rc 1/8
	Port Connection Thread Size	1/2
	Pressure Gauge Port Thread Size	1/8in
	Maximum Flow Rate	20L/min
	Integral Check Valve	Without Check Valve
	Port Connection Thread Standard	G
	Minimum Operating Temperature	-5°C
	Maximum Operating Temperature	+60°C
	Overall Width	70mm
	Pressure Gauge Port Thread Standard	Rc
	Overall Height	128mm
	Proof Pressure	1.5MPa

	Select all
	Brand SMC
	Port Connection G 1/2
	Maximum Outlet Pressure 0.85MPa
	Minimum Outlet Pressure 0.05MPa
	Maximum Input Pressure 1MPa
	Pressure Gauge Port Size Rc 1/8
	Port Connection Thread Size 1/2
	Pressure Gauge Port Thread Size 1/8in
	Maximum Flow Rate 20L/min
	Integral Check Valve Without Check Valve
	Port Connection Thread Standard G
	Minimum Operating Temperature -5°C
	Maximum Operating Temperature +60°C
	Overall Width 70mm
	Pressure Gauge Port Thread Standard Rc
	Overall Height 128mm
	Proof Pressure 1.5MPa

Non Compliant

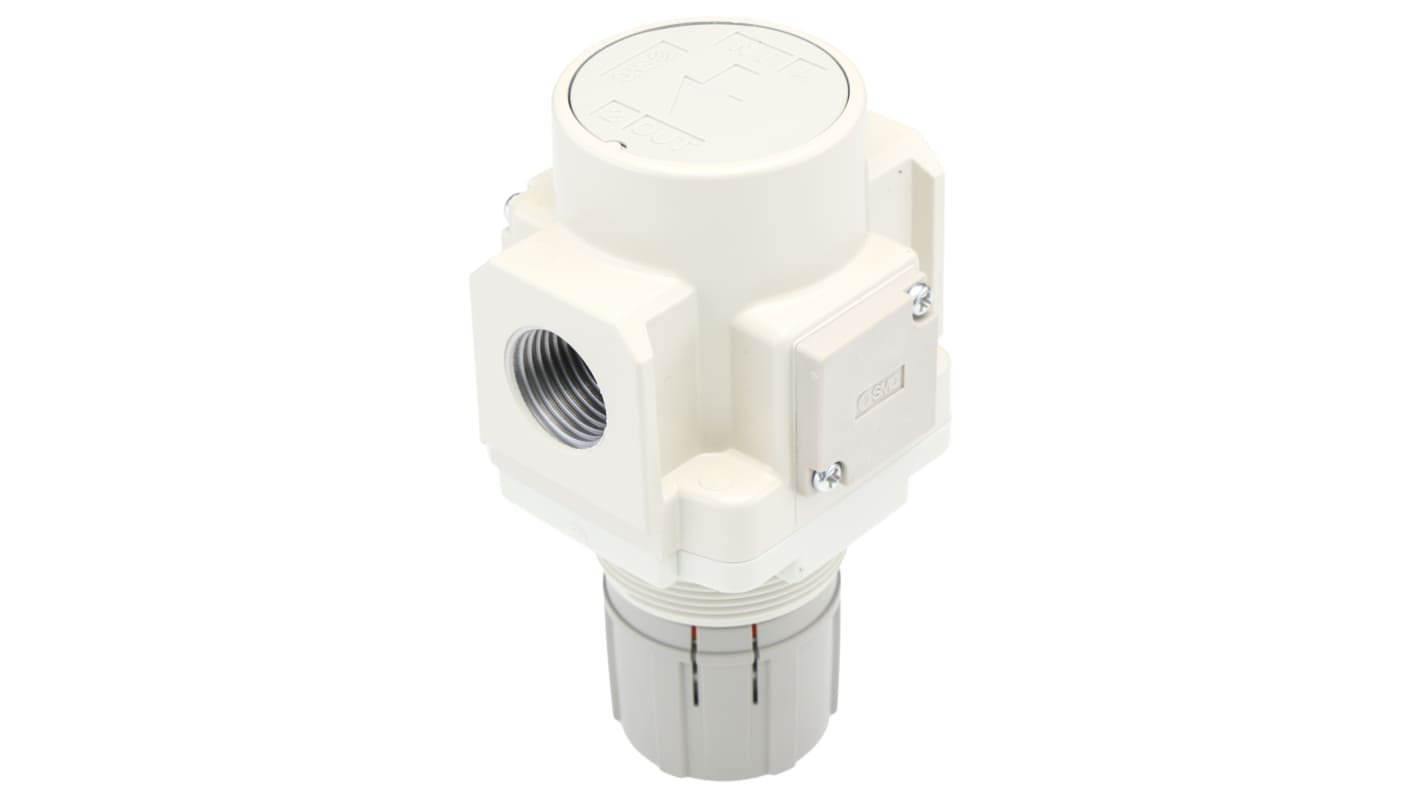

SMC AR40 Series Pneumatic Regulator, 0.85 MPa Maximum Outlet Pressure, G 1/2 Port Connection - AR40-F04-B

This pneumatic regulator is designed for precise control in various pneumatic control systems. With a robust G 1/2 port connection, this product efficiently manages air pressure within a regulated air pressure system. It features dimensions that provide seamless integration into existing setups, ensuring optimal performance across applications.

Features & Benefits

• Regulates outlet pressure between 0.05 to 0.85 MPa for versatile applications
• Maximum flow rate of 20 L/min facilitates efficient operation
• Operates effectively in temperatures ranging from -5 °C to +60 °C
• Designed without an integral check valve for straightforward maintenance
• Compact dimensions allow for easy mounting in confined spaces
• Suitable for high-pressure air systems, enhancing reliability in industrial environments

Applications

• Used with pneumatic tools requiring consistent air pressure
• Ideal for automation systems needing precise pressure regulation
• Effective in electrical and mechanical for optimal performance
• Utilised in pressure-sensitive processes within various manufacturing industries

How does this regulator maintain consistent pressure across varying flow rates?

It efficiently adjusts the outlet pressure in response to changes in the inlet pressure, ensuring stable performance even during fluctuations in demand.

What types of fittings are compatible with this regulator?

It accommodates G 1/2 thread fittings, providing compatibility with standard piping systems in industrial setups.

Can this regulator be integrated into existing pneumatic systems?

Yes, its compact design and standard port connection enable easy integration into various pneumatic control systems for enhanced functionality.

SMC G 1/2 Pneumatic Regulator - 0.05MPa to 0.85MPa, 1/2, 1MPa max. input
